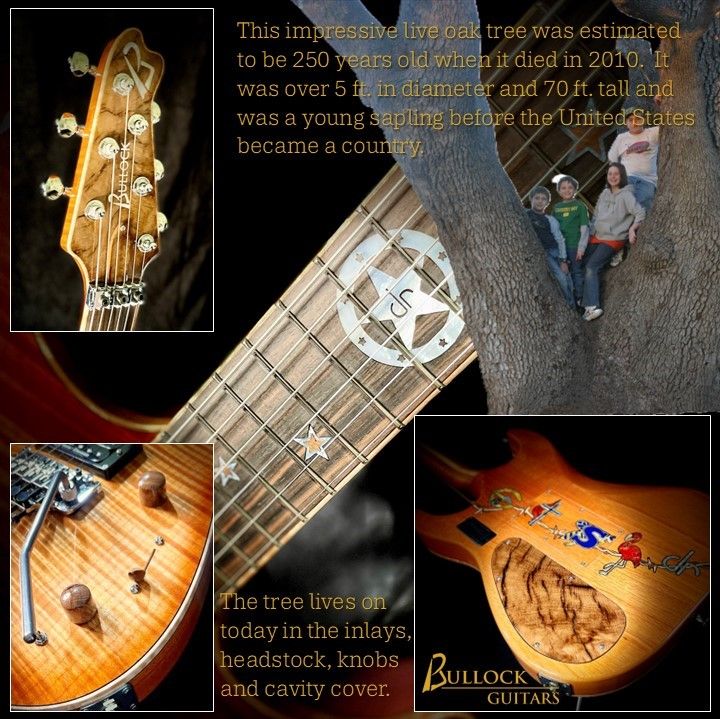

The Wild Oak Rancher
TOP: Master grade flame maple with ebony purfling

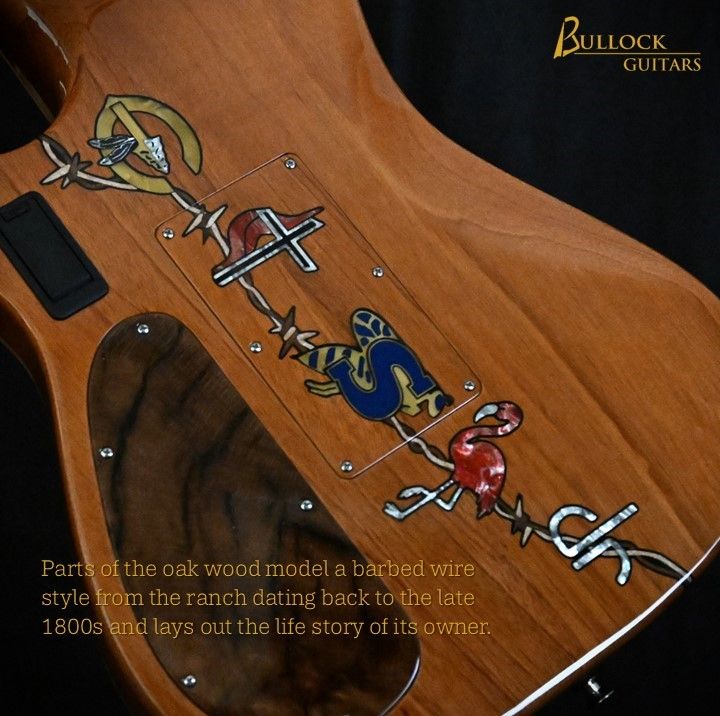

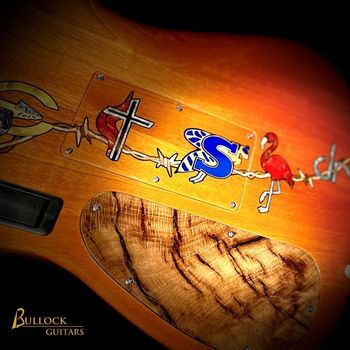

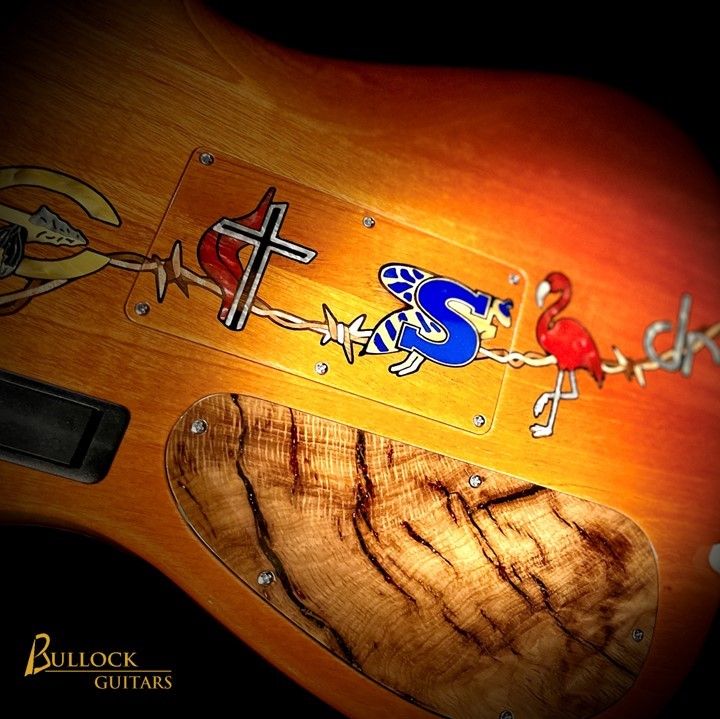

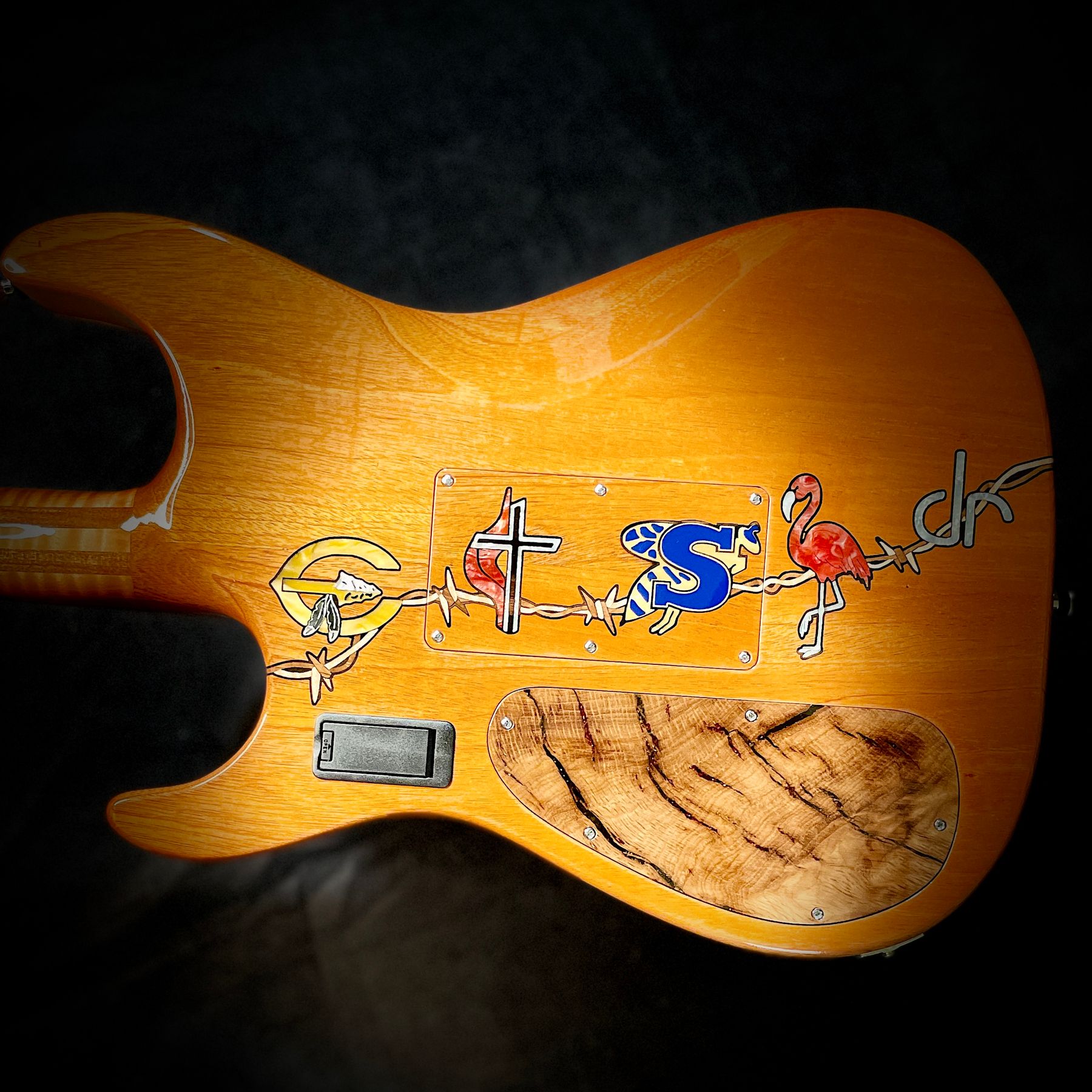

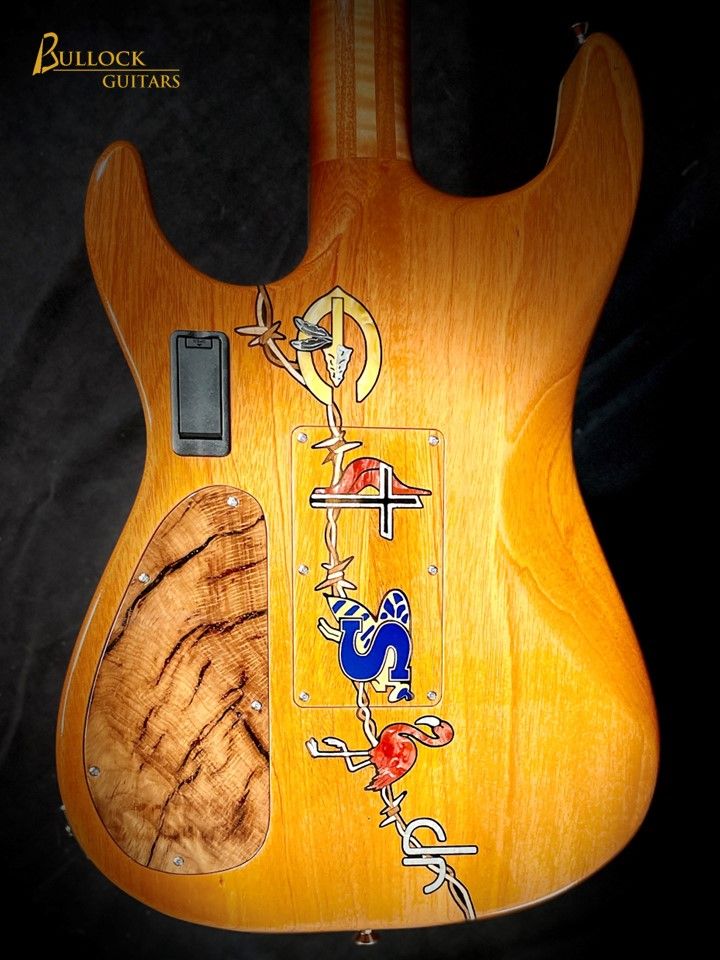

BODY: Honduran mahogany with inlays capturing the player’s story through key life locations. Ranch specific barbed wire ties the imagery together
ACCENTS: Wild oak from a 250+ year-old tree growing on the ranch property used as accents (fretboard stars, head overlay, cavity cover, control knobs and switch tip)

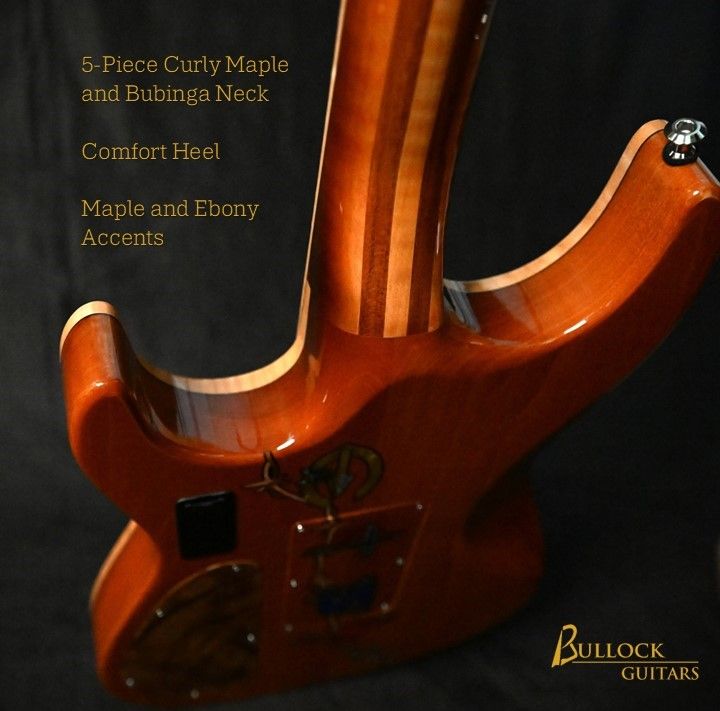

NECK: 5-piece flame-maple and bubinga set-neck. Long tenon extends beneath the neck pickup for comfortable contouring of the neck/body heel for maximum play-ability.
HEAD: Oak overlay with flame maple and ebony binding/purfling. Matching oak truss-cover & MoP logo inlays.
FRETBOARD: Ebony, with curly maple binding

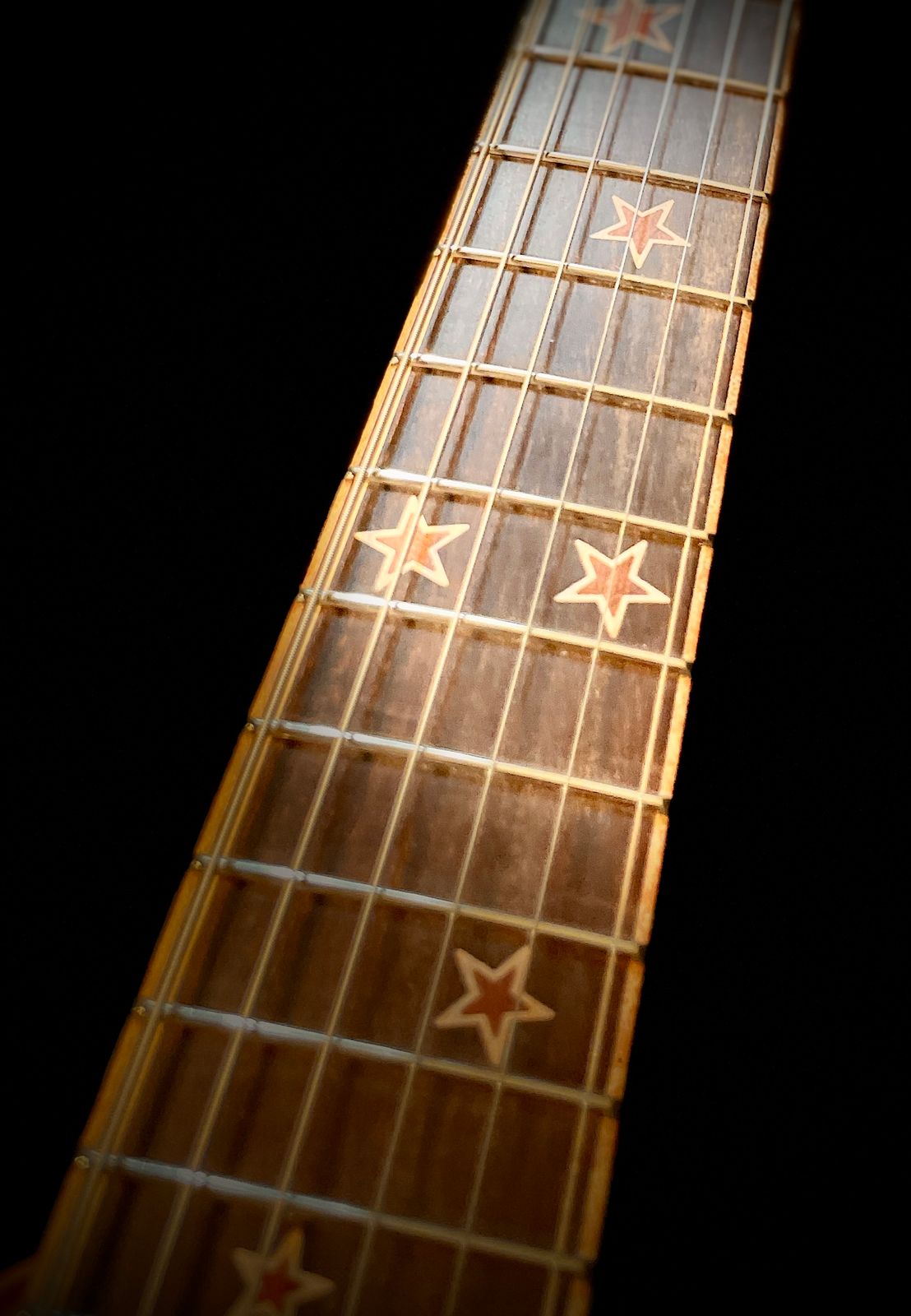

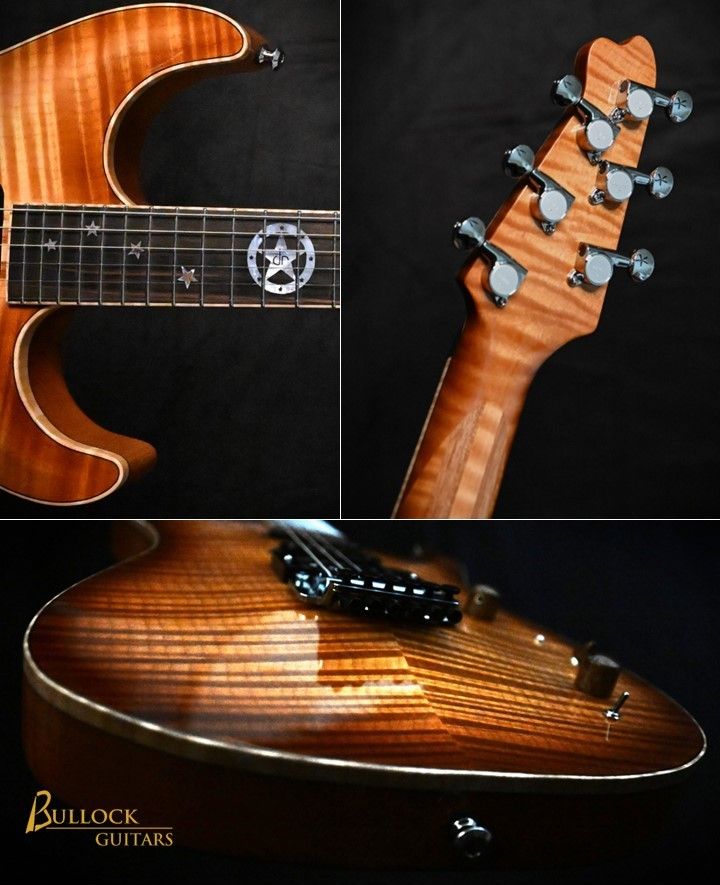

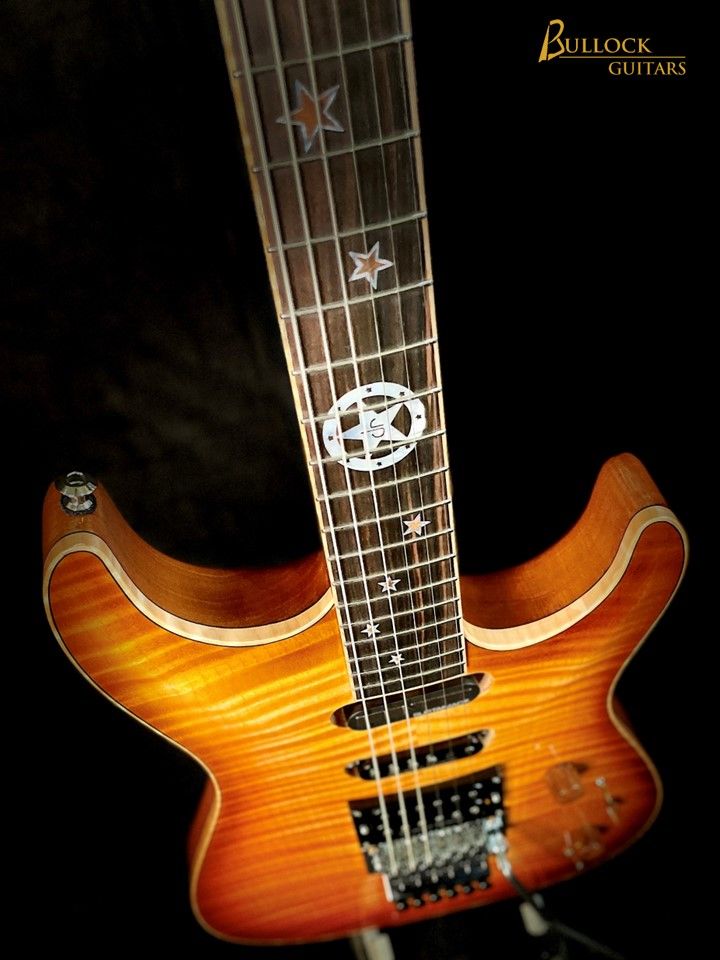

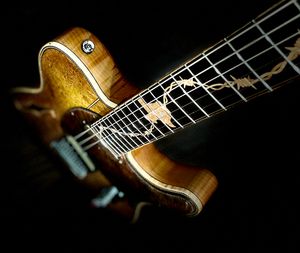

INLAY: Ranch logo at the 12th fret along with a string of shooting stars in live oak and mother-of-pearl
SCALE: 25”
NUT WIDTH: 1.6875”
FRETBOARD RADIUS: 12”
FRETS: 22 Medium Stainless Steel Jescar
BRIDGE: Original Floyd Rose Tremolo
PICKUPS: Seymour Duncan SSL-5 (Middle), and JB (Bridge), active Sustainiac system (Neck)
SWITCH: 5-Way Blade Switch, push-pull in tone for activating the Sustainiac. 3-Way Toggle for Sustainiac mode selection
TUNERS: Gotoh chrome tuners
FINISH: Natural body, honey-amber top with a dark-burst fade to tobacco-brown on the top and neck flame maple woods, Nitrocellulose Gloss Lacquer

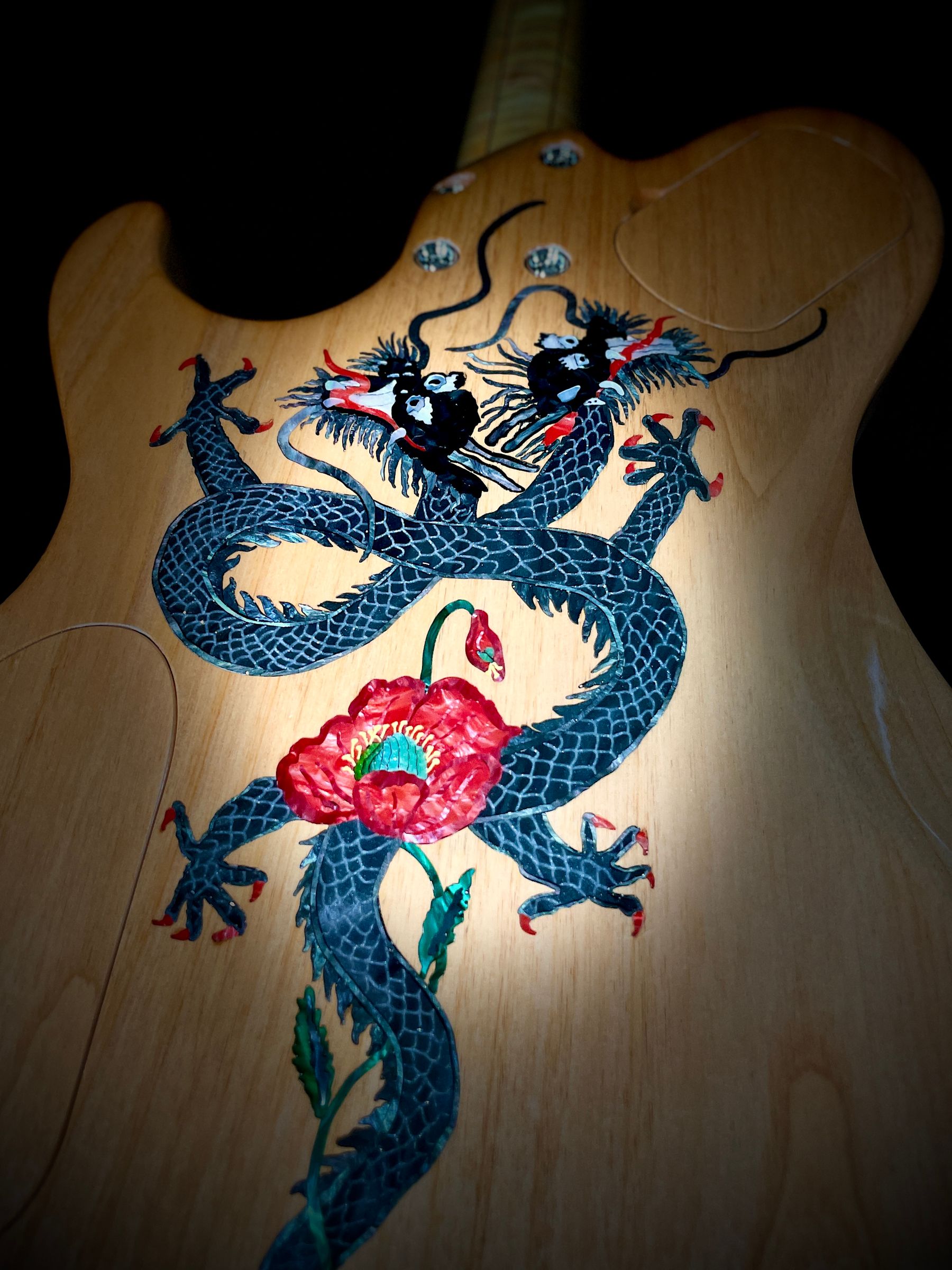

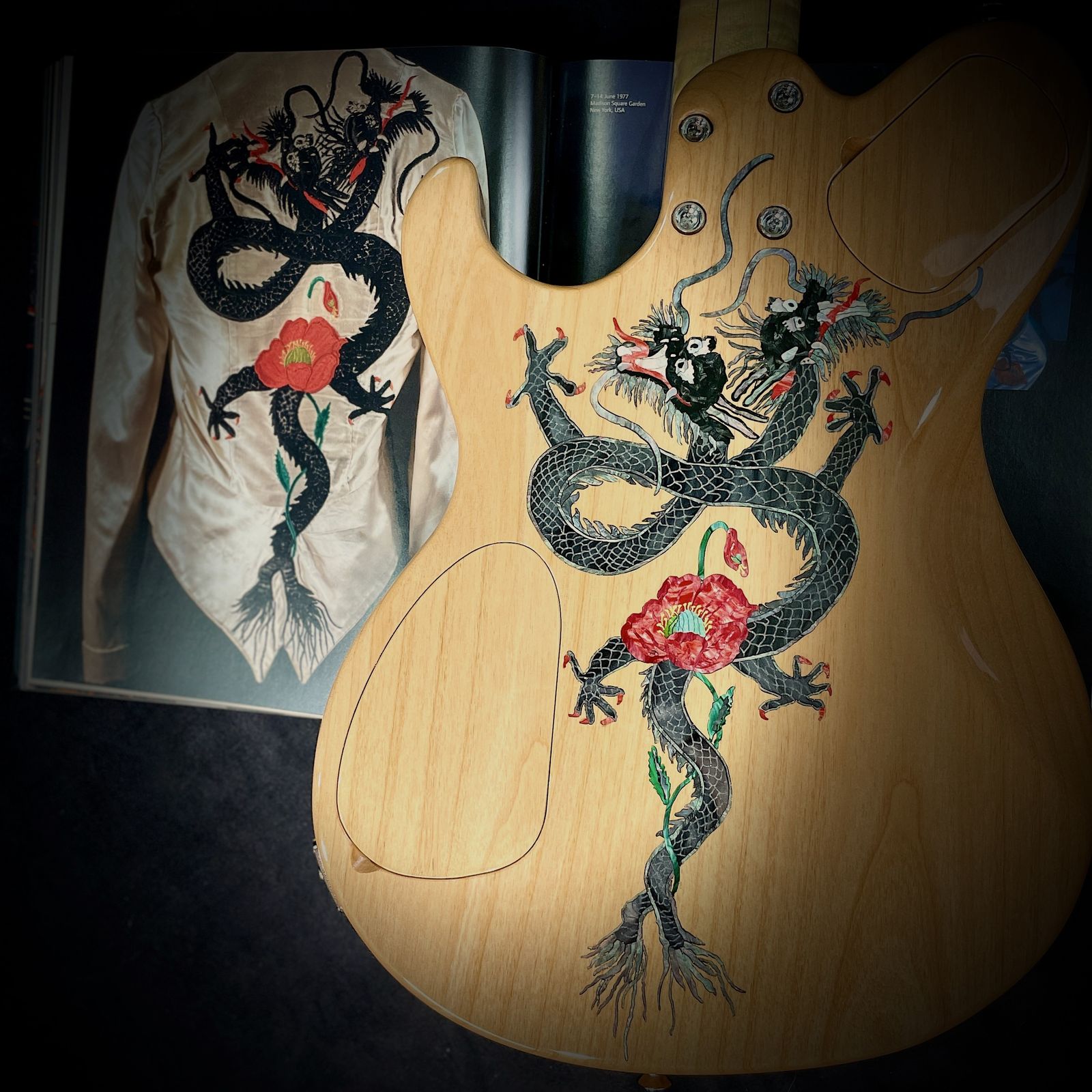

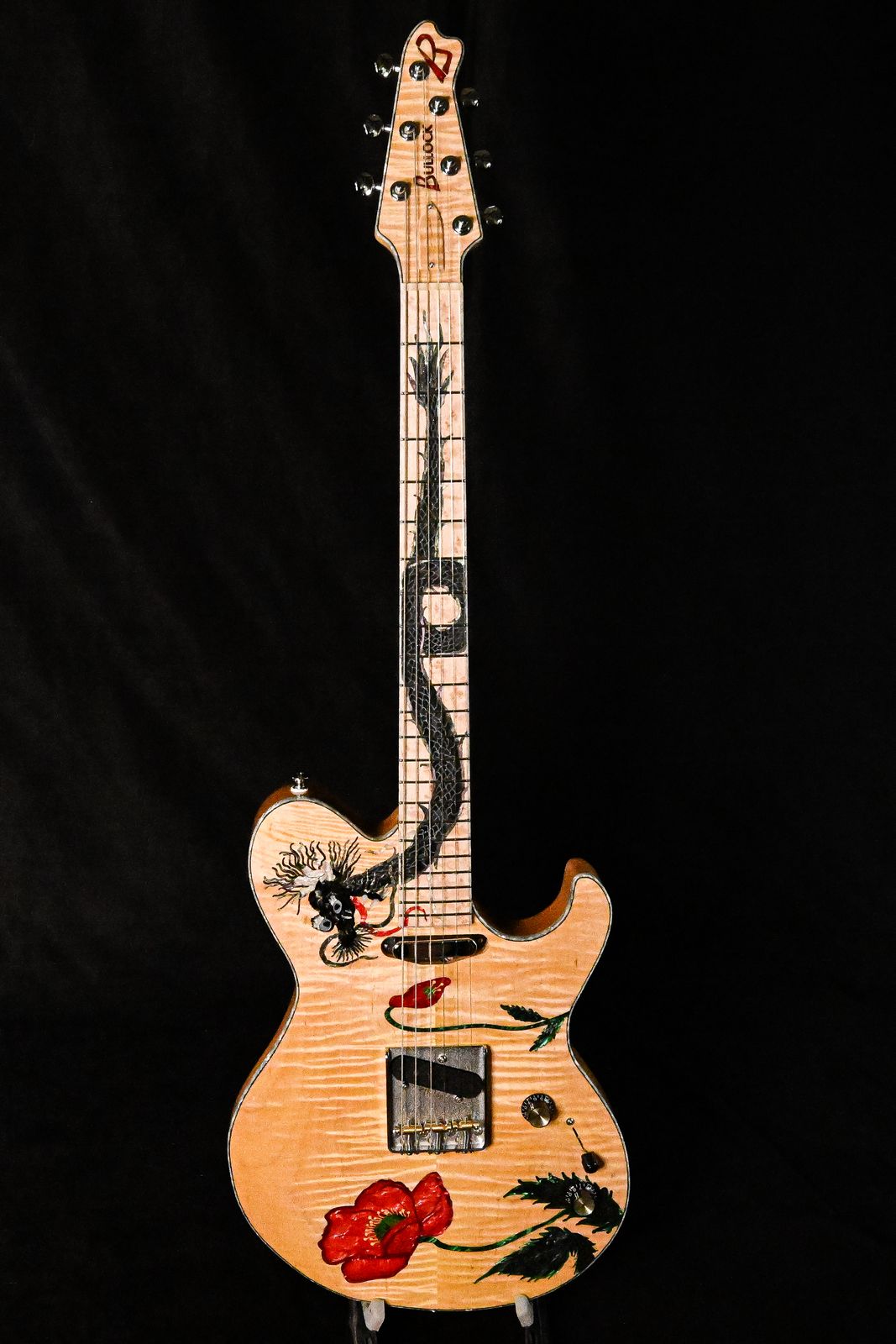

The White Poppy Suit

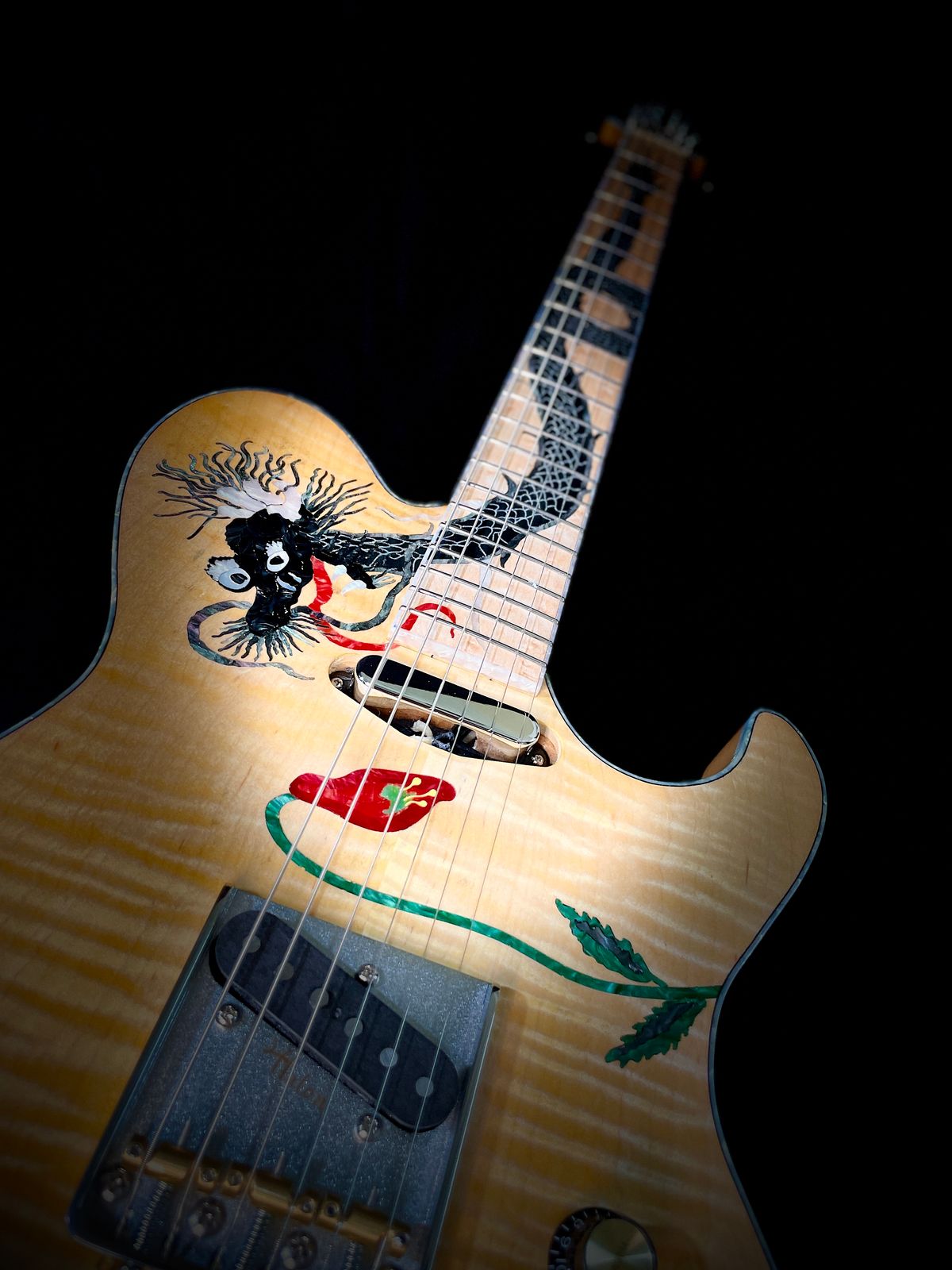

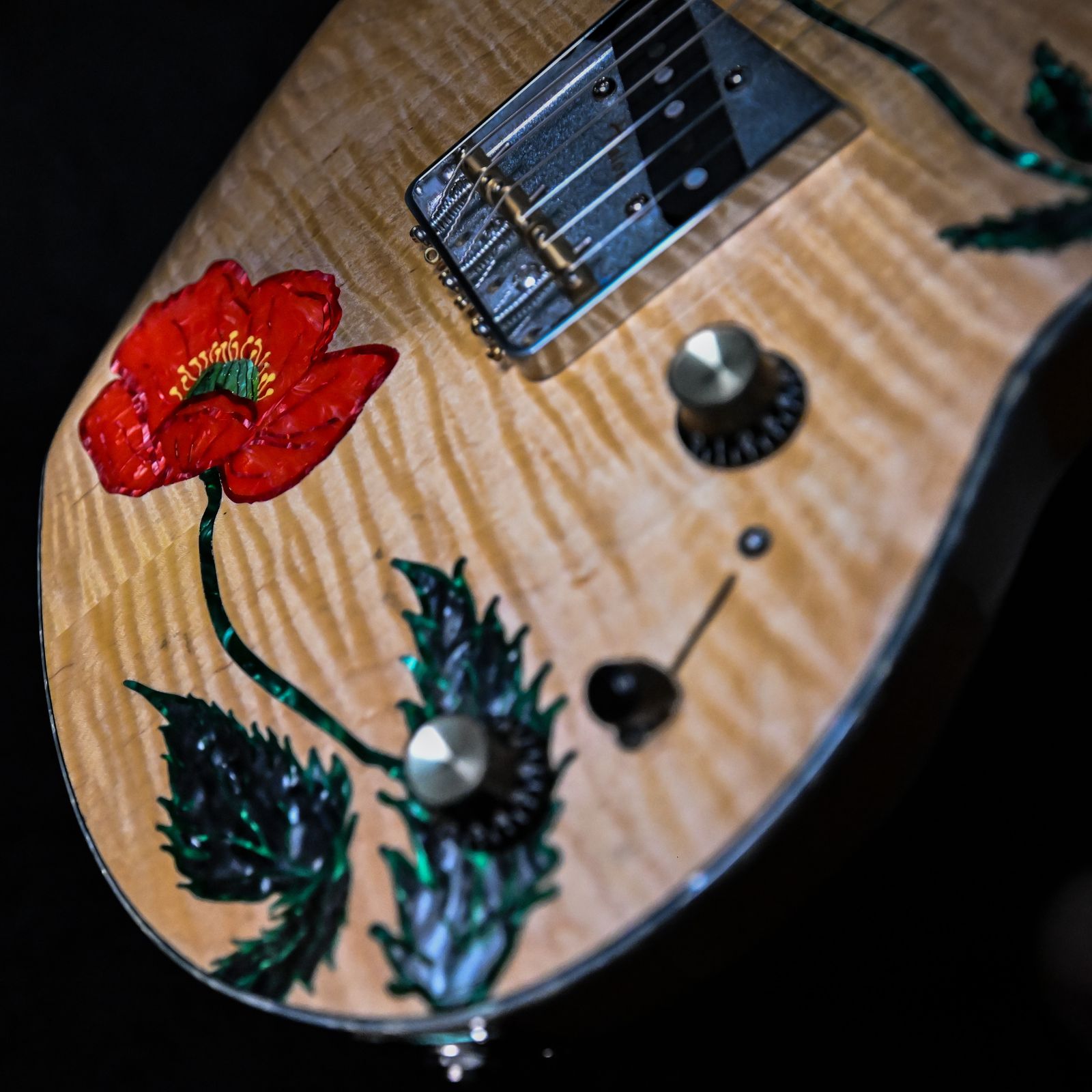

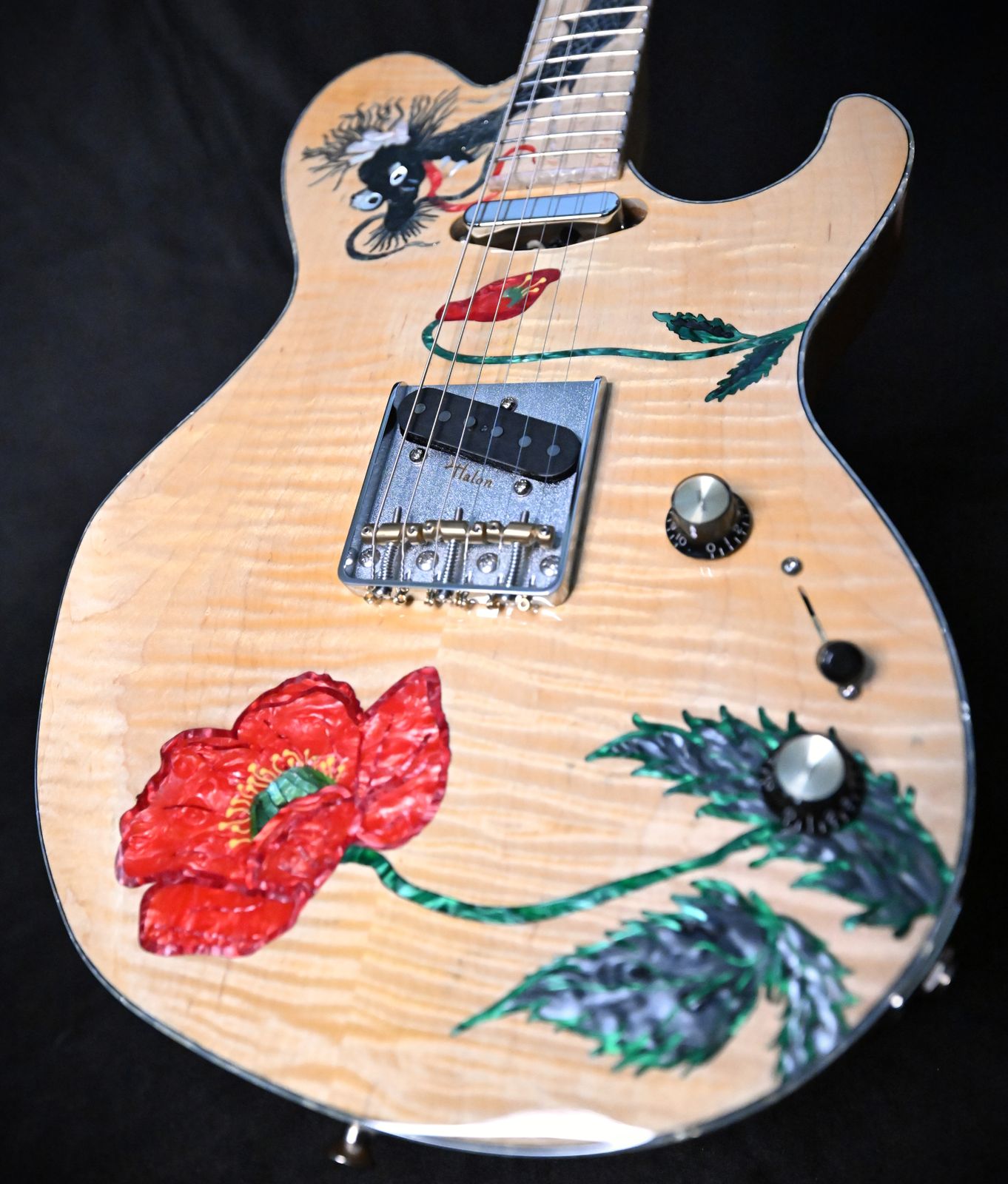

TOP: Book-Matched Curly Maple with a natural finish. Two large poppy flowers along with Japanese dragon inlays extending into the upper bout

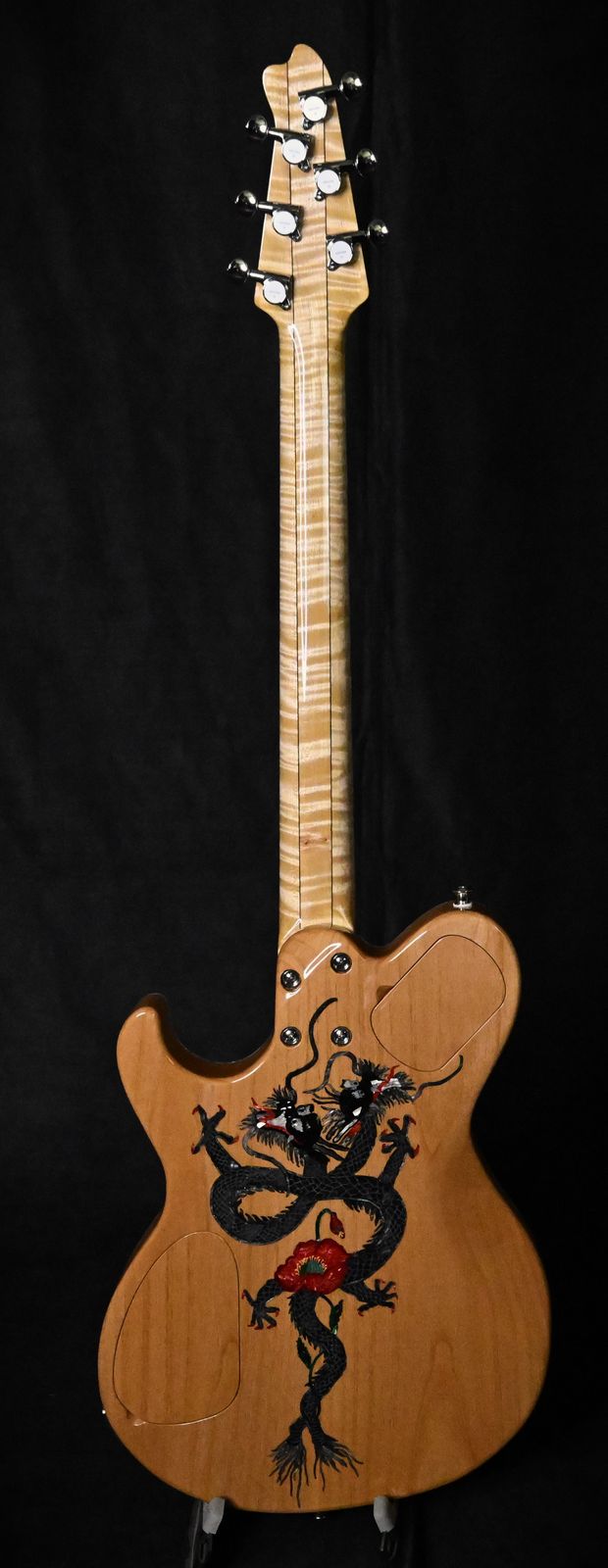

BODY: Alder with large dual-headed Japanese dragon inlay swirling around a red poppy flower. Grain-matched cavity covers that are magnetically attached.

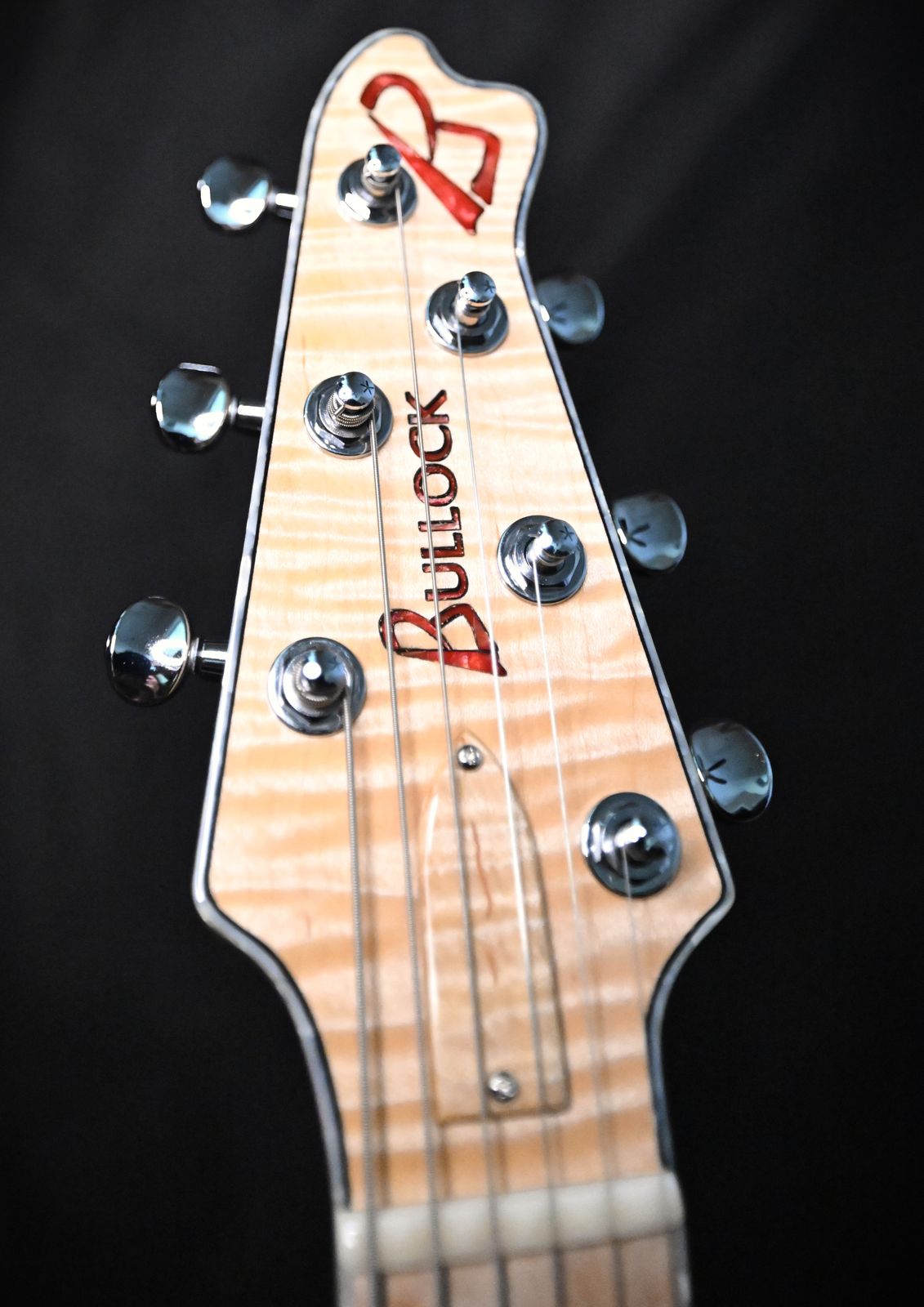

HEAD: Curly Maple with Red Pearl Logo Inlays & Multi-Ply Binding
NECK: 5-Piece Curly Maple with Ebony Pinstripes

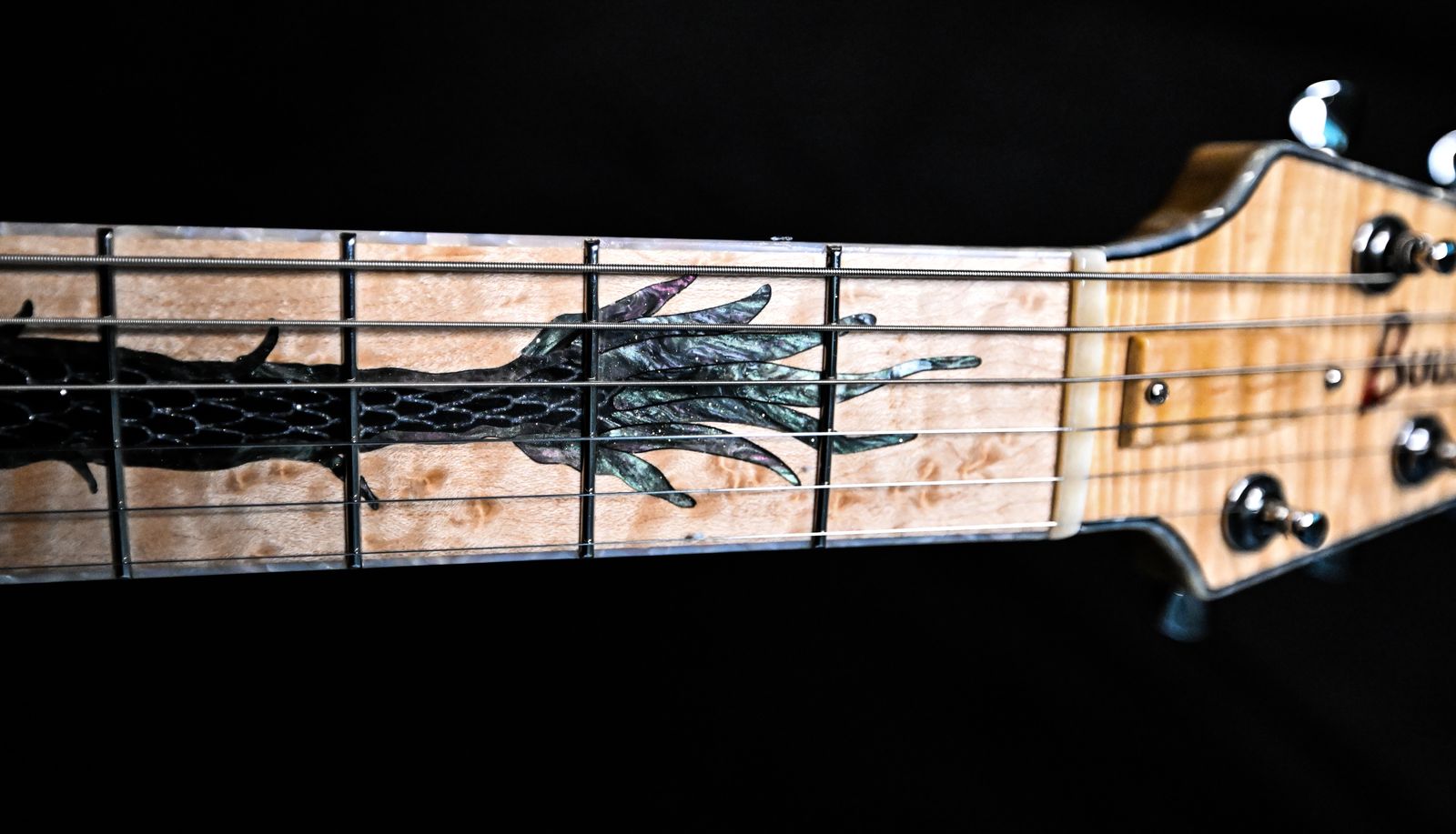

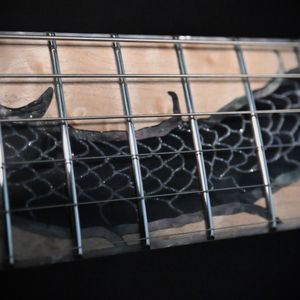

FRETBOARD: Bound Birdseye Maple with Japanese dragon spanning the entire fretboard with the head reaching up into the guitar’s body.
SCALE: 25”
NUT WIDTH: 1-11/16”
FRETBOARD RADIUS: 12”
FRETS: 24 Medium Stainless Steel Jescar
BRIDGE: Halon
PICKUP: Seymour Duncan ’52 Tele Clone Pickup Set
ELECTRONICS: Integrated multi-octave range heterodyne Theremin circuit with an operational antenna embedded within the guitar neck. 5-Way Selector Switch to activate Theremin and select pickup options. Audio Taper Volume and Tone with .047uF Orange Drop Tone Cap.
TUNERS: Gotoh Mini 3x3
FINISH: Nitrocellulose Lacquer

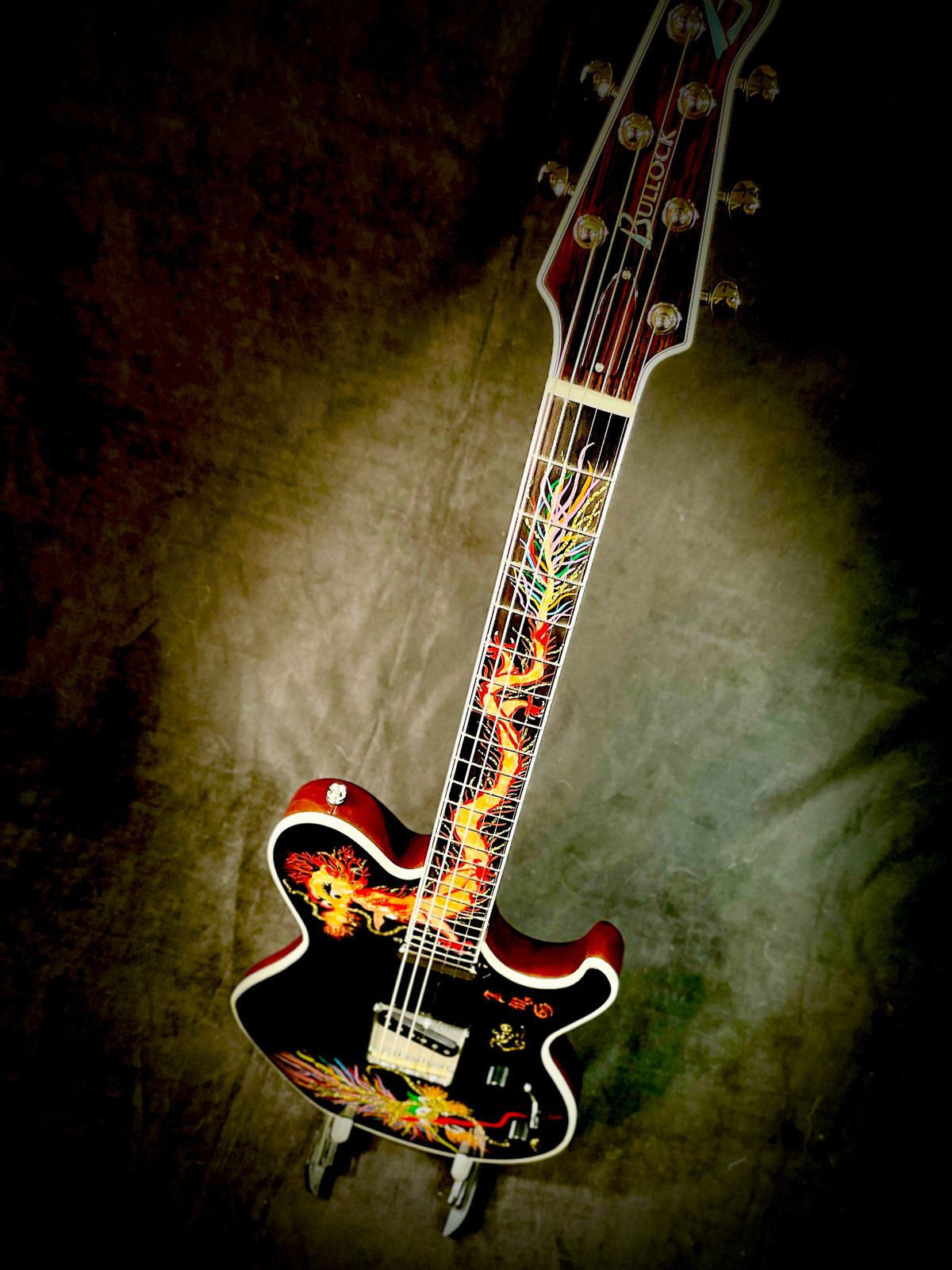

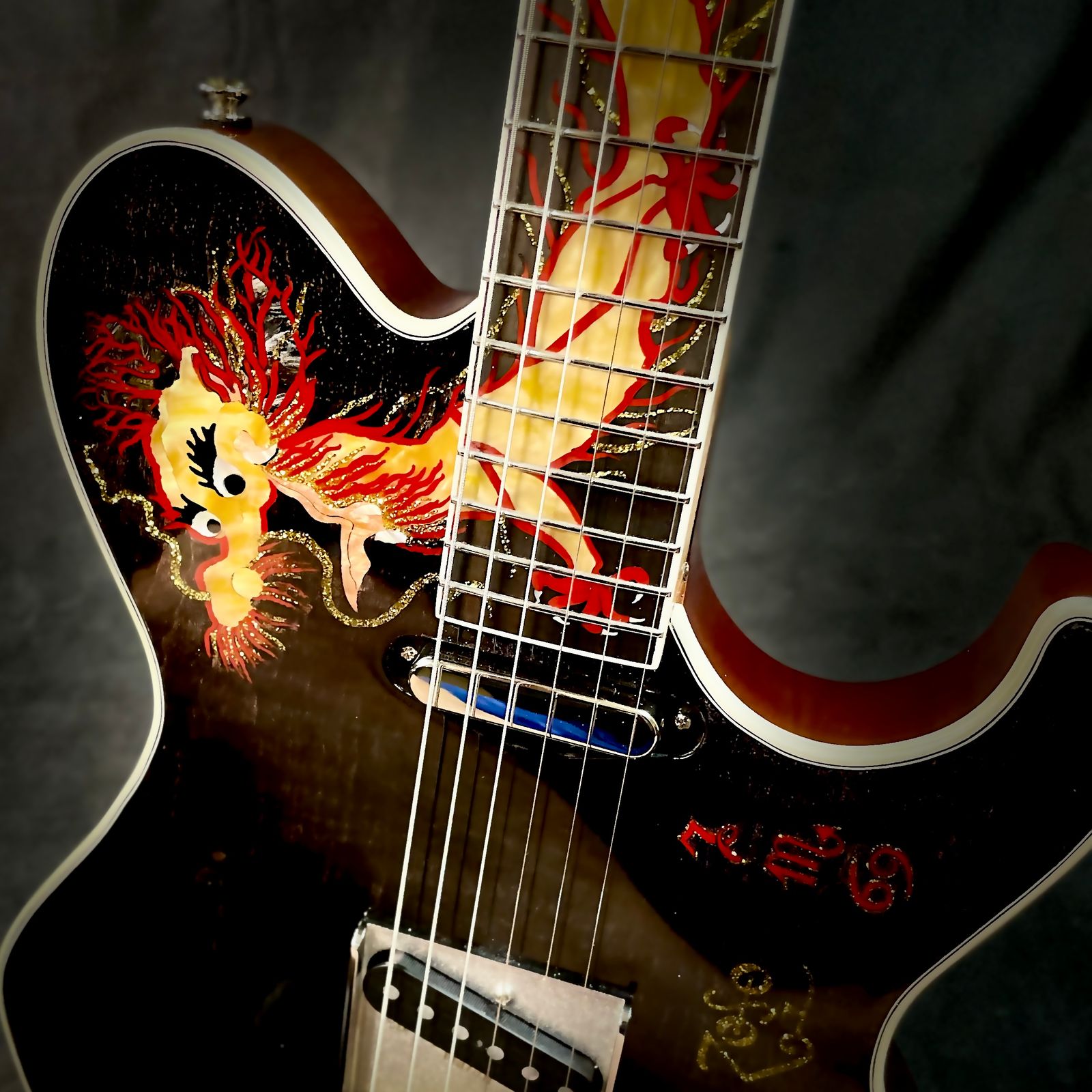

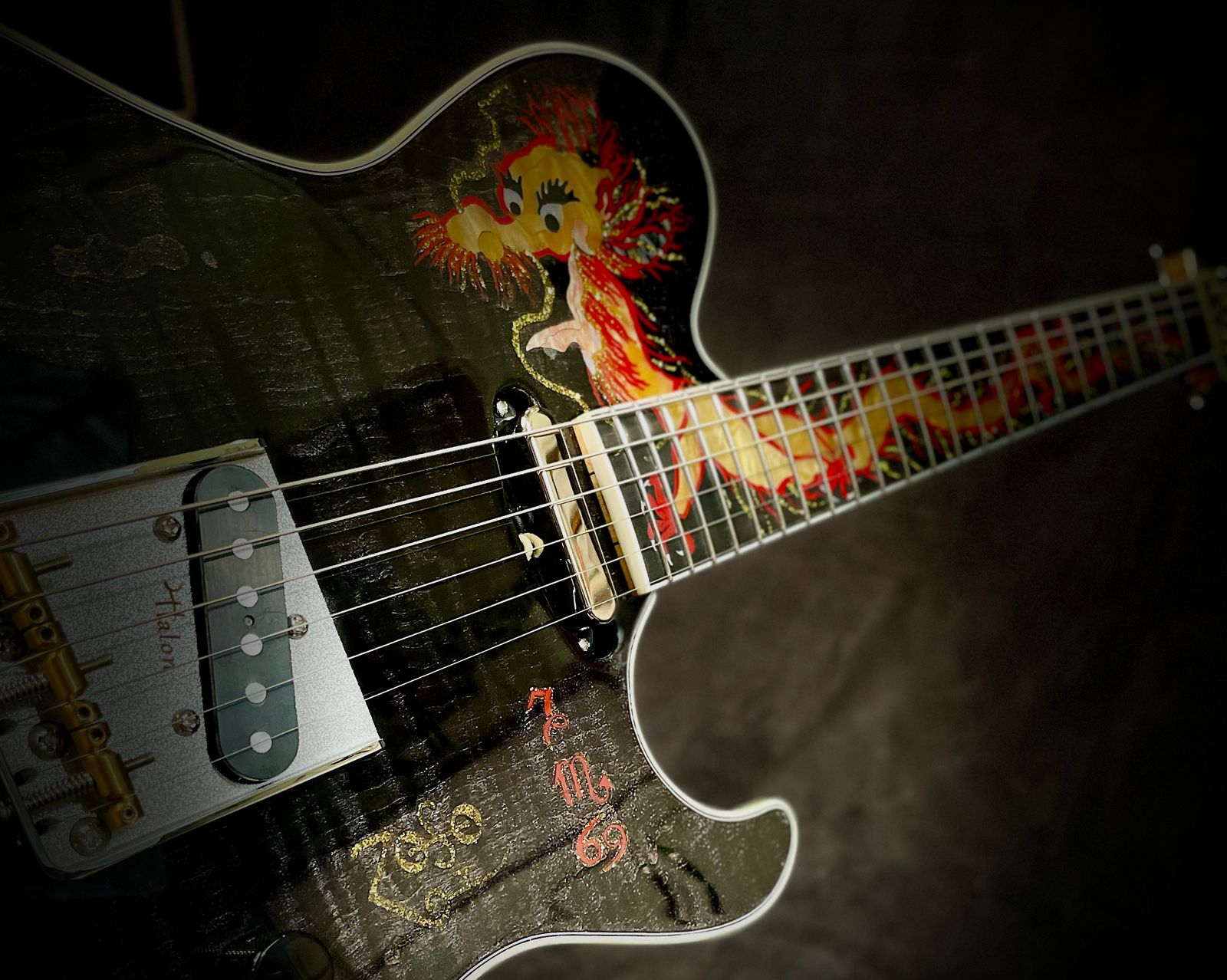

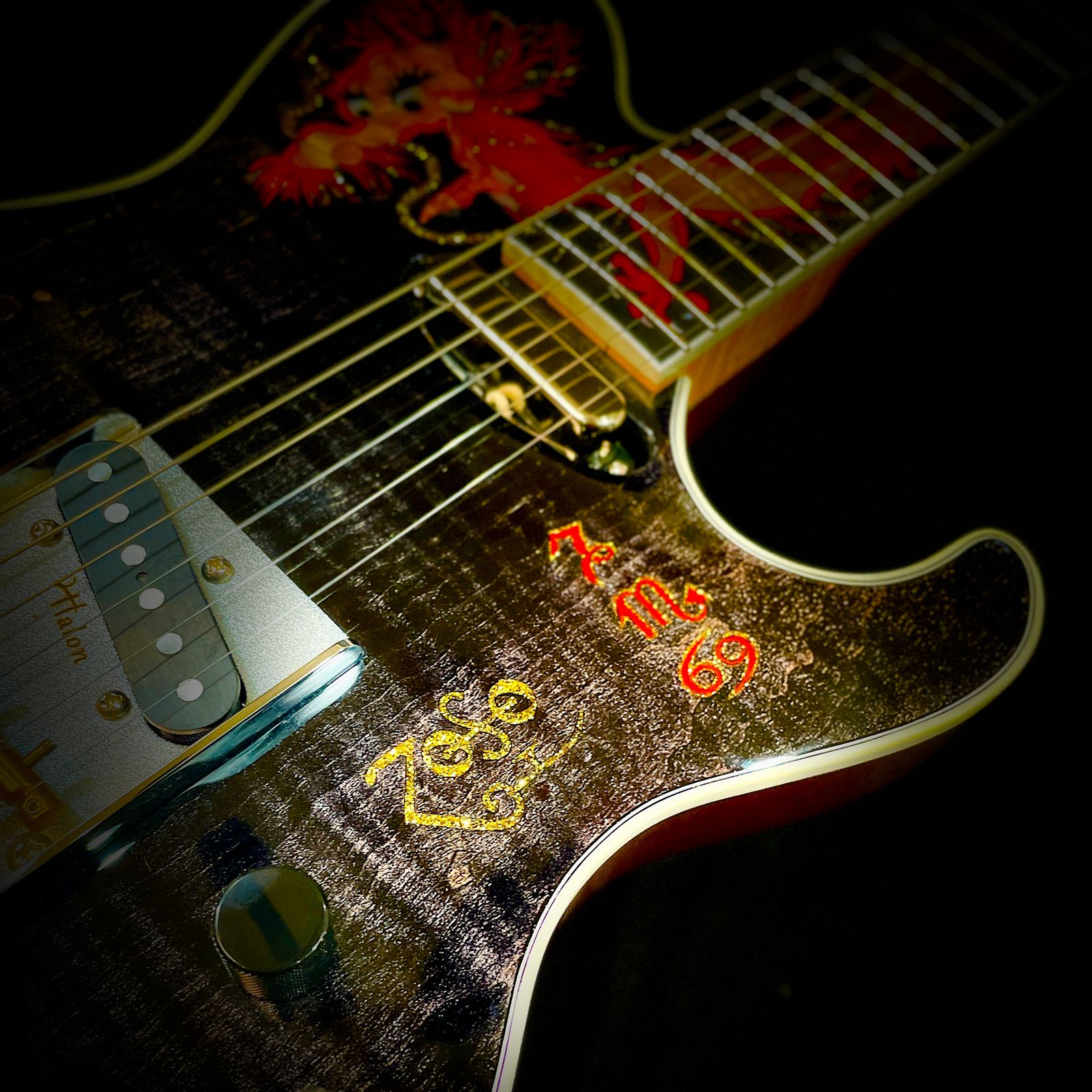

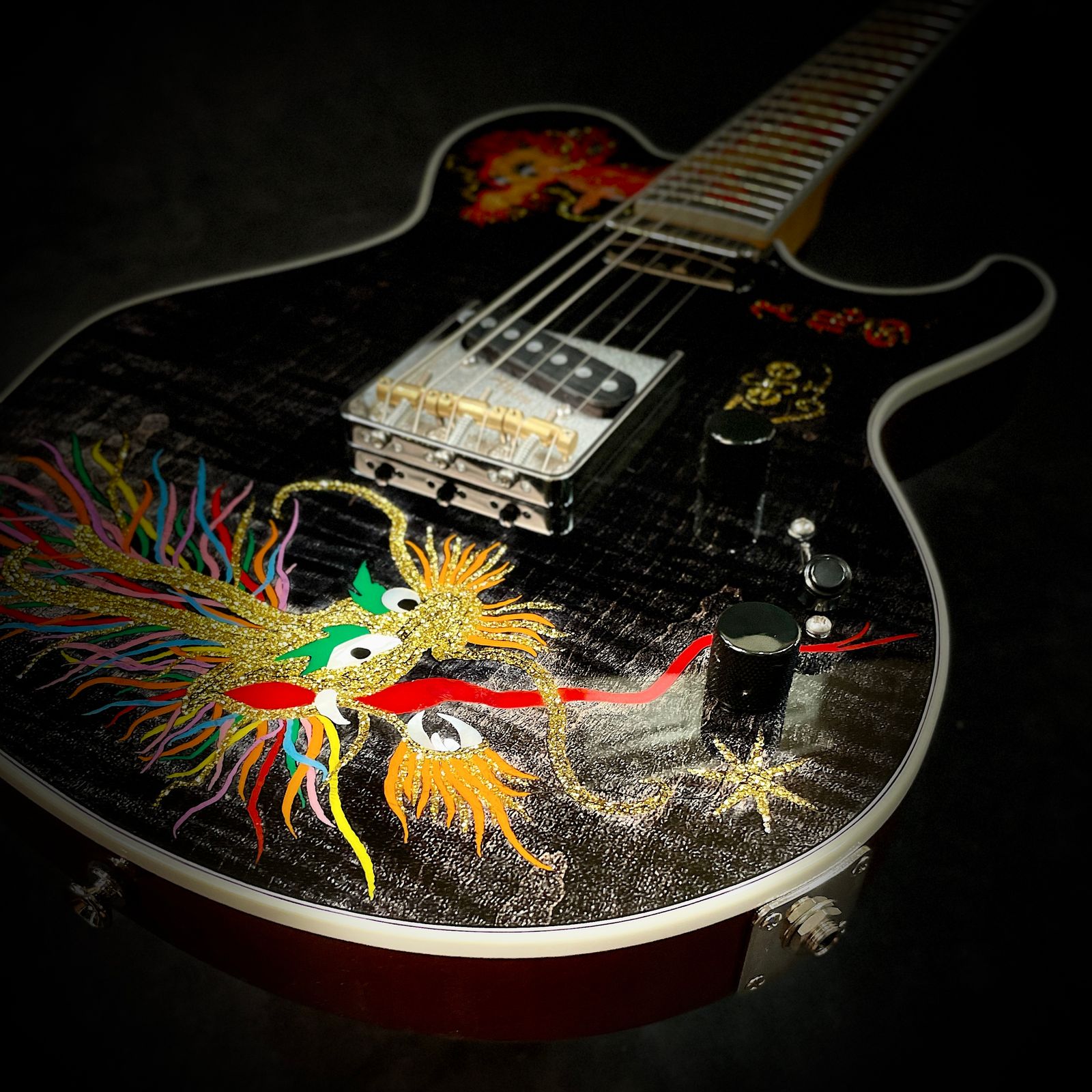

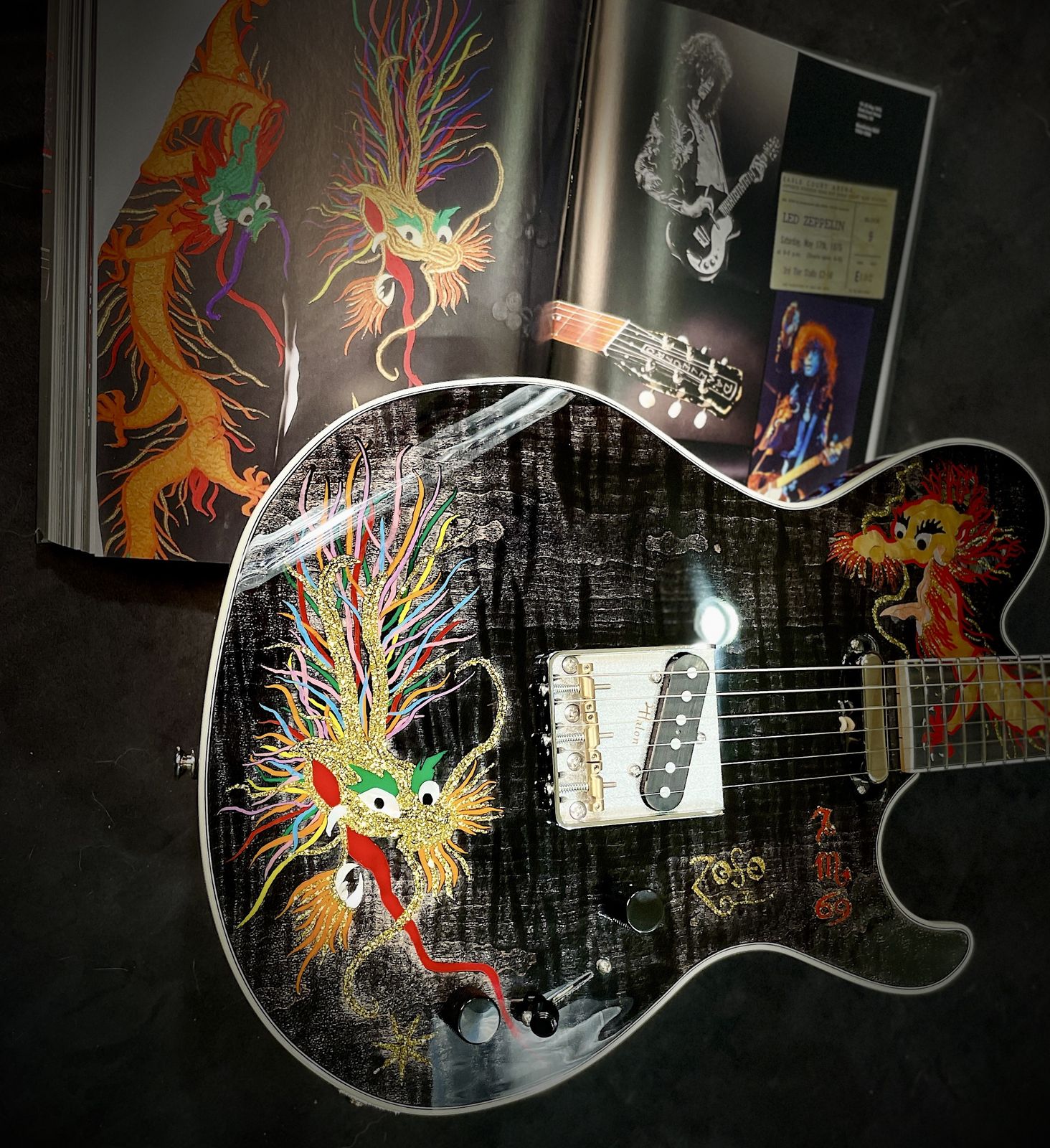

The Black Dragon Suit

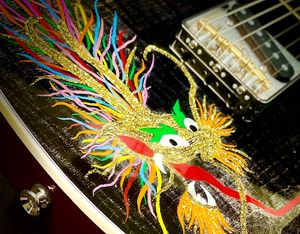

TOP: Book-Matched Curly Maple with an Ebony Finish. Two large multi-color Japanese dragon inlays along with Jimmy Page’s astrological symbols

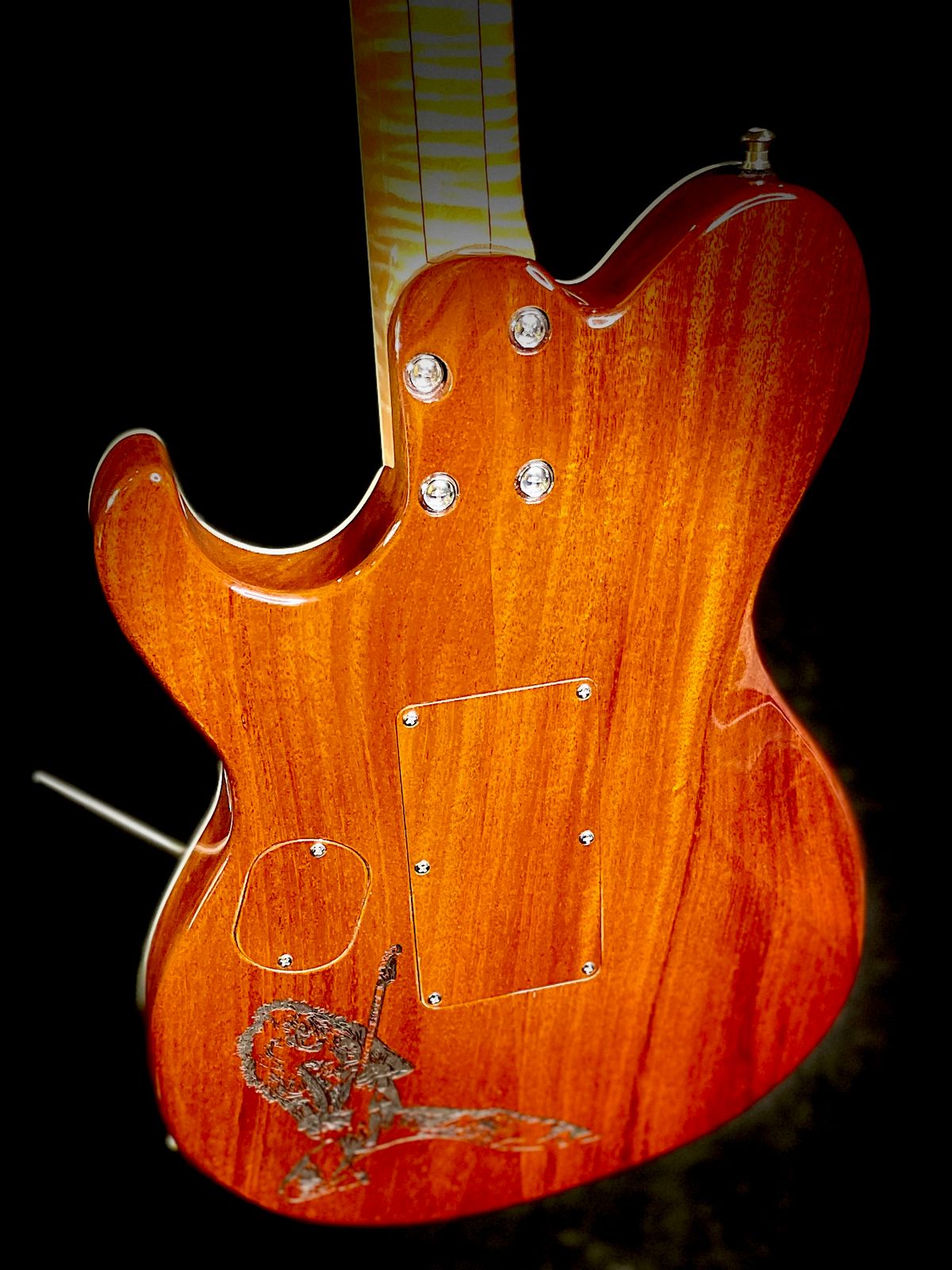

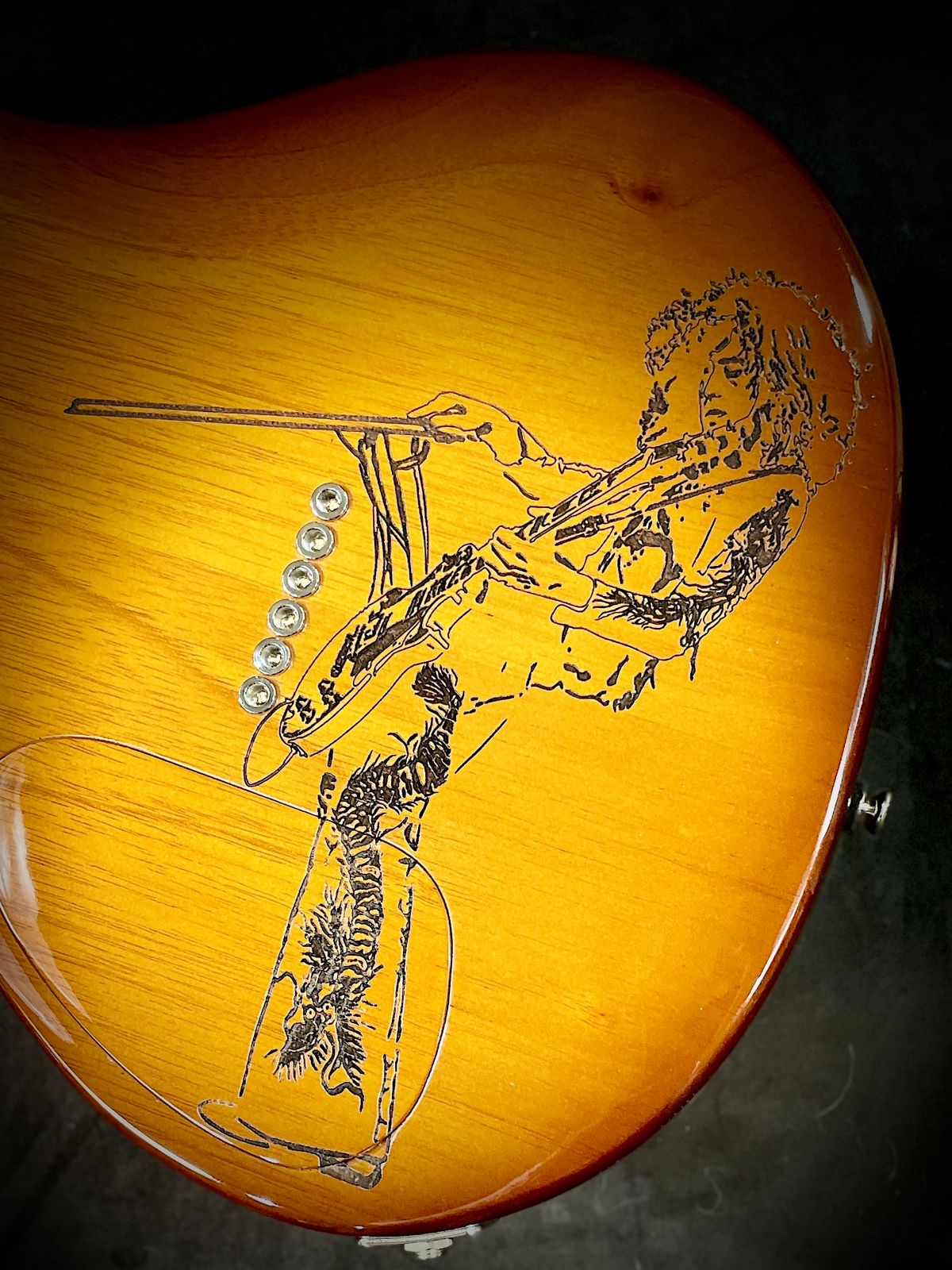

BODY: Spanish Cedar with a Laser Etched Image of Jimmy Page with Bow. Grain-matched cavity covers that are magnetically attached.
HEAD: Ebony, Mother-of-Pearl Logo Inlays & Multi-Ply Binding
NECK: 5-Piece Curly Maple with Ebony Pinstripes

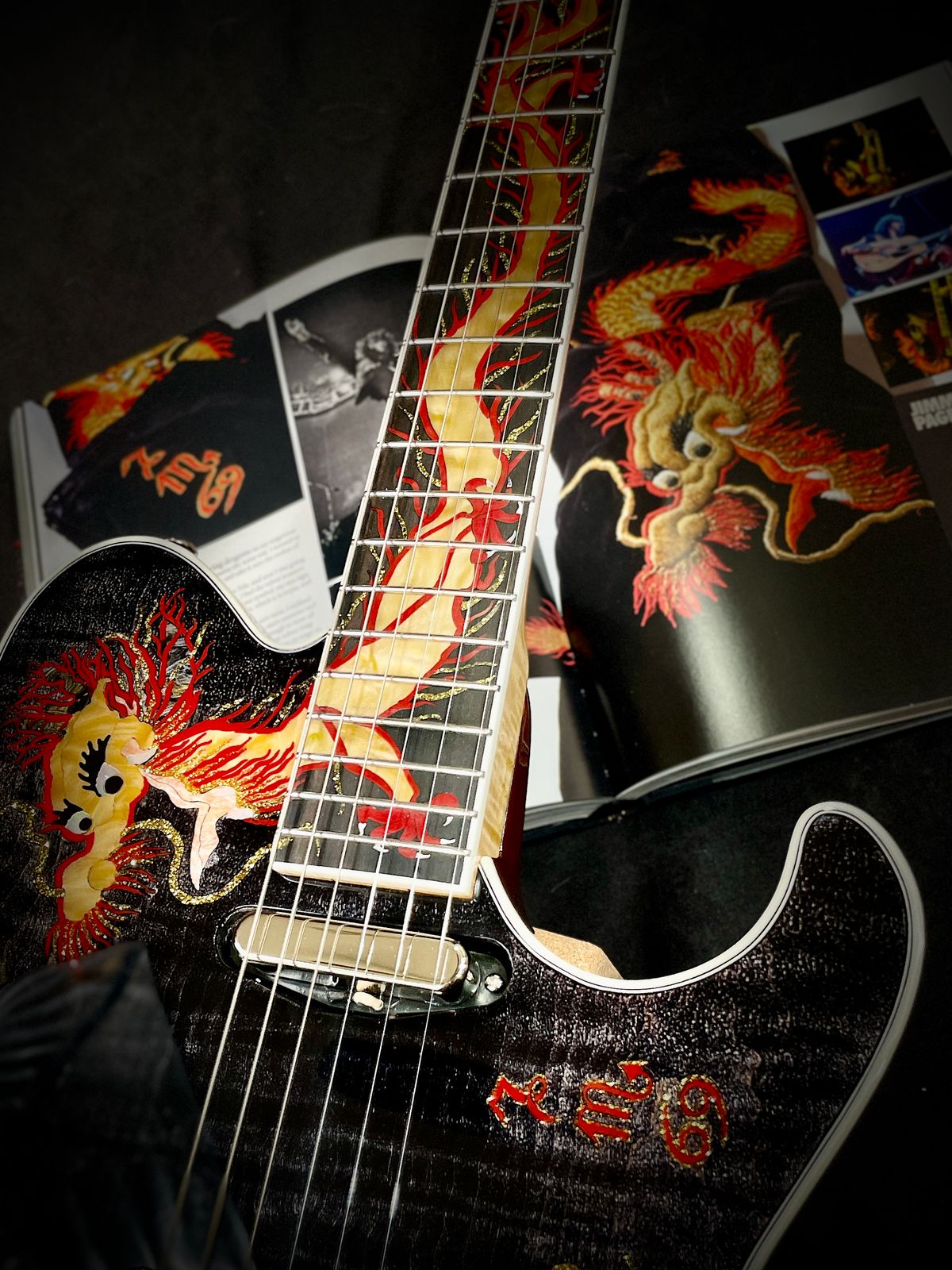

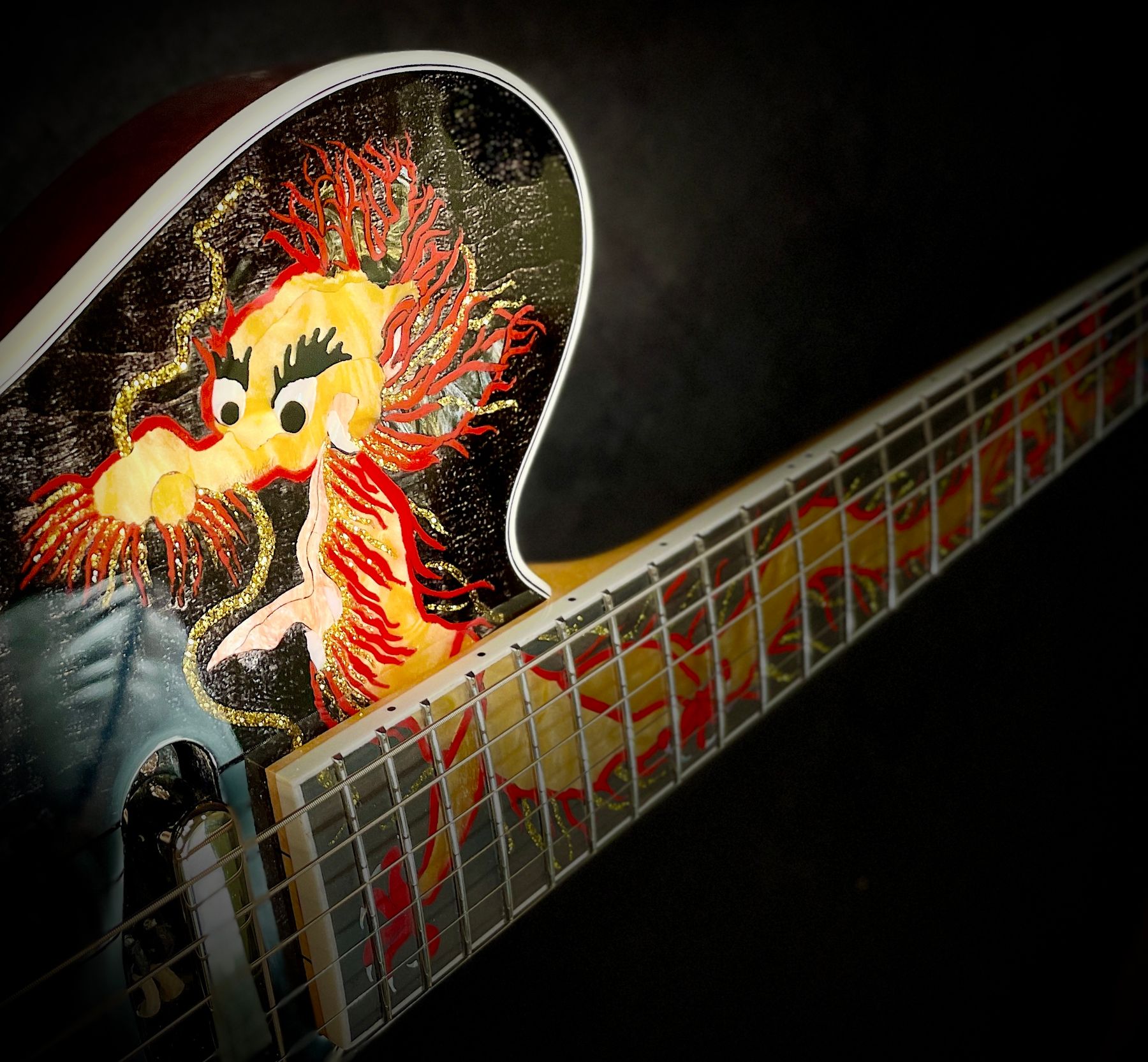

FRETBOARD: Bound Ebony with golden Japanese dragon spanning the entire fretboard with the head reaching up into the guitar’s body. Multi-colored tail. Mother of Pearl claws. Red and gold sparkle dragon outline
SCALE: 25”
NUT WIDTH: 1-11/16”
FRETBOARD RADIUS: 12”
FRETS: 24 Medium Stainless Steel Jescar
BRIDGE: Halon
PICKUP: MojoTone ’52 Tele Clone Pickup Set
ELECTRONICS: Integrated multi-octave range heterodyne Theremin circuit with an operational antenna embedded within the guitar neck. 5-Way Selector Switch to activate Theremin and select pickup options. Audio Taper Volume and Tone with .047uF Orange Drop Tone Cap.
TUNERS: Gotoh Mini 3x3
FINISH: Nitrocellulose Lacquer

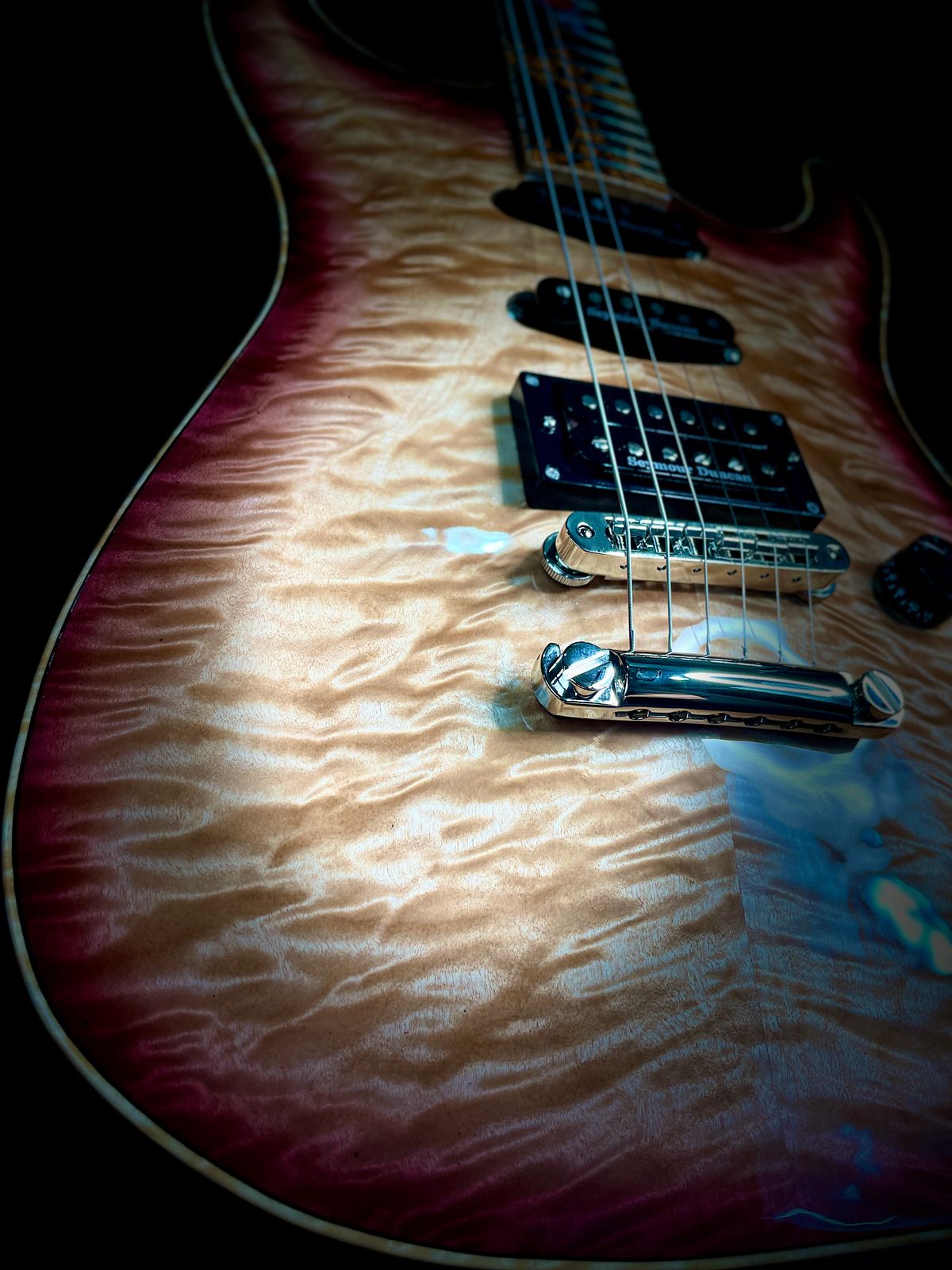

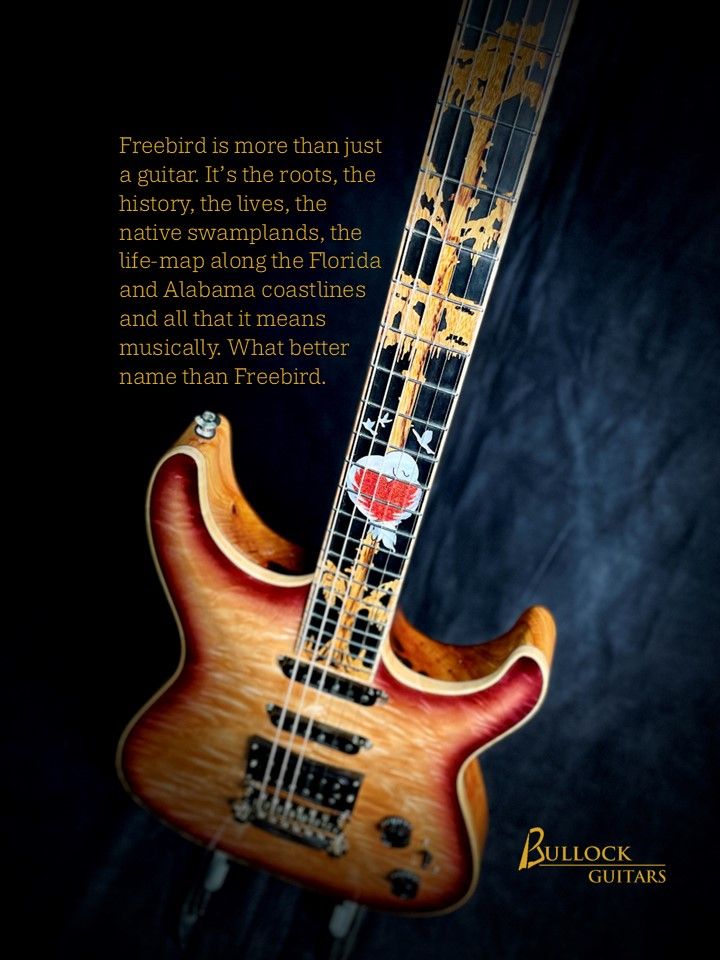

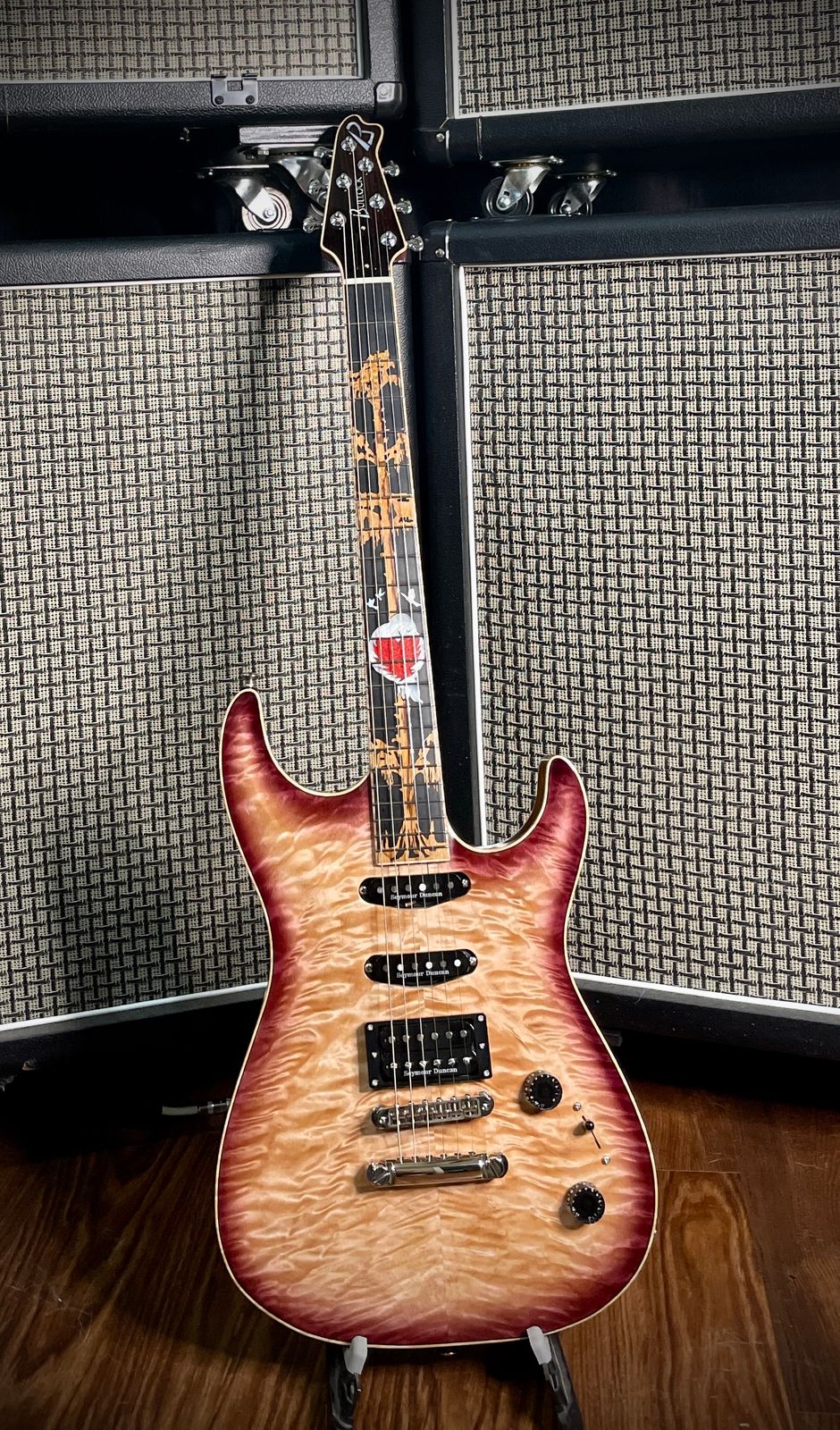

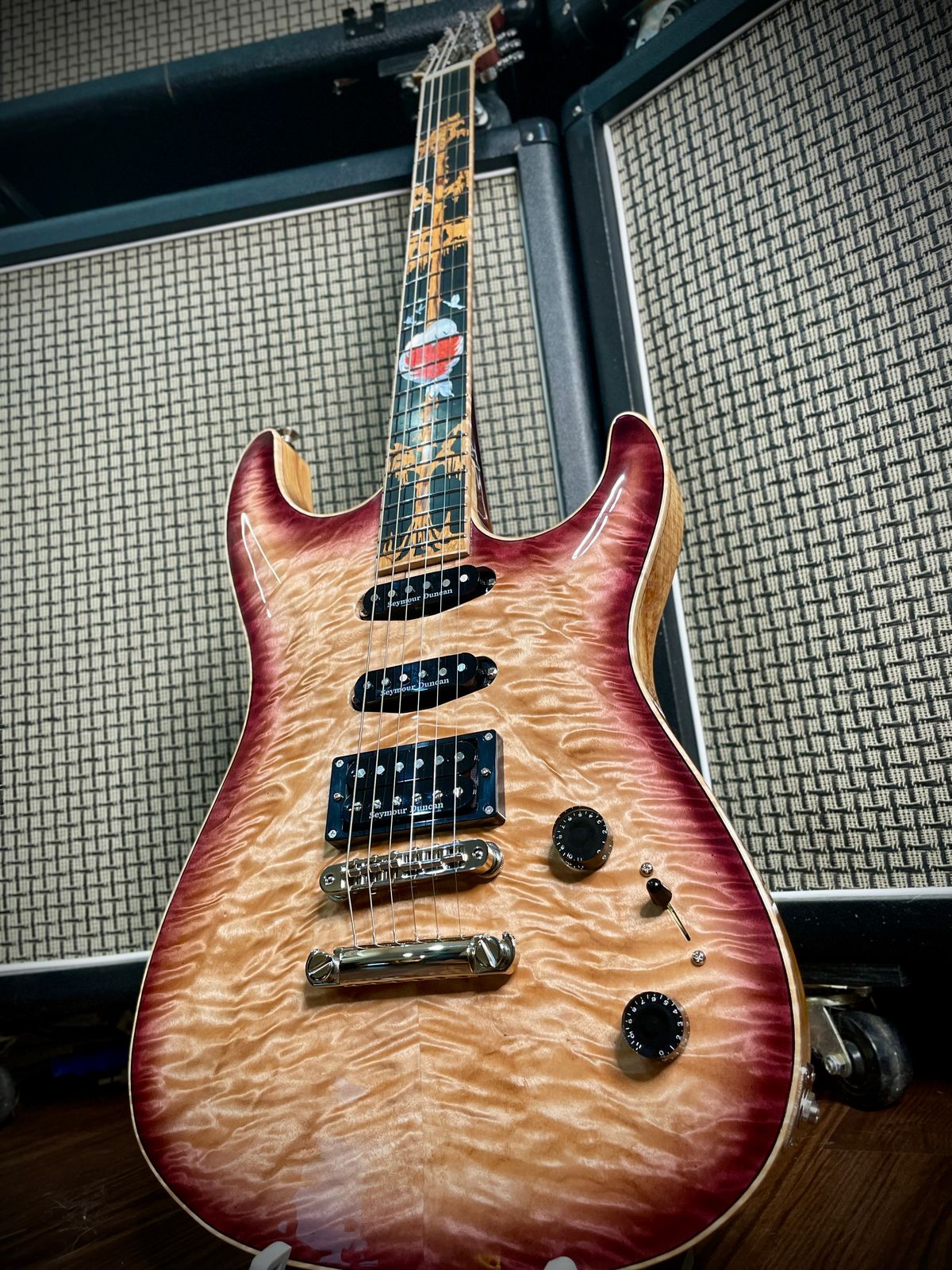

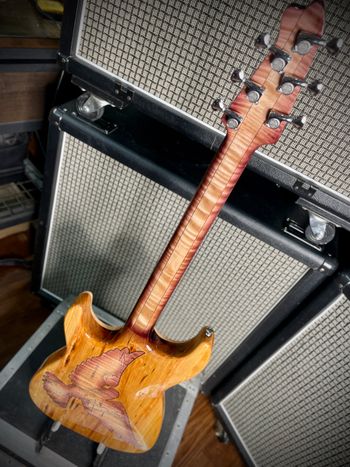

Freebird

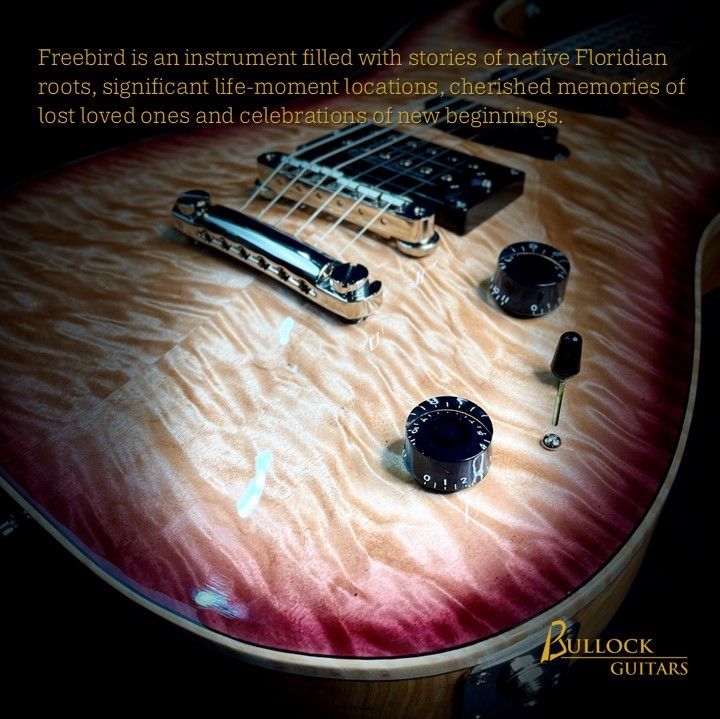

TOP: Contoured master grade angel-step quilt figure with a natural finish fading to a deep cordovan dark-burst. Ebony purfling and natural maple binding throughout

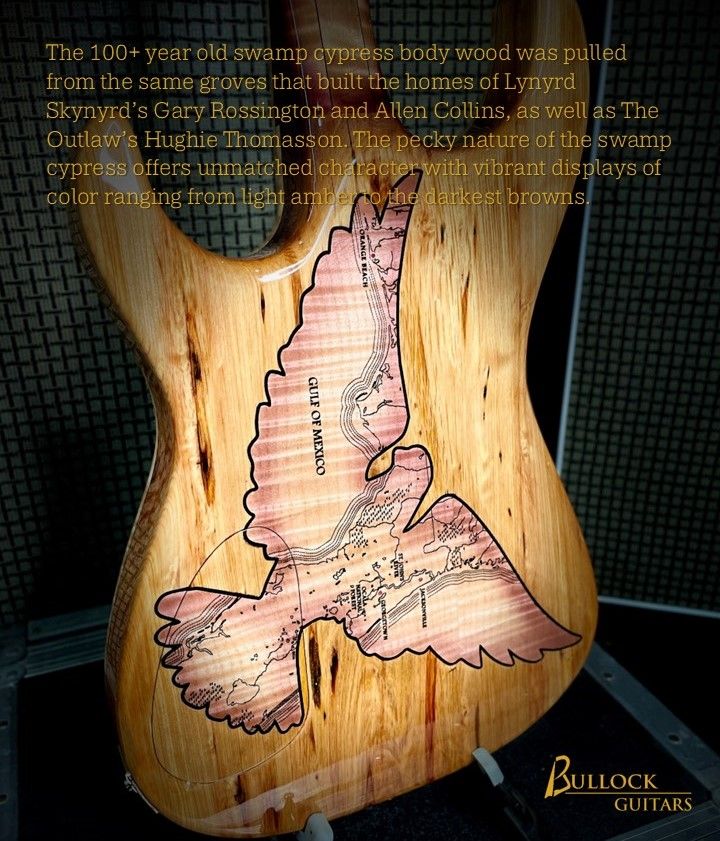

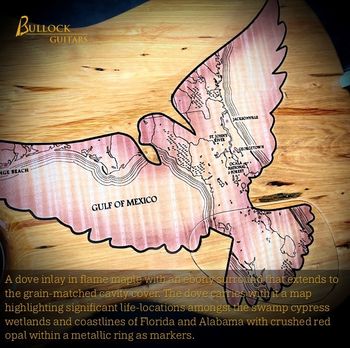

BODY: Swamp cypress with dove inlay of flame maple and ebony. Engraved map outlines key life-locations with red opal/metallic markers
CAVITY COVER: The map inlay extends to the grain-matched cavity cover which attaches to the body with strong neodymium magnets.
NECK: 5-piece flame-maple and ebony pinstripe set-neck. Long tenon extends beneath the neck pickup for comfortable contouring of the neck/body heel for maximum playability.
HEAD: Ebony overlay with flame maple binding. Matching ebony truss-cover and mother-of-pearl inlays.
FRETBOARD: Ebony, with Curly Maple Binding

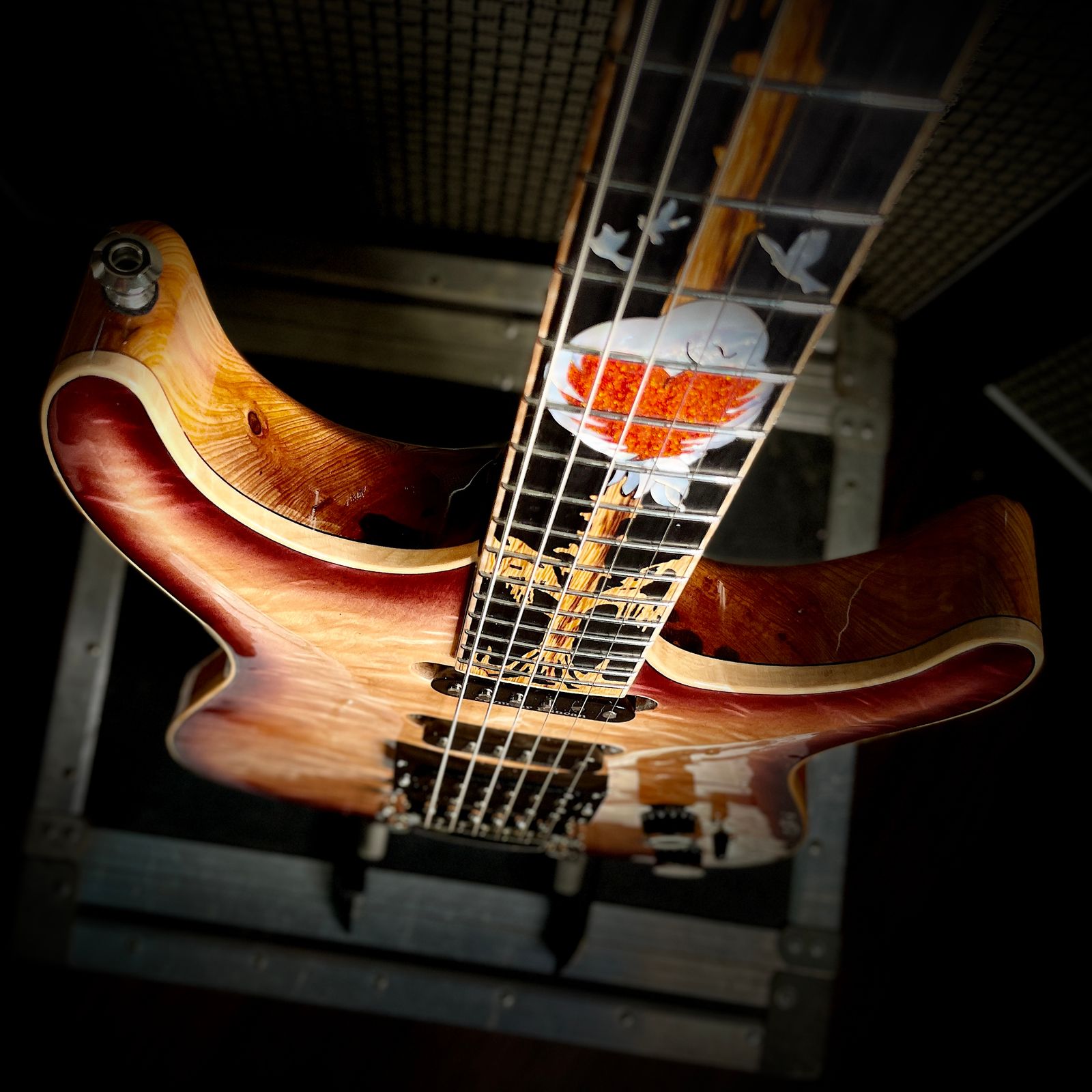

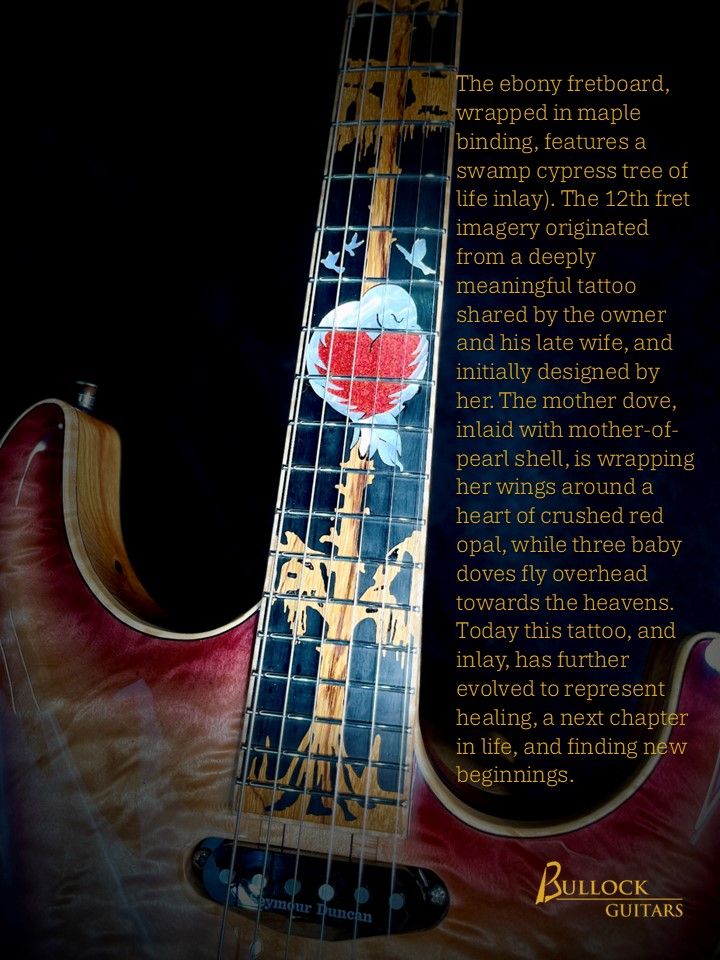

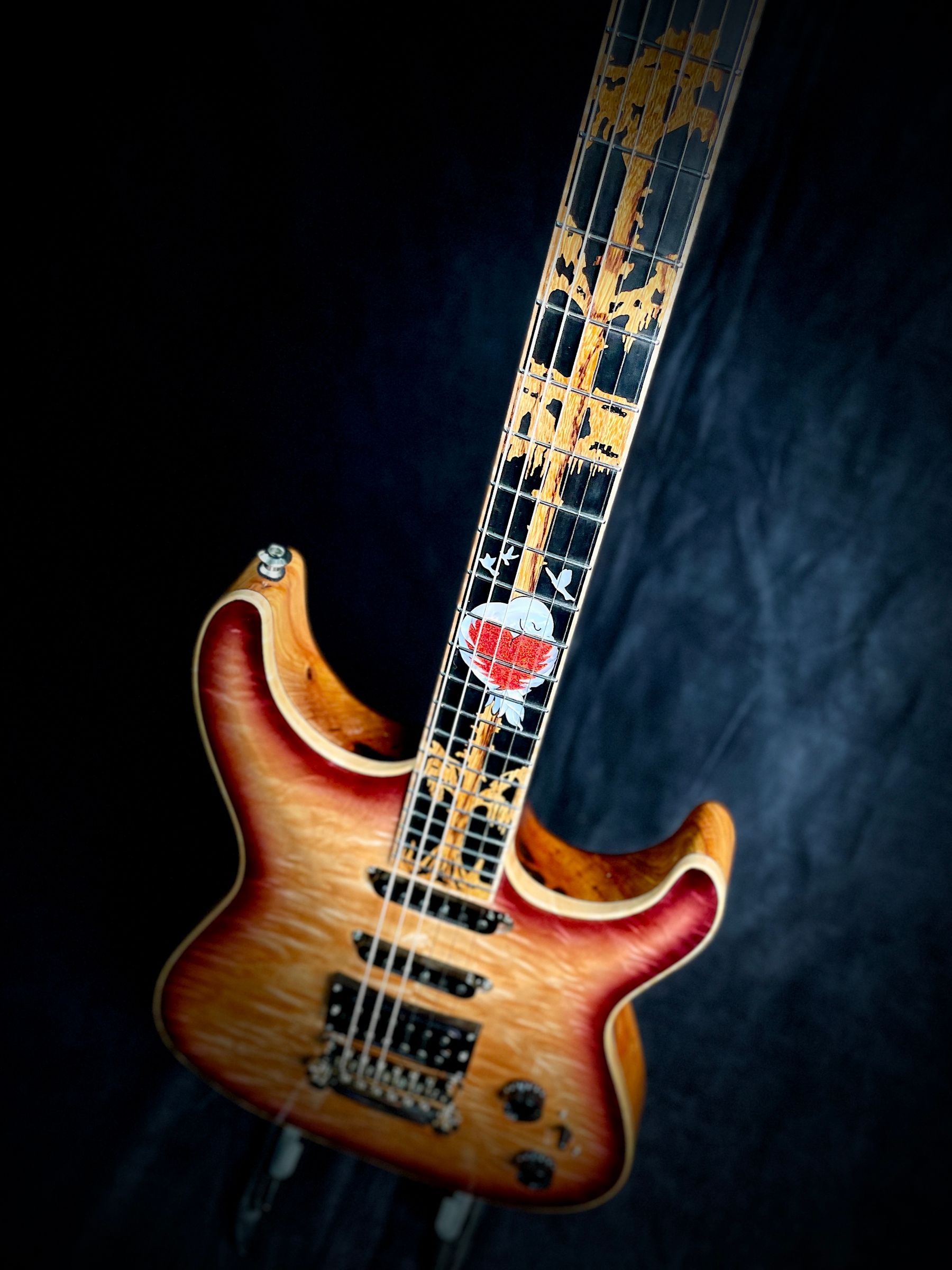

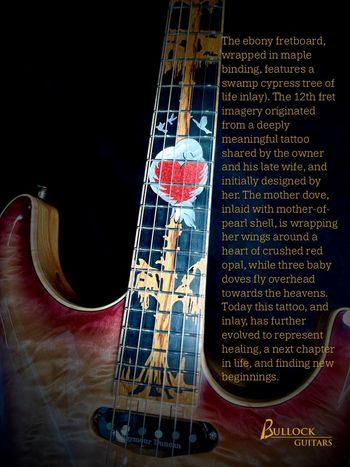

INLAY: Cypress tree-of-life (marblewood), mother-of-pearl dove holding a heart of crushed red opal while three baby doves fly overhead.
SCALE: 25”
NUT WIDTH: 1.6875”
FRETBOARD RADIUS: 12”
FRETS: 22 Medium Stainless Steel Jescar
BRIDGE: Tone-Pro’s locking bridge and tailpiece
PICKUPS: Seymour Duncan pickups Neck (SSL-1), Middle (SSL-5 RWRP), Humbucker (JB)
SWITCH: 5-Way Blade Switch, Push-pull in tone knob for bridge pickup coil-tap
TUNERS: Gotoh 510 with 18:1 gear ratio
FINISH: Natural Body, Natural top with fade dark-burst, Nitrocellulose Gloss Lacquer

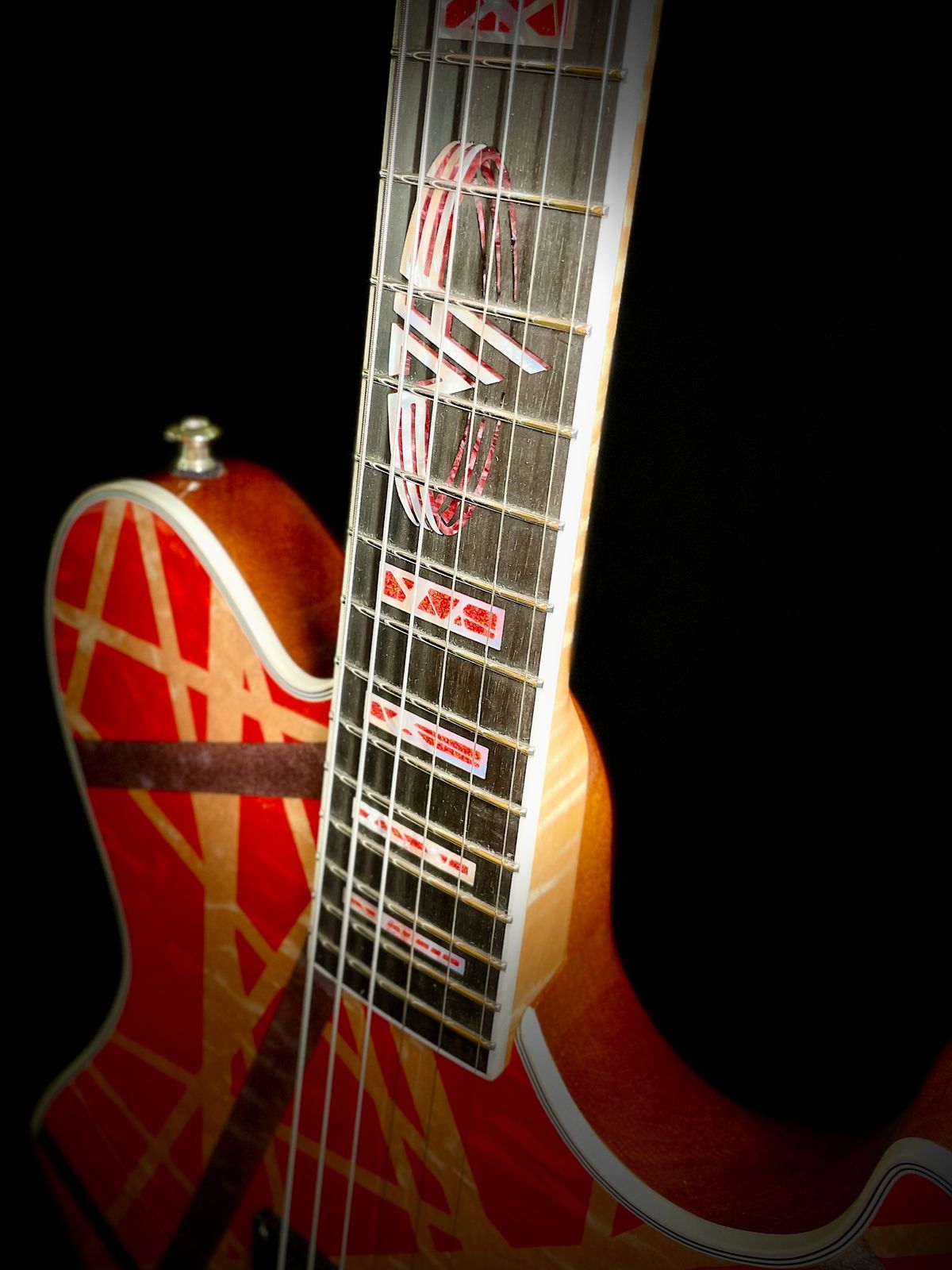

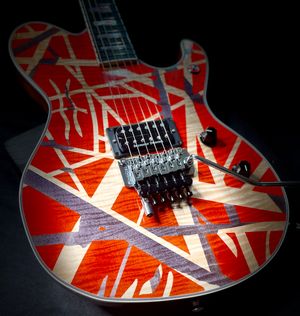

Dreams

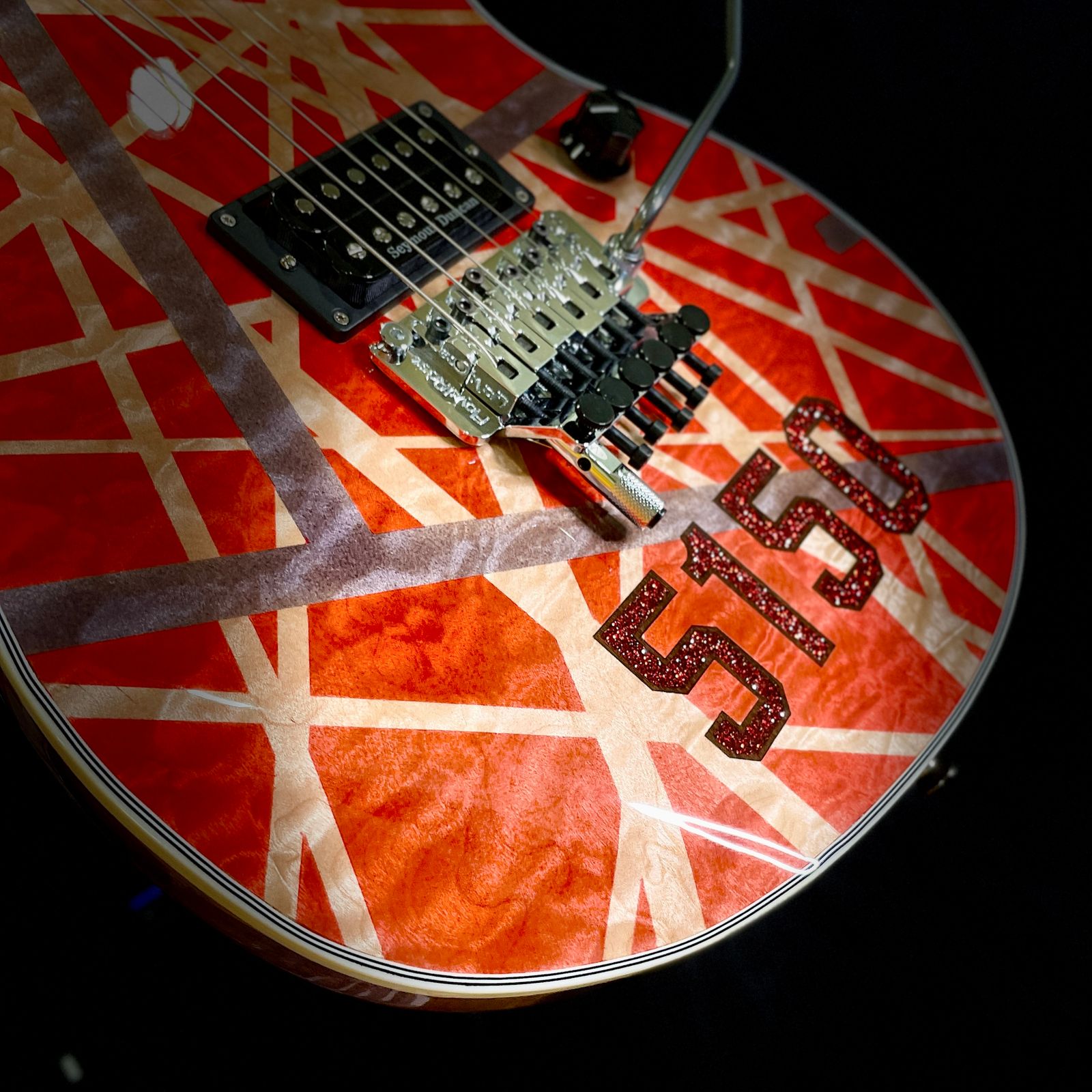

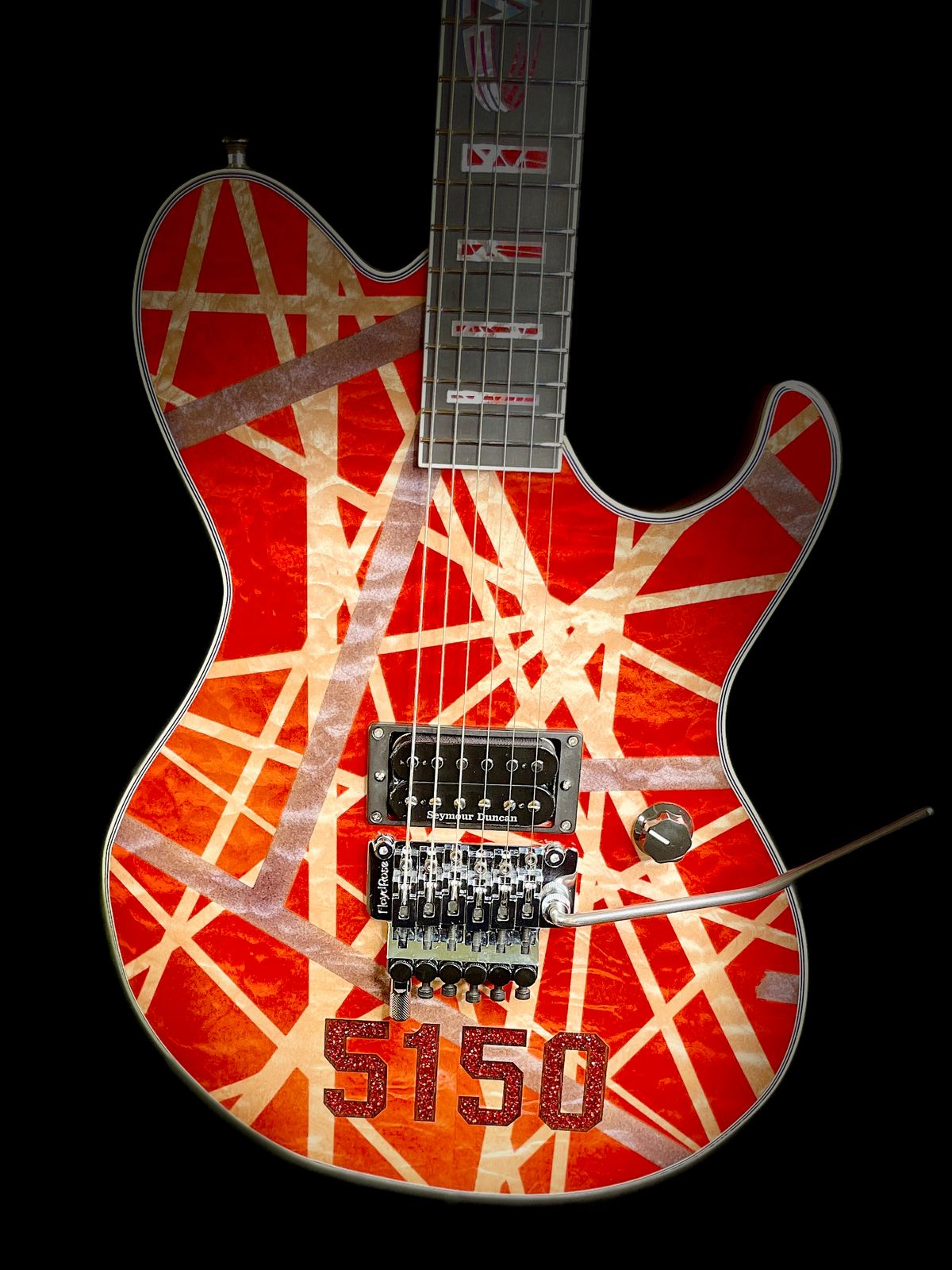

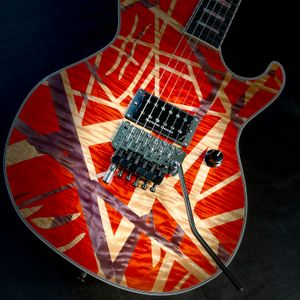

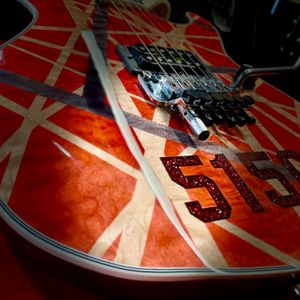

TOP: Book-Matched Musical Grade Quilted Maple with Transparent Cherry Red, Natural and Black EVH 5150 Striped Pattern and Multi-Ply Binding. “5150” inlay in guitar top behind tremolo (ebony surround, inner red holographic sparkle)

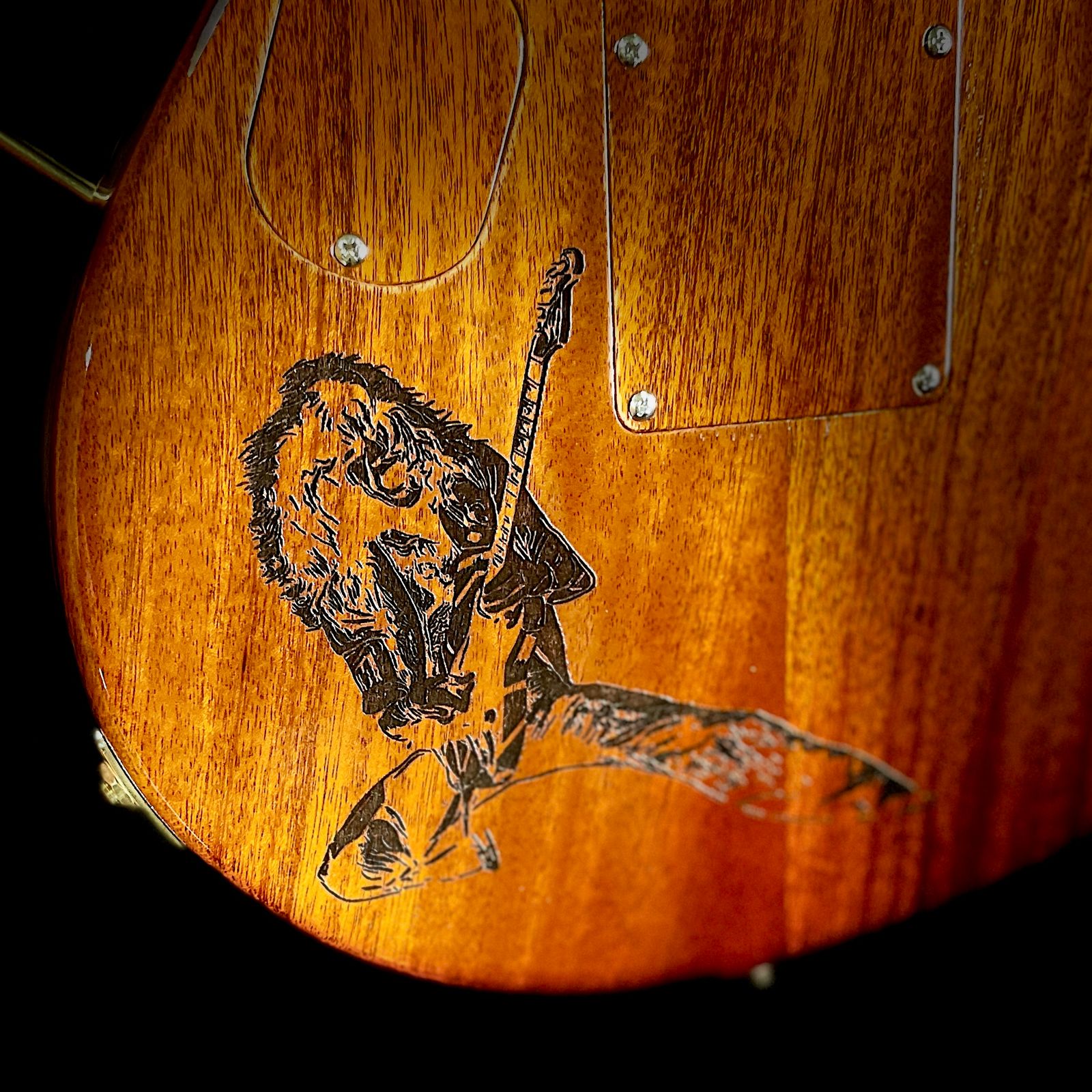

BODY: Mahogany with matching cavity covers and laser etched classic image of Eddie

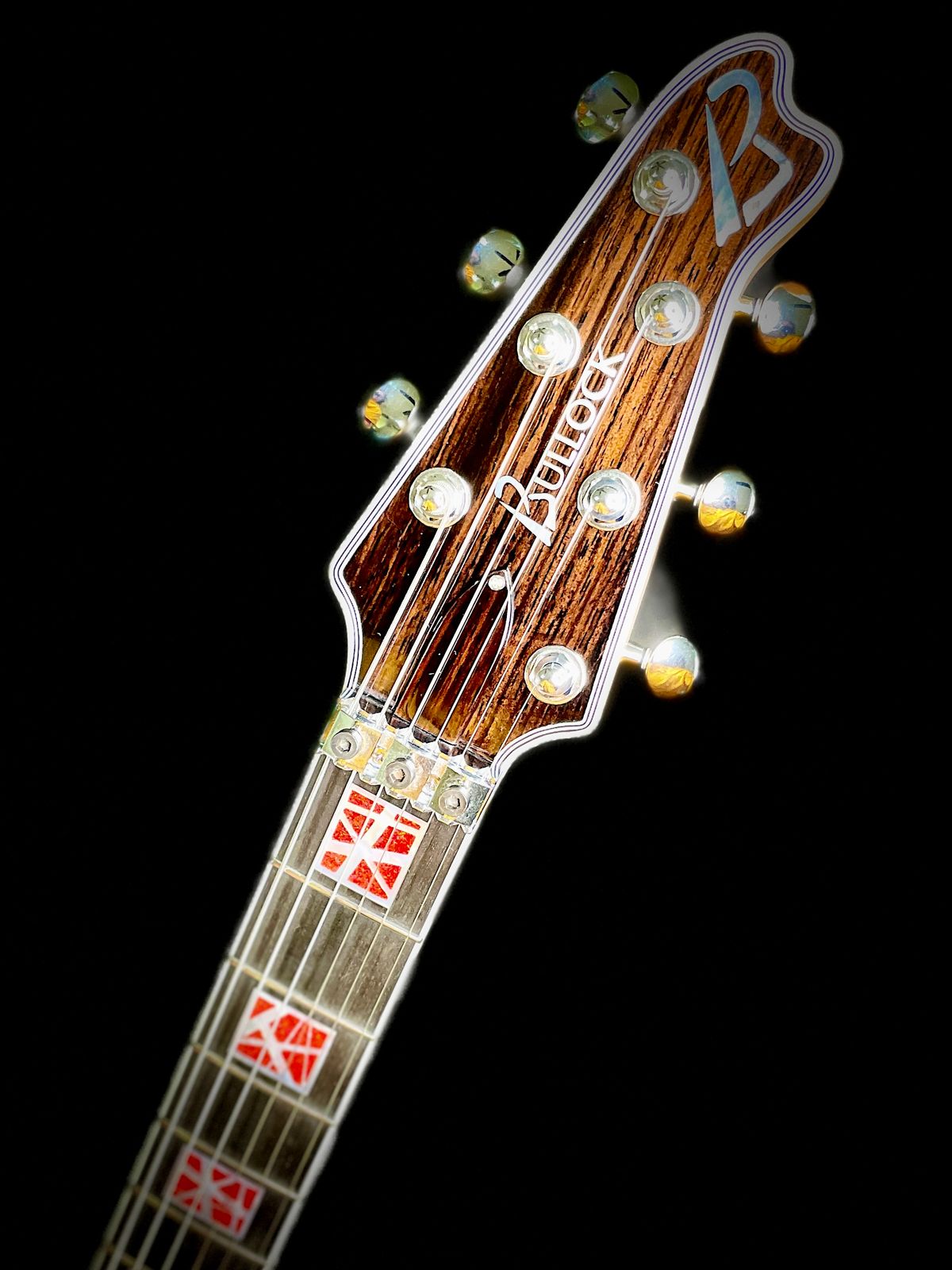

HEAD: Ebony with Mother-of-Pearl Logo Inlays & Multi-Ply Binding
NECK: 5-Piece Curly Maple with Ebony & Maple Pinstripes

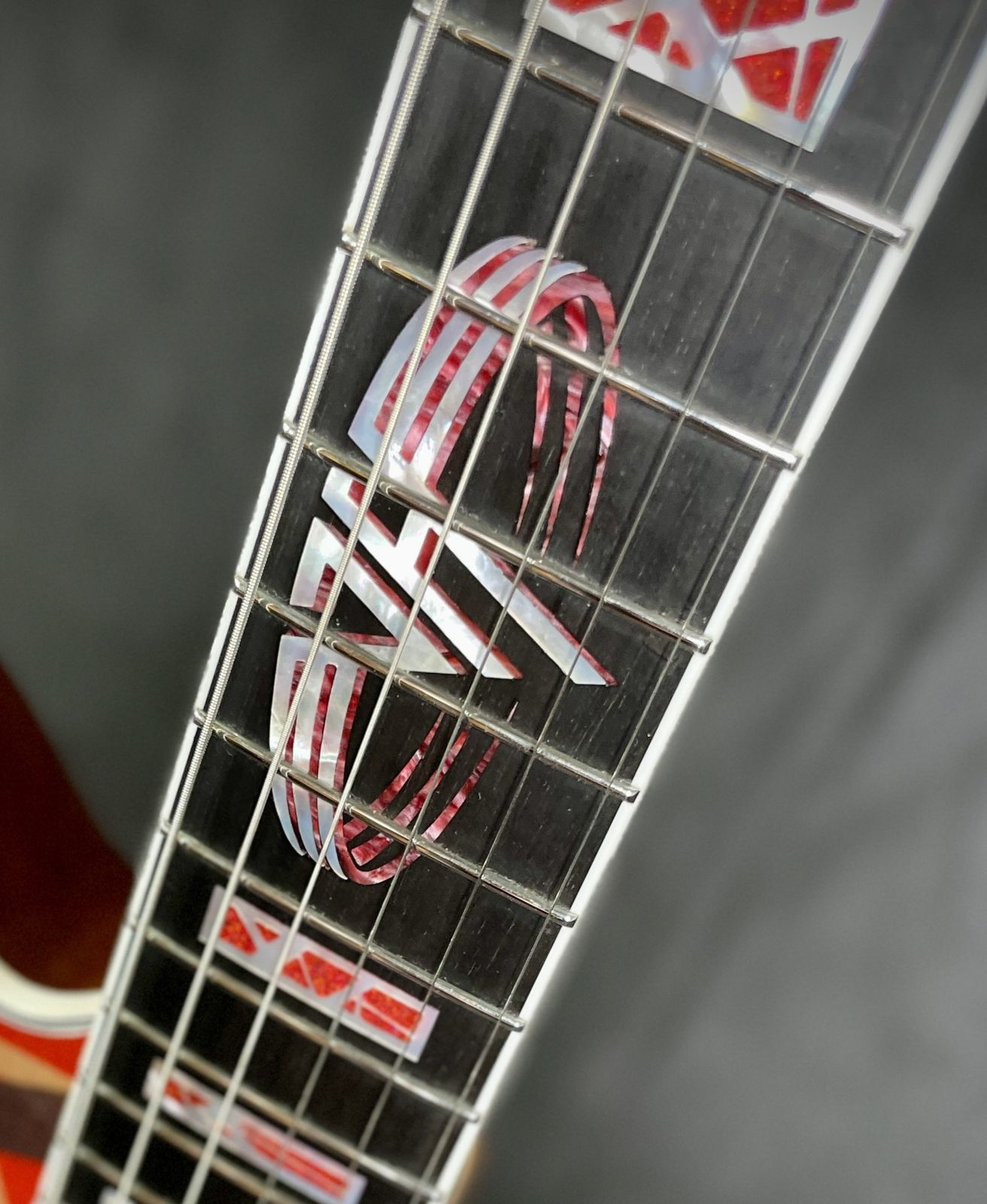

FRETBOARD: Bound Ebony with Multi-Color 12th Fret Inlay Featuring VH 5150 Globe logo in MoP. MoP blocks with Embedded EVH Striped Pattern Inset with Crushed Red Opal
SCALE: 25”
NUT WIDTH: 1.6875” – Floyd Rose R3 Locking Nut
FRETBOARD RADIUS: 12”
FRETS: 24 Medium Stainless Steel Jescar
BRIDGE: Original Floyd Rose with EVH D-Tuna in Chrome
PICKUP: Seymour Duncan ’78 Model Trembucker
ELECTRONICS: Audio Taper Volume with Treble-Bleed Circuit
TUNERS: Gotoh Mini 3x3
FINISH: Nitrocellulose Lacquer

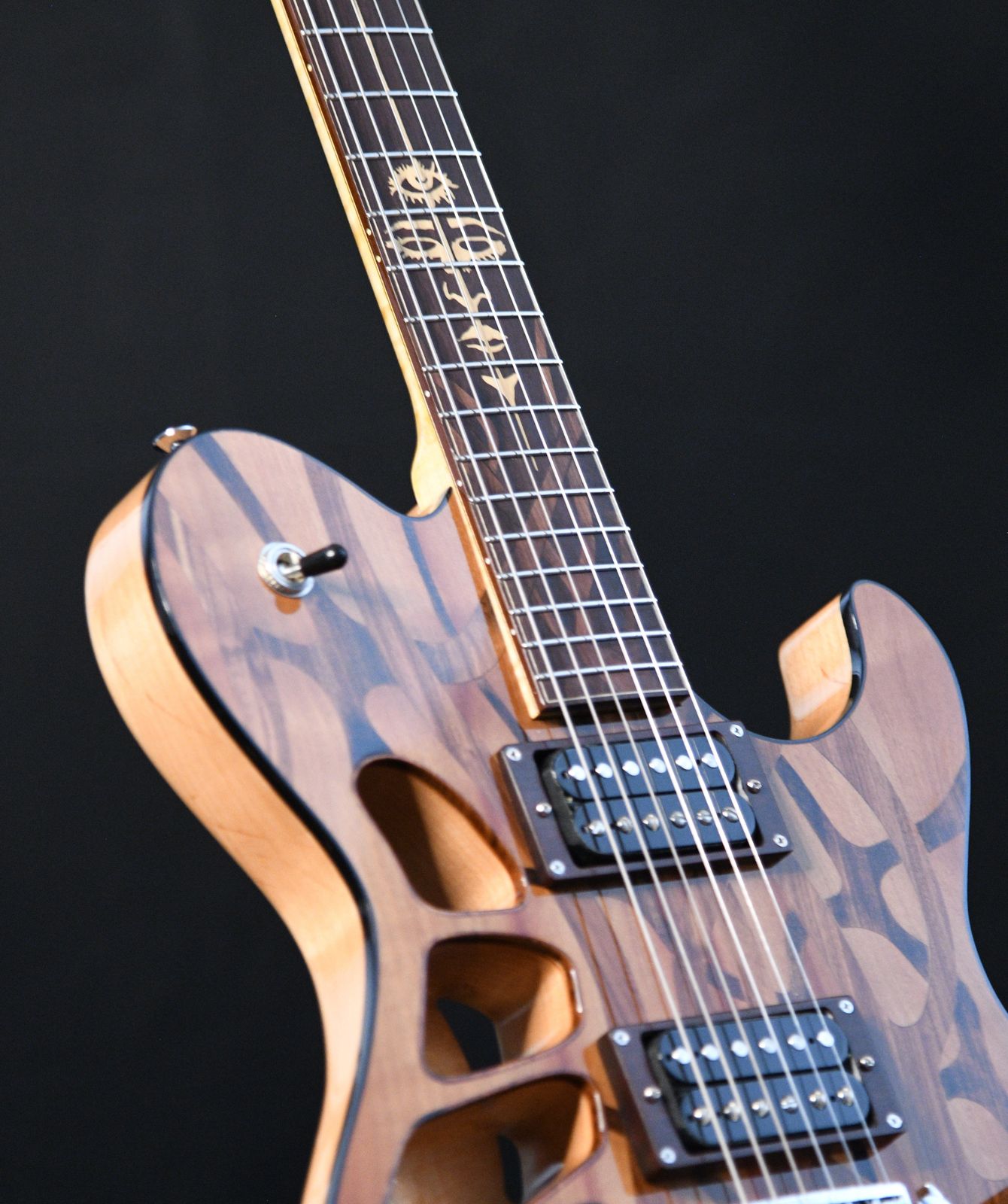

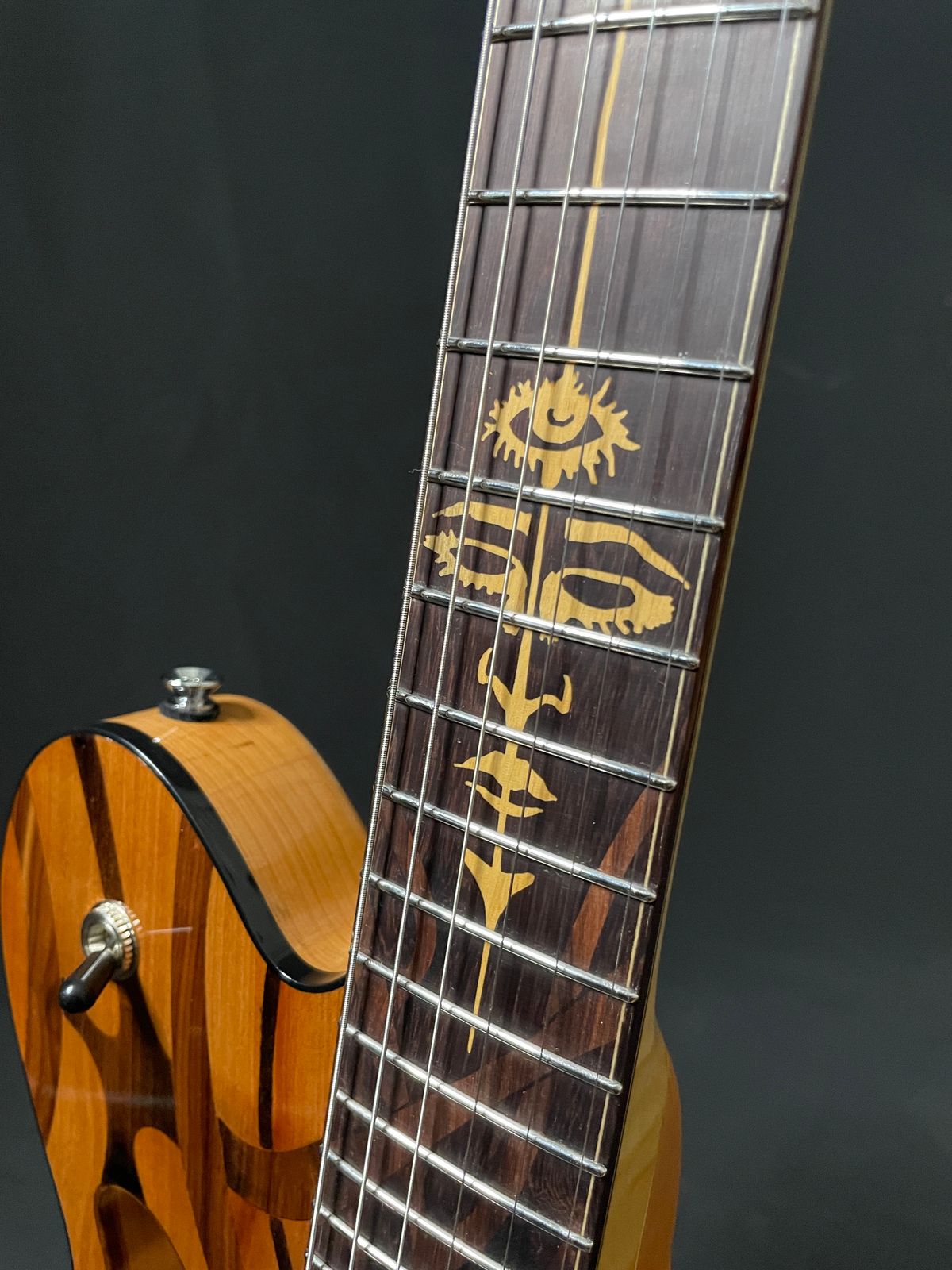

Third Eye
Highway Star
Top Jimmy
Bubinga Birdseye
Lady Justice
The Atomic Punk
The Mustang
The Cowboy

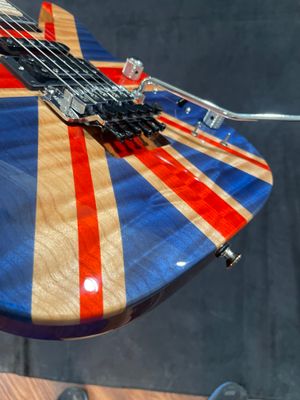

Union Jack

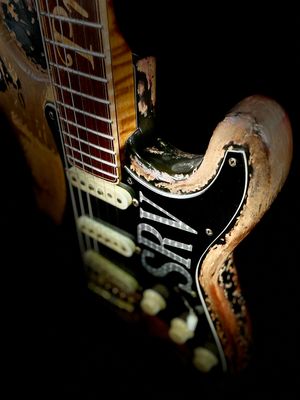

Pride and Joy SRV Tribute
