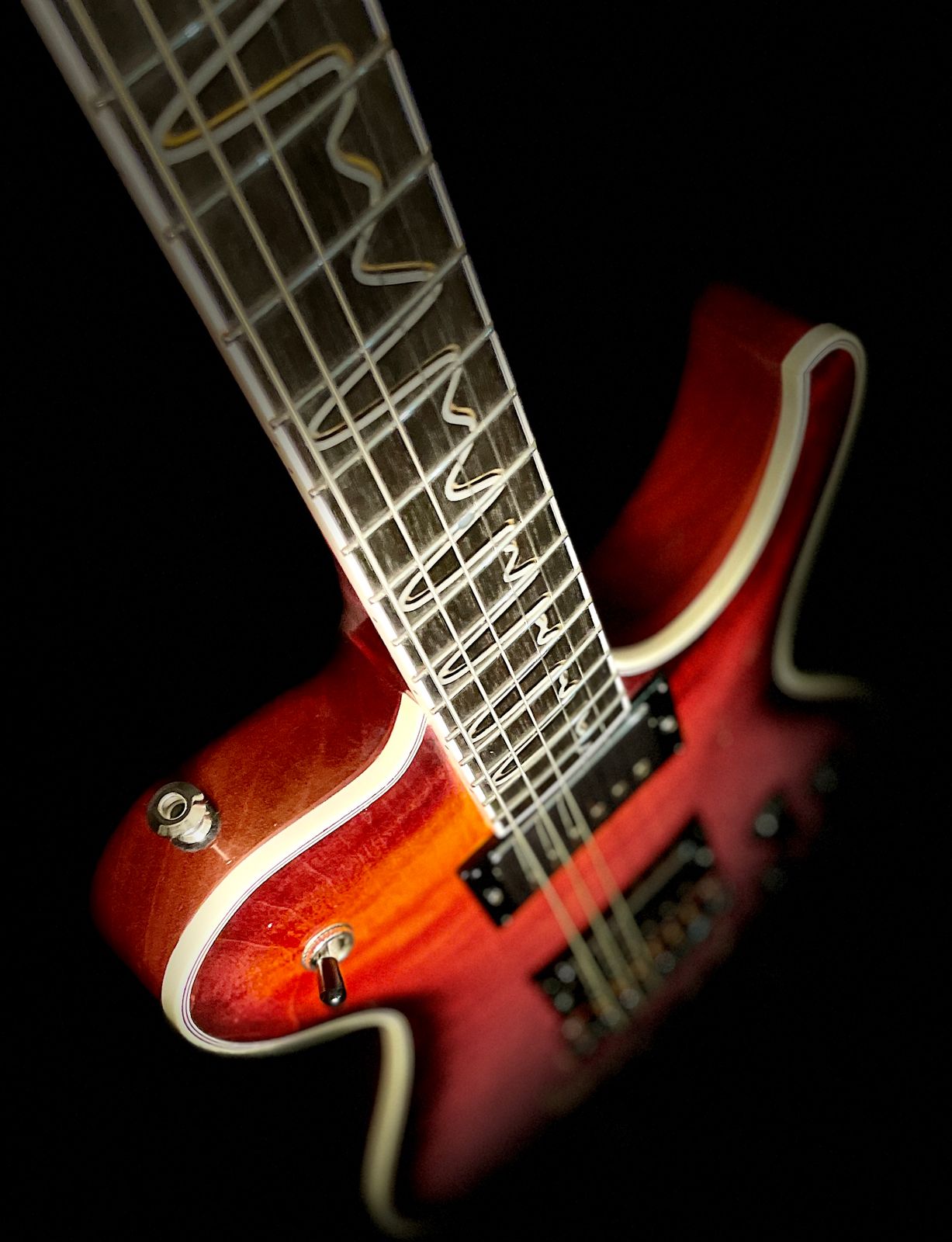

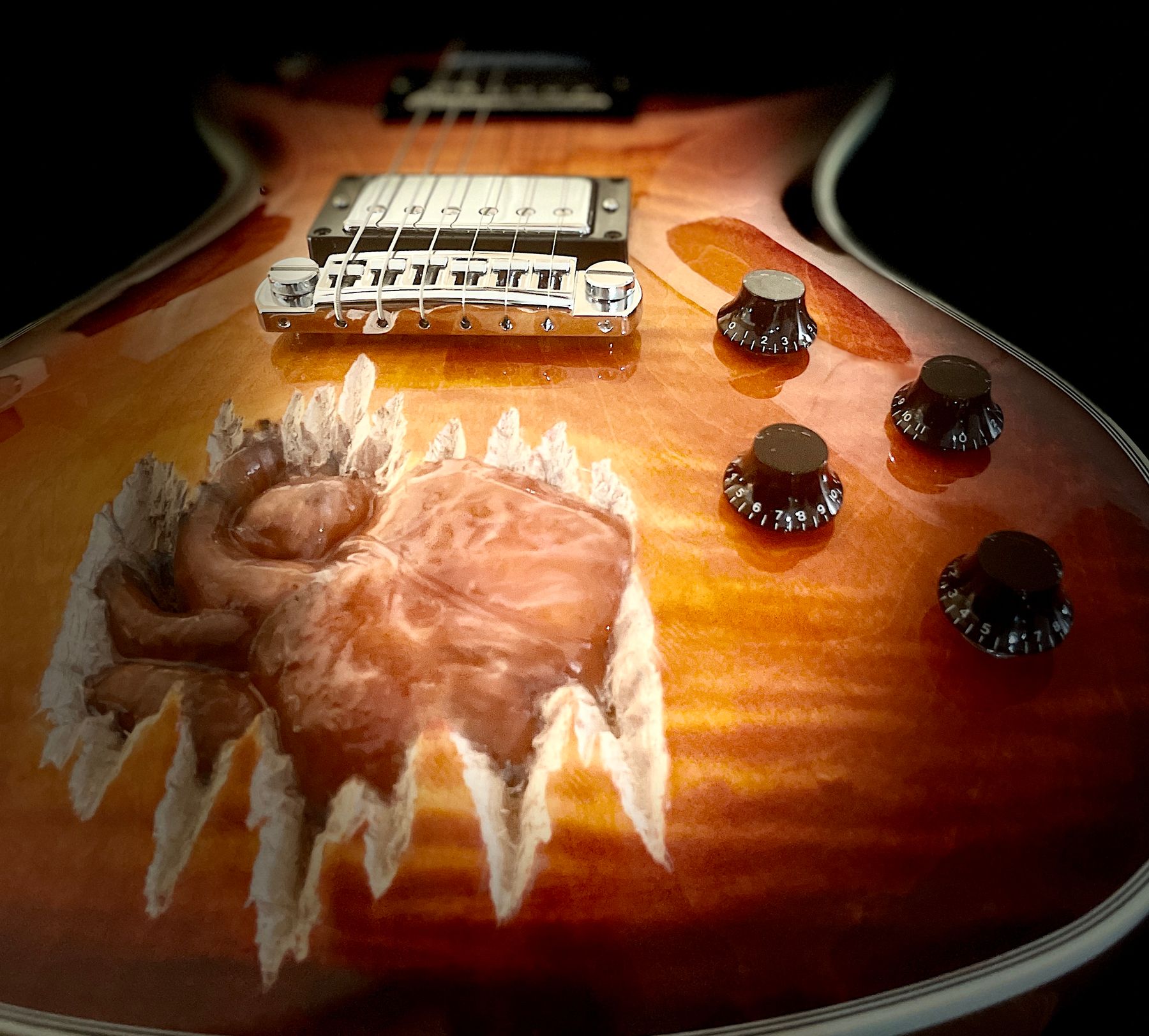

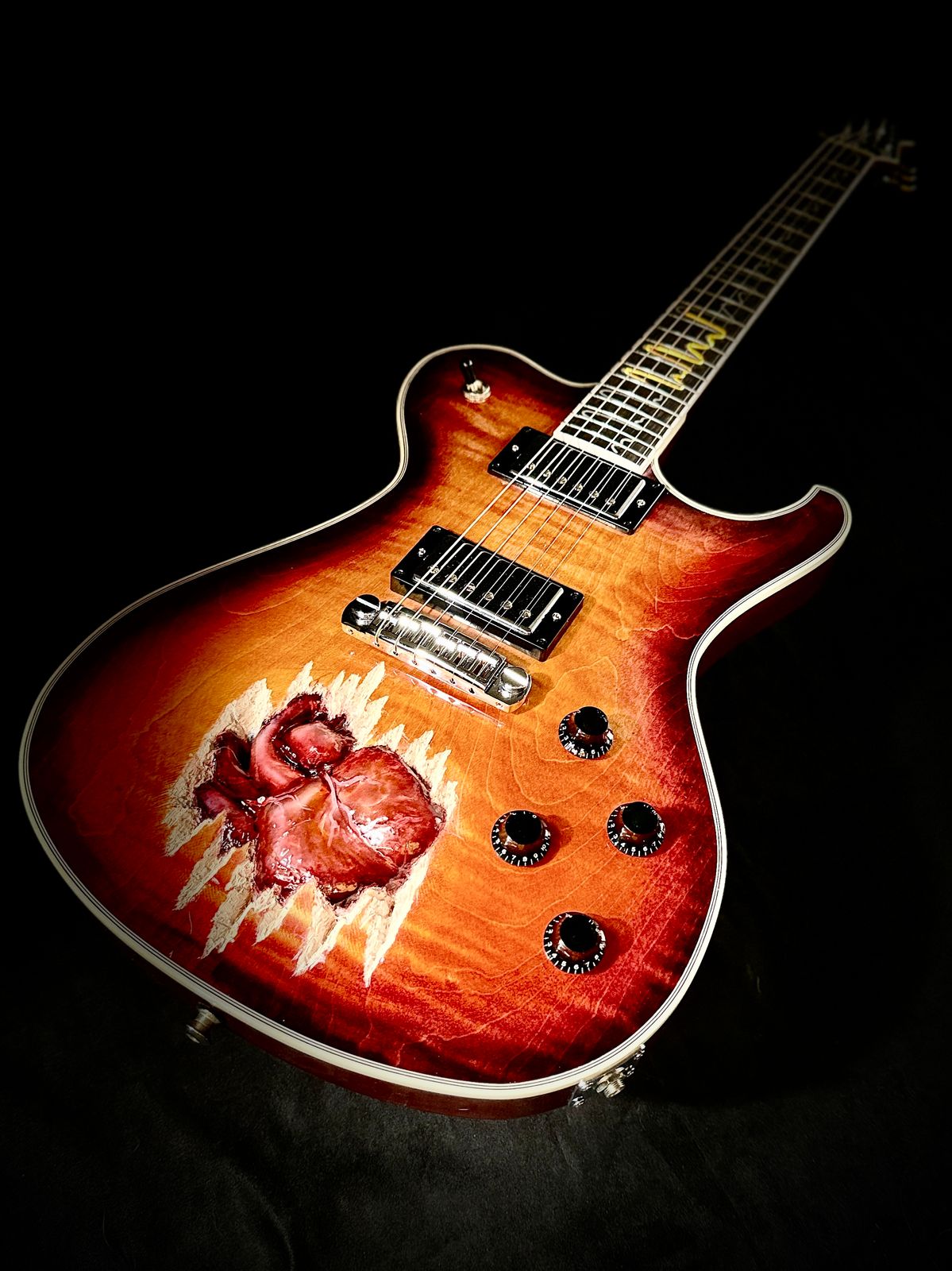

Beating Heart

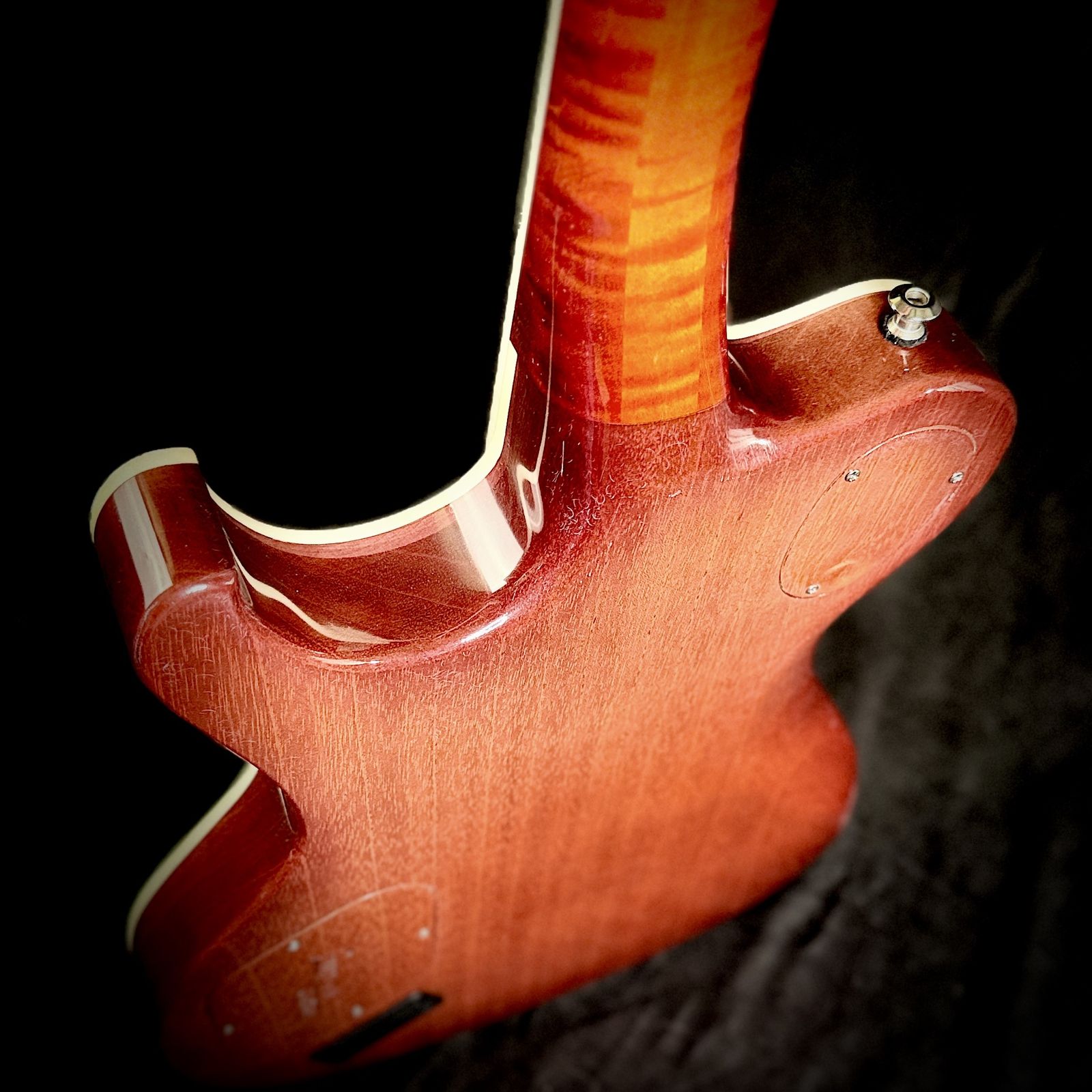

BODY: Spanish Cedar
TOP: Flame Maple Tobacco Burst with Illuminated 3D-Beating Heart breaking through the top
NECK: 3-Piece Flame Maple Tobacco Burst
FRETBOARD: Ebony
SCALE: 25”
NUT WIDTH: 1.6875”
FRETBOARD RADIUS: 12”
FRETS: 22 Medium Stainless Steel Jescar

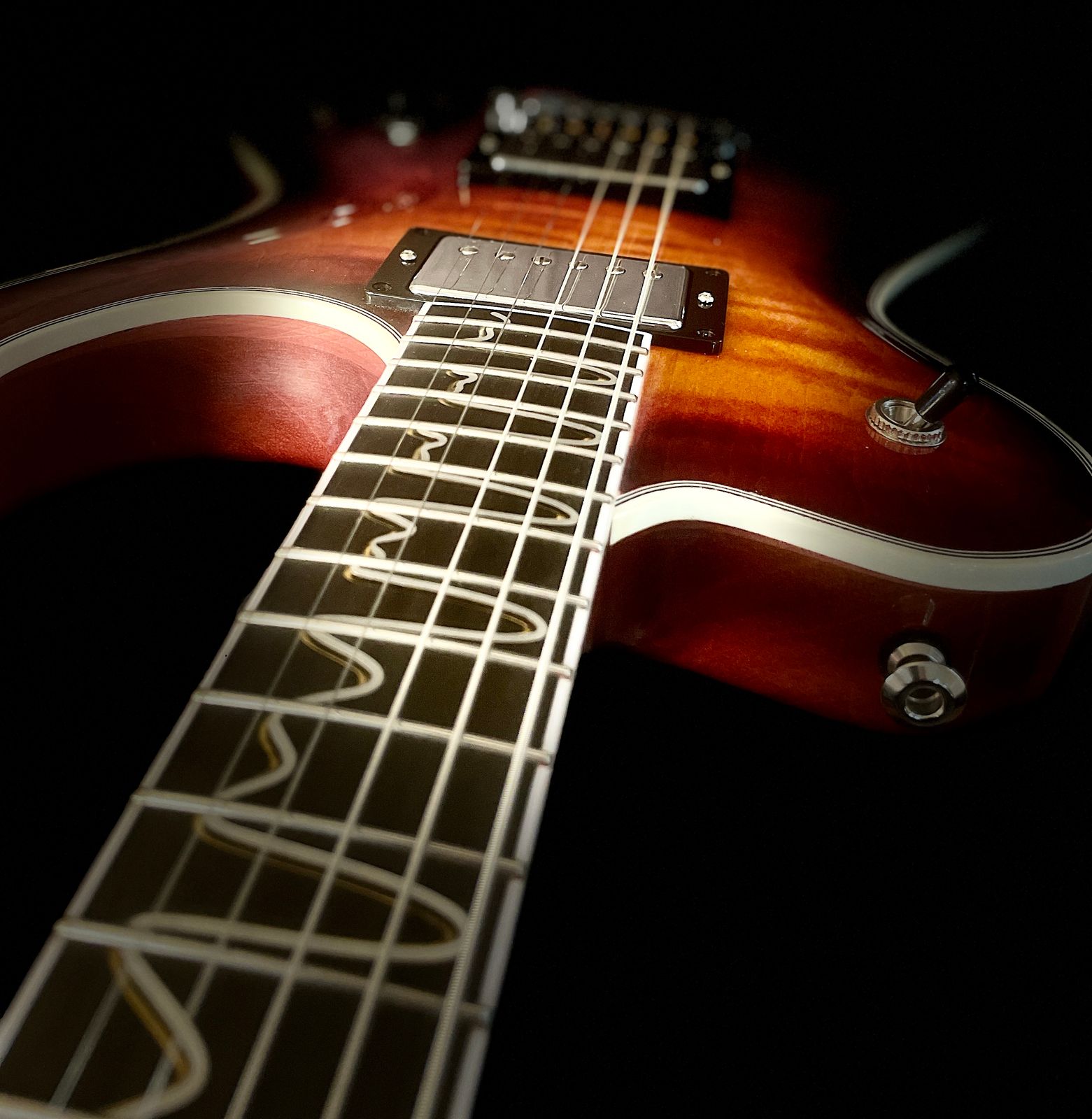

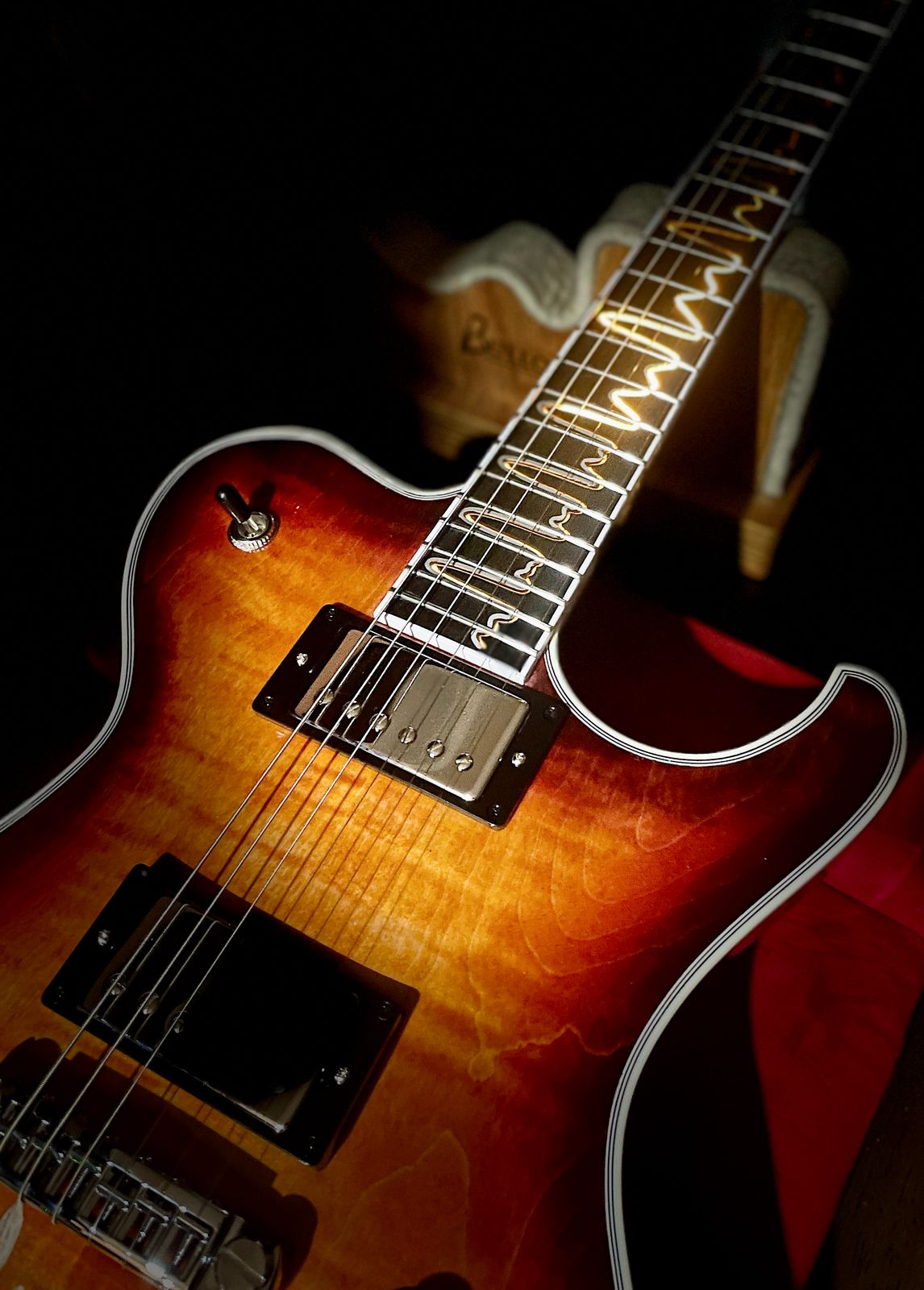

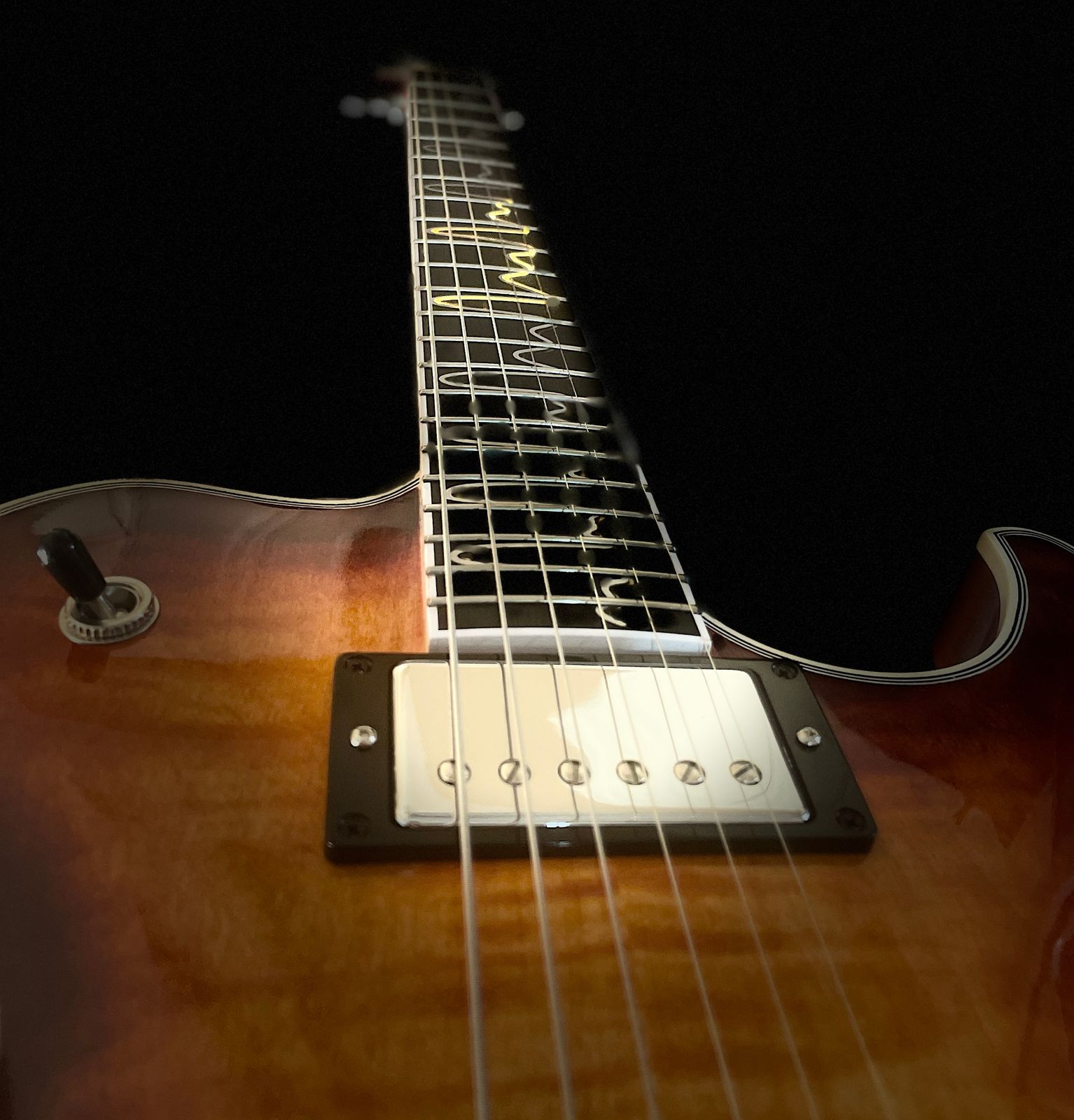

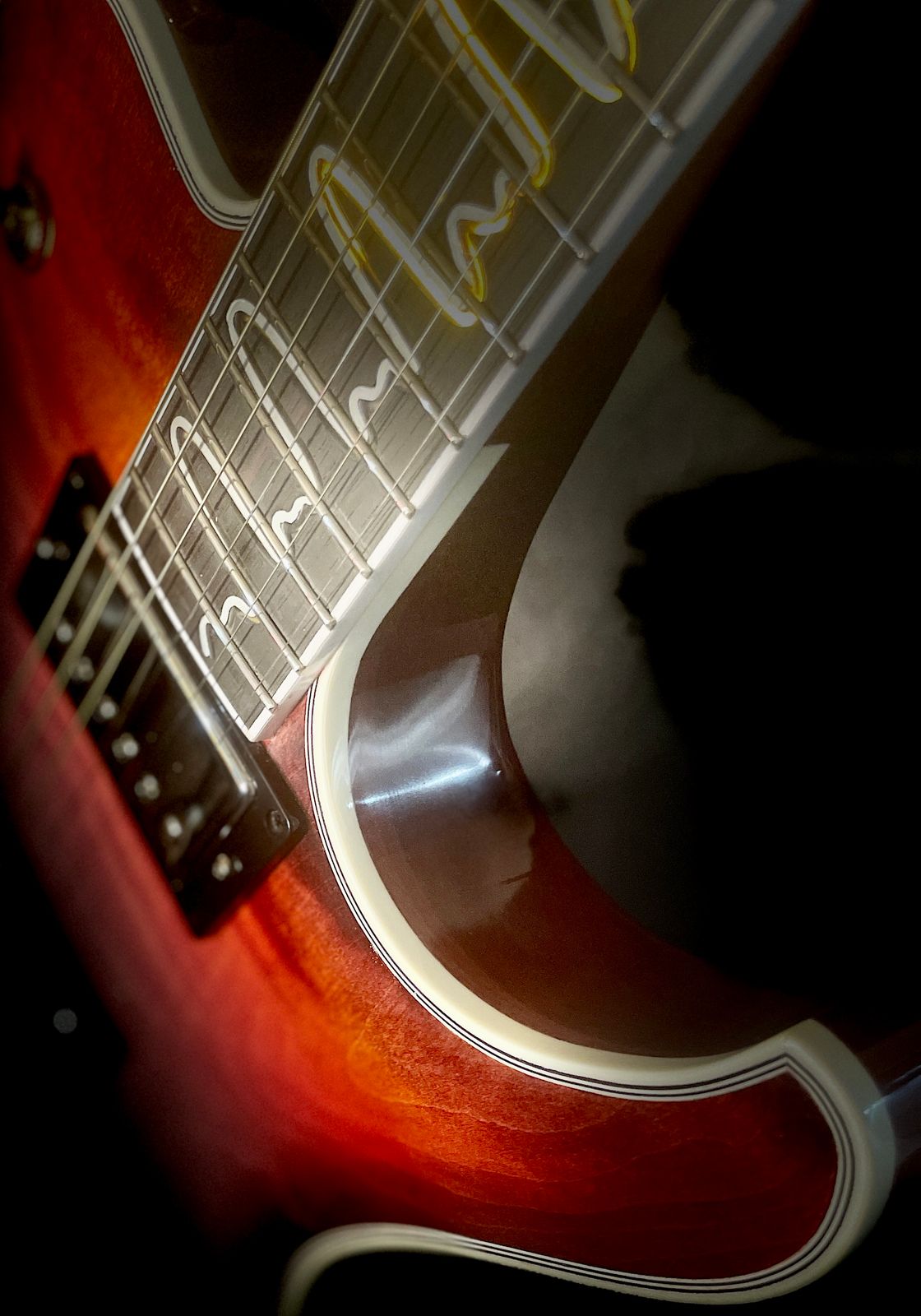

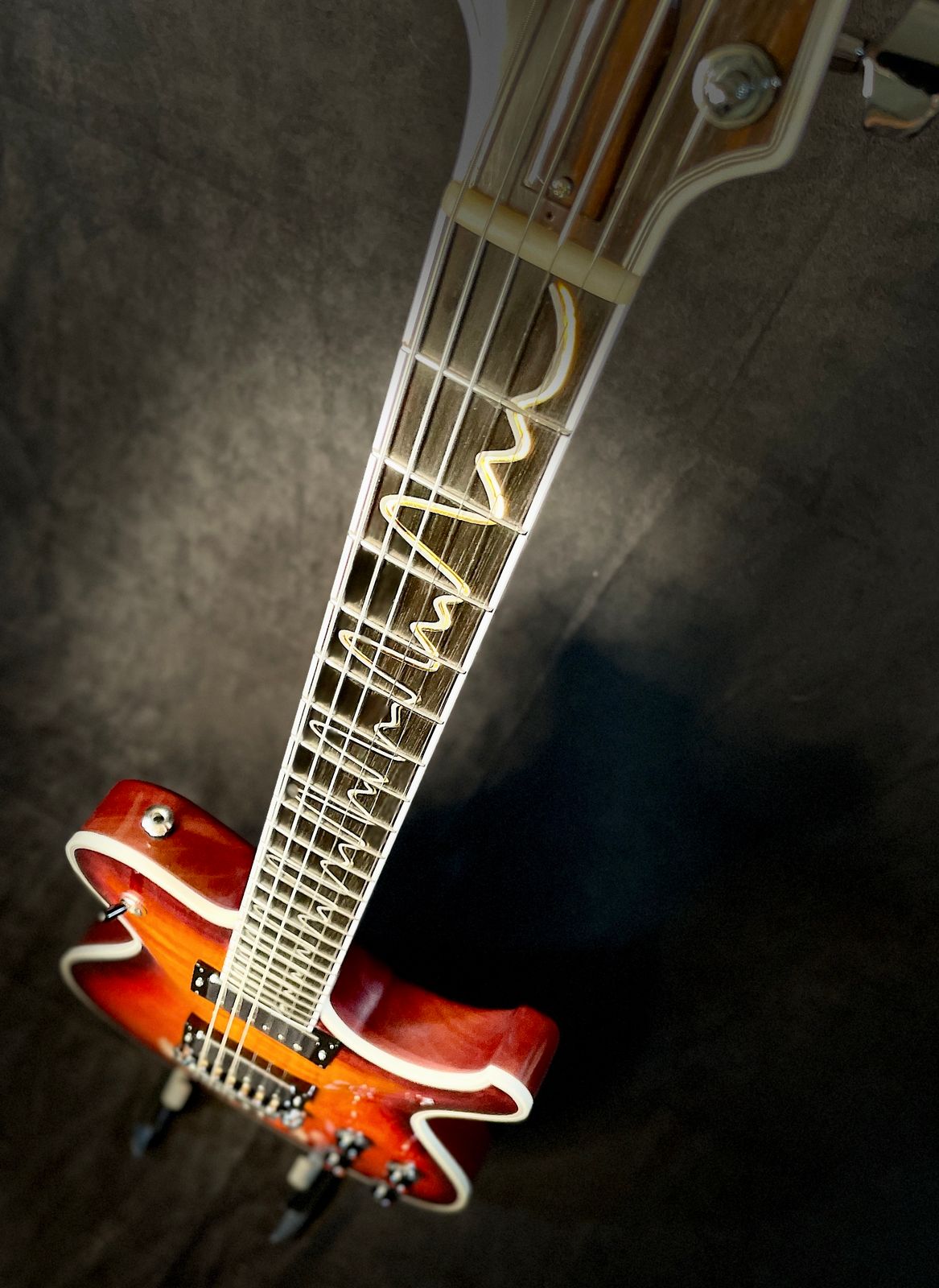

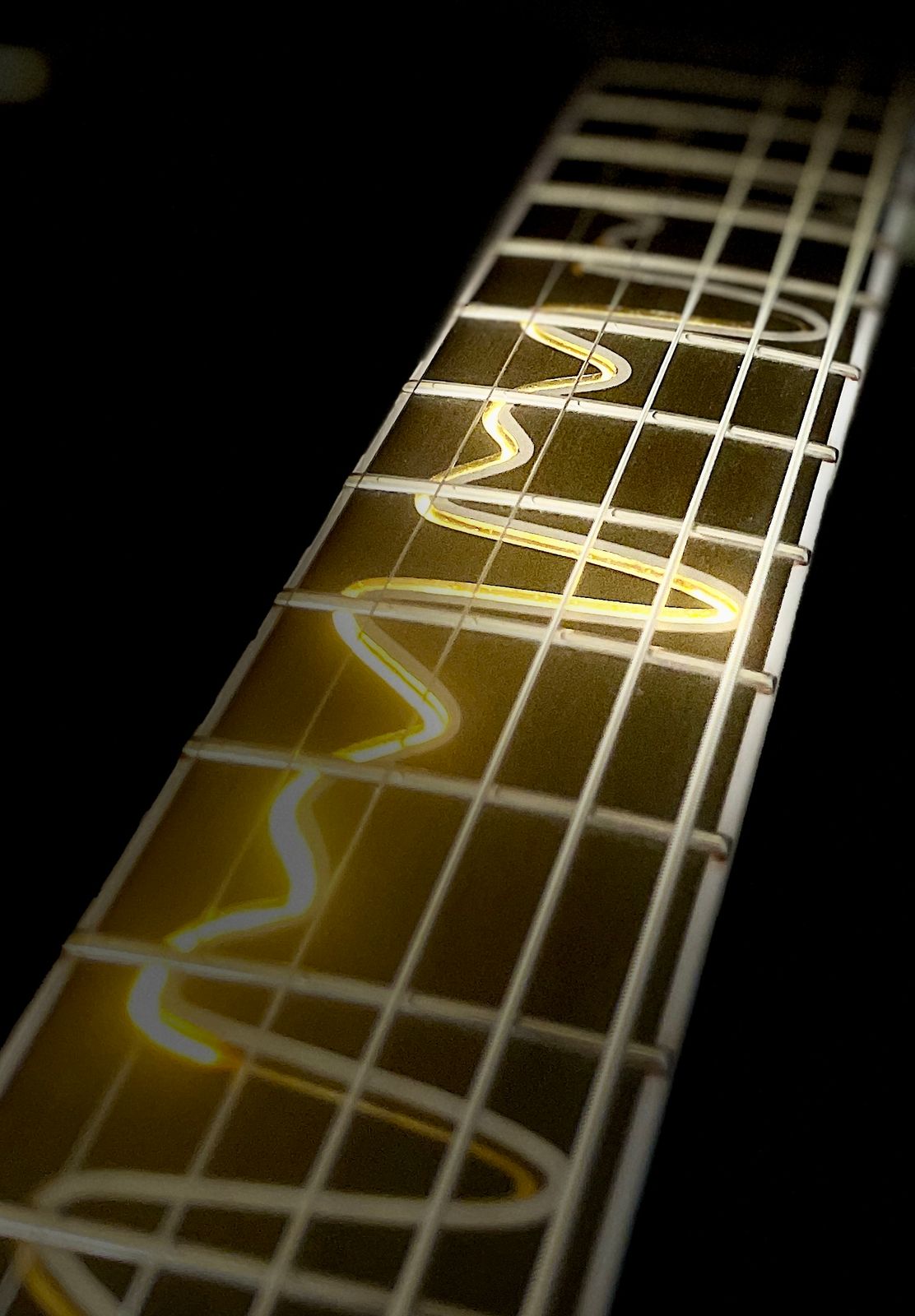

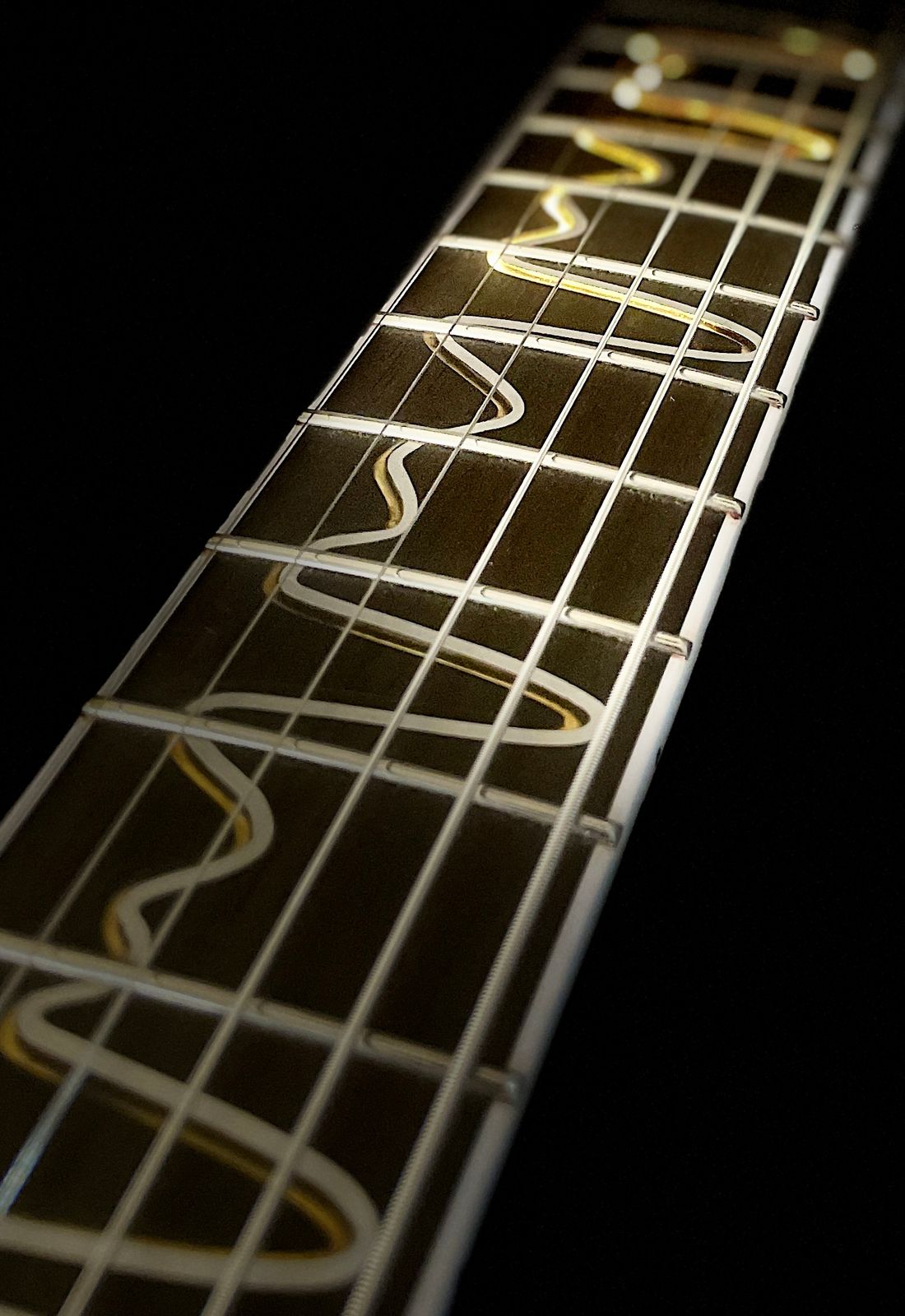

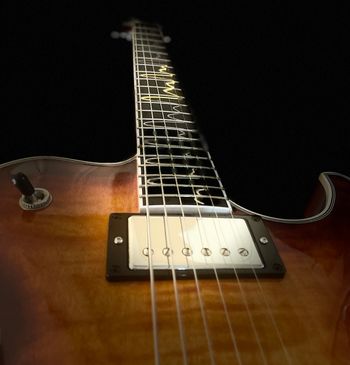

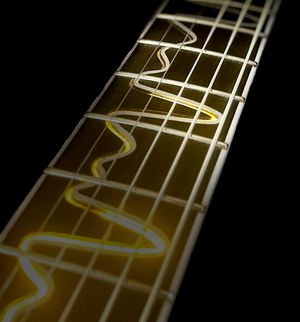

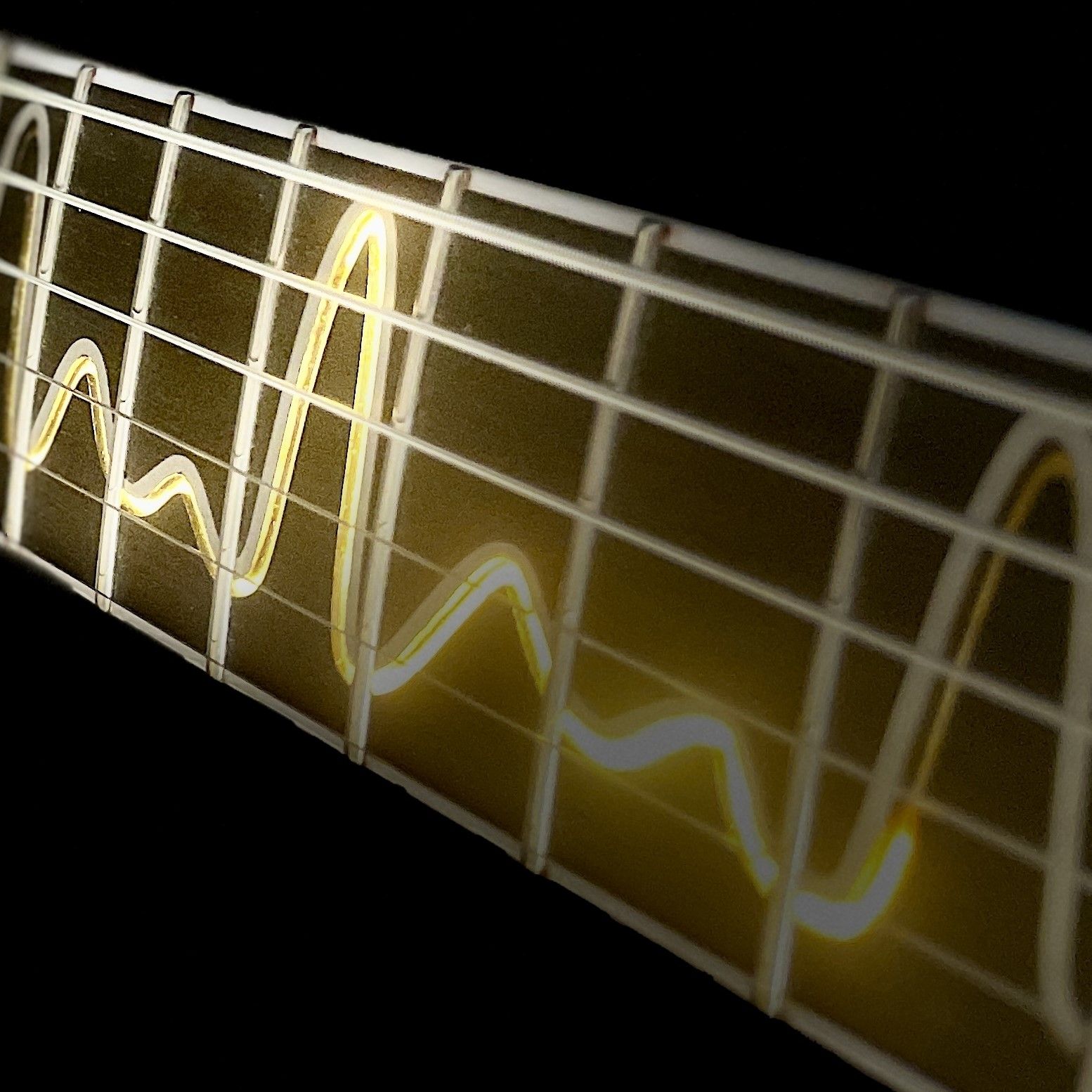

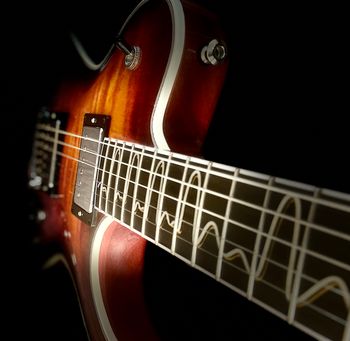

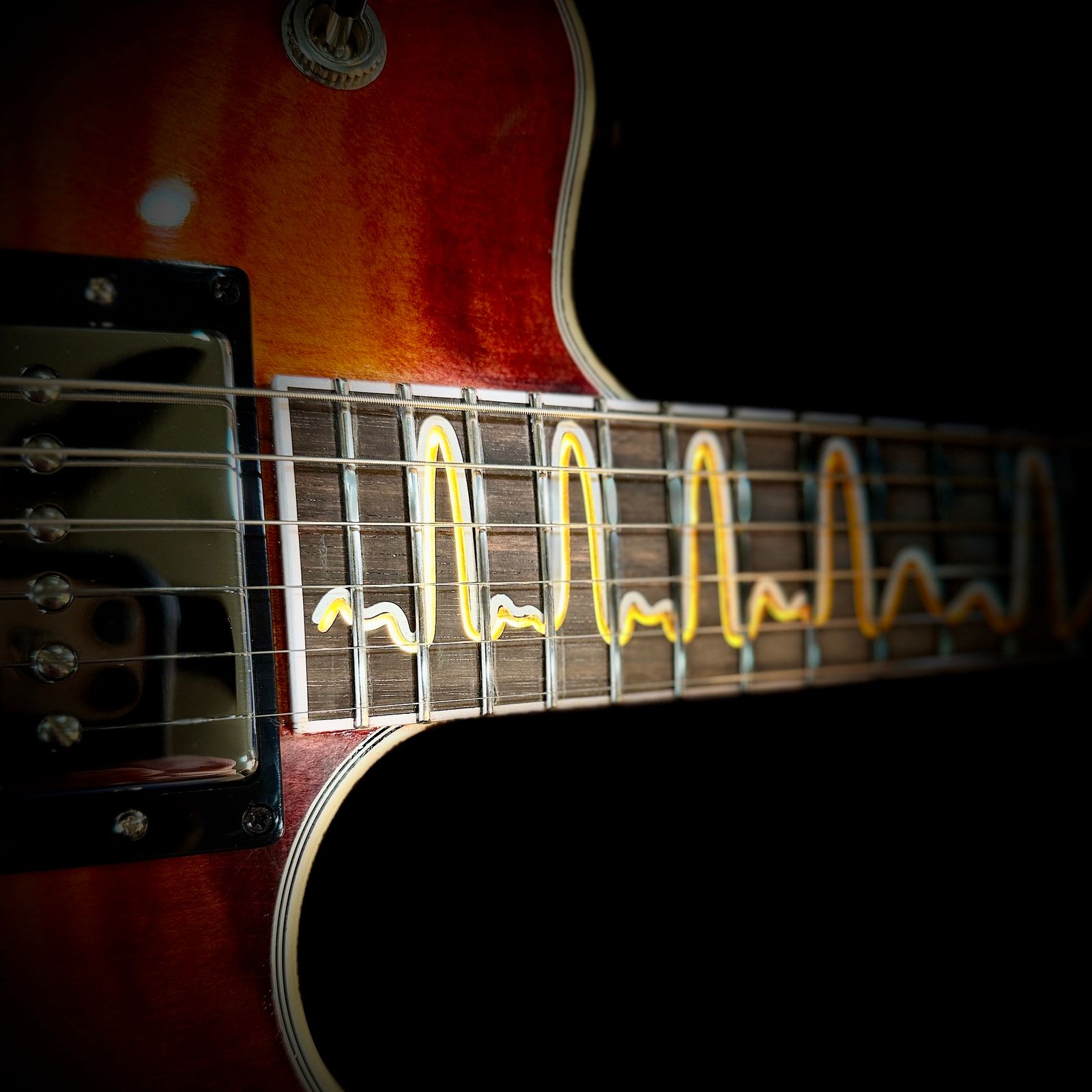

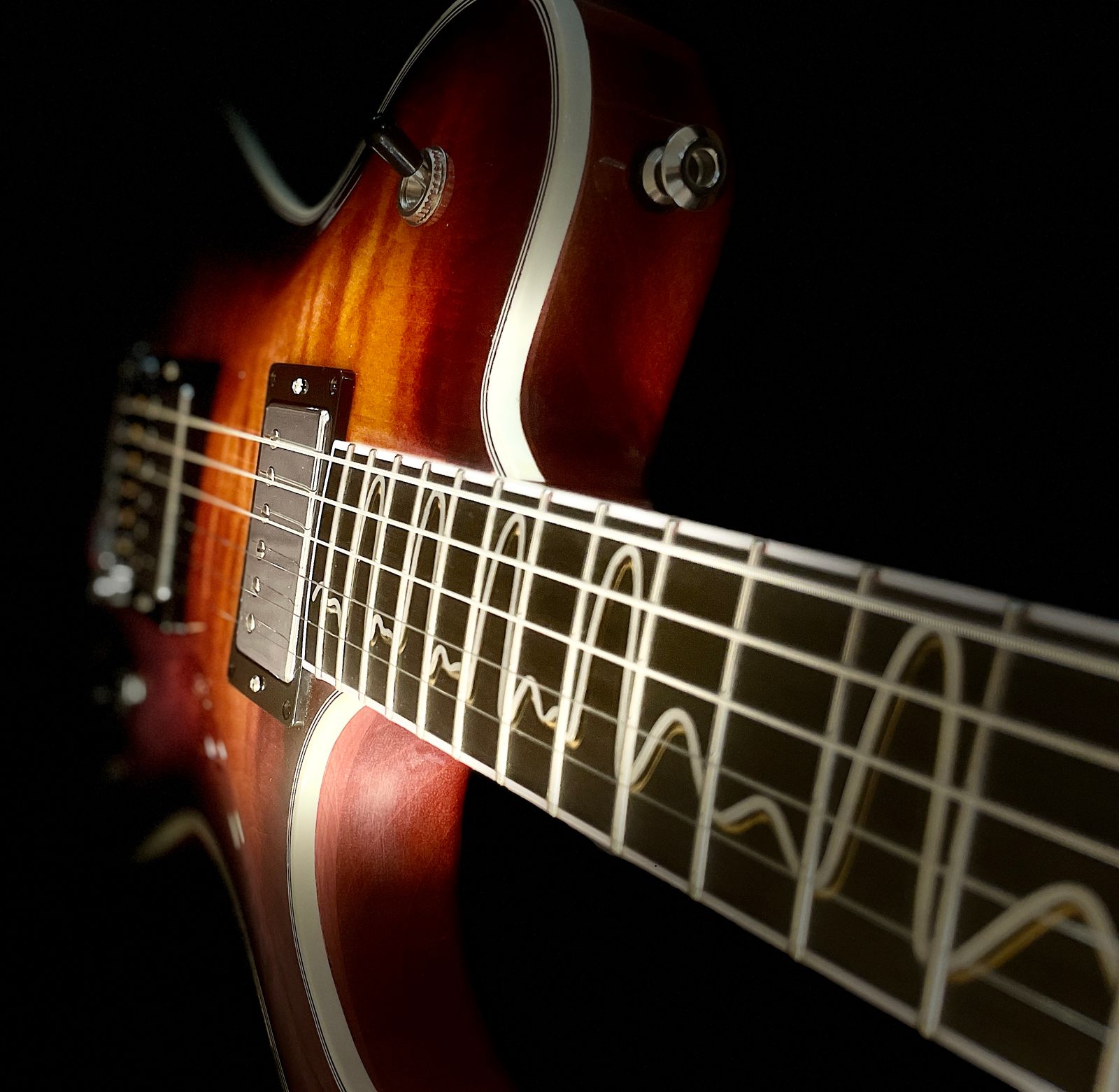

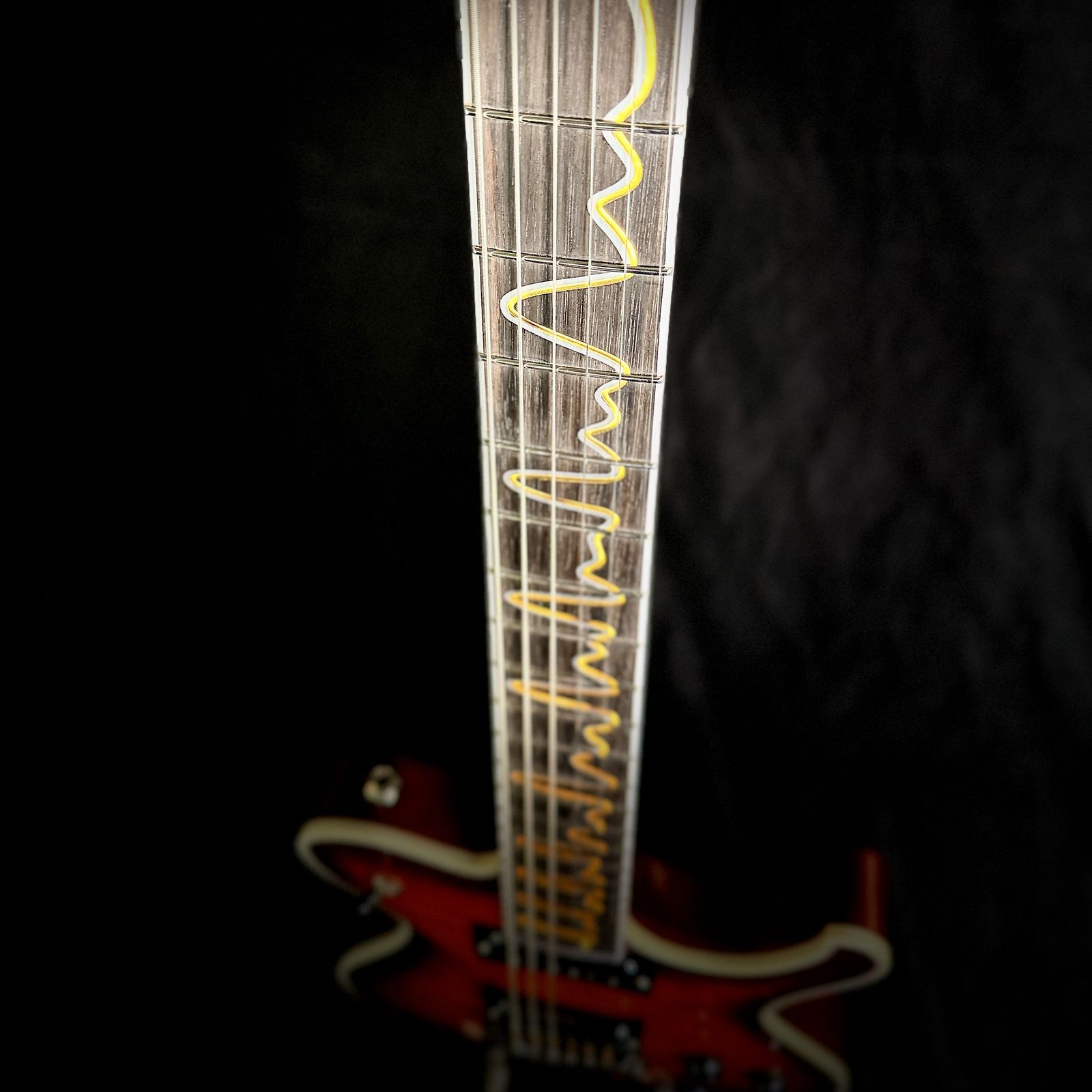

INLAY: Aluminum EKG Pulses backlit with embedded lights
BRIDGE: Tone-Pros Locking Wrap-Around
PICKUPS: Mojotone Classic Humbuckers w/Chrome Covers
SWITCH: 3-Way Toggle with Black Tip
TUNERS: Gotoh 3x3 Chrome
FINISH: Nitrocellulose Lacquer
WEIGHT: 8.6 lbs.

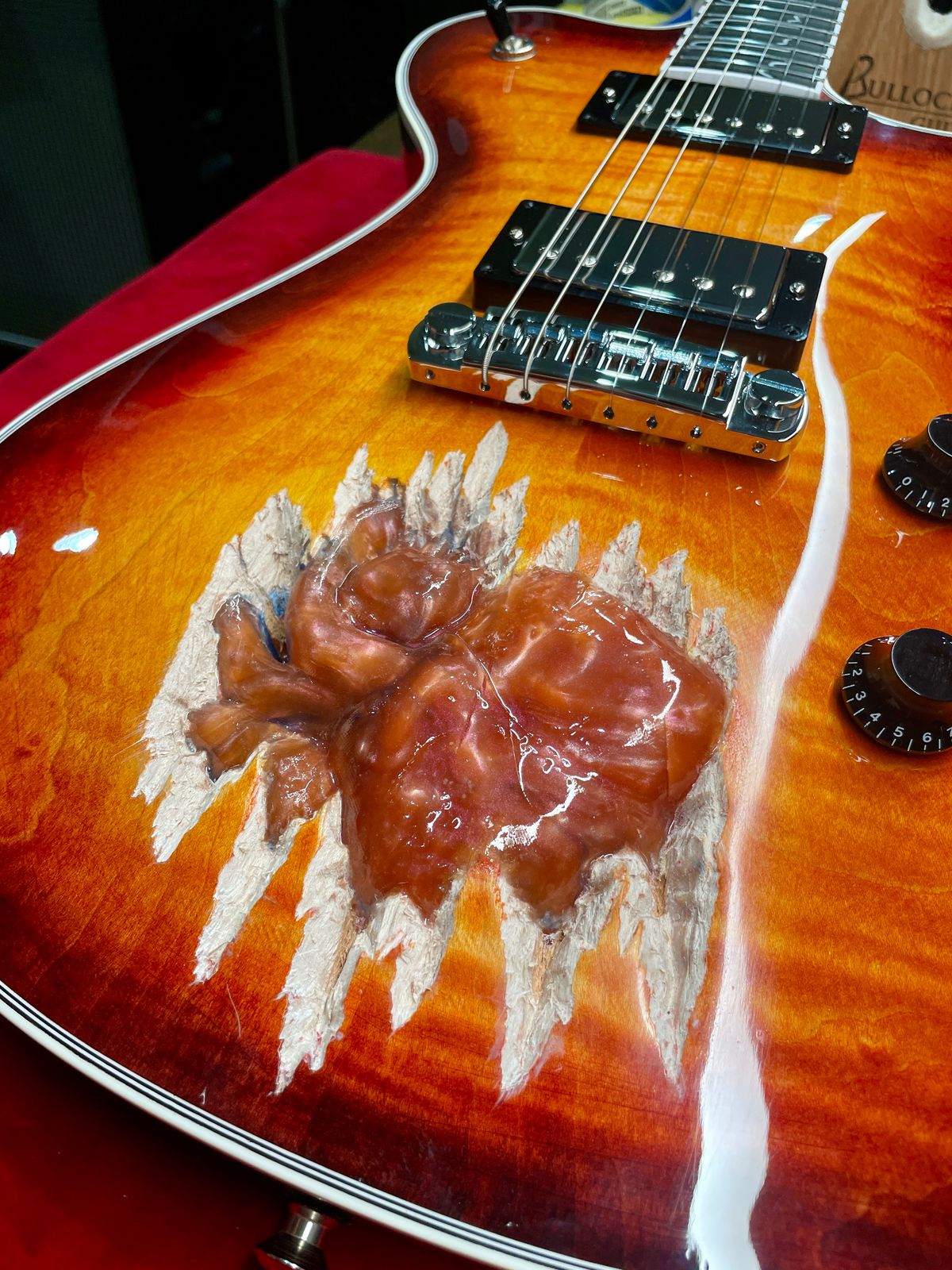

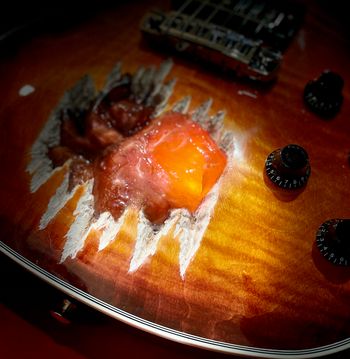

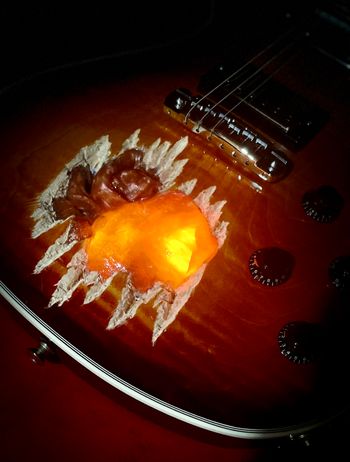

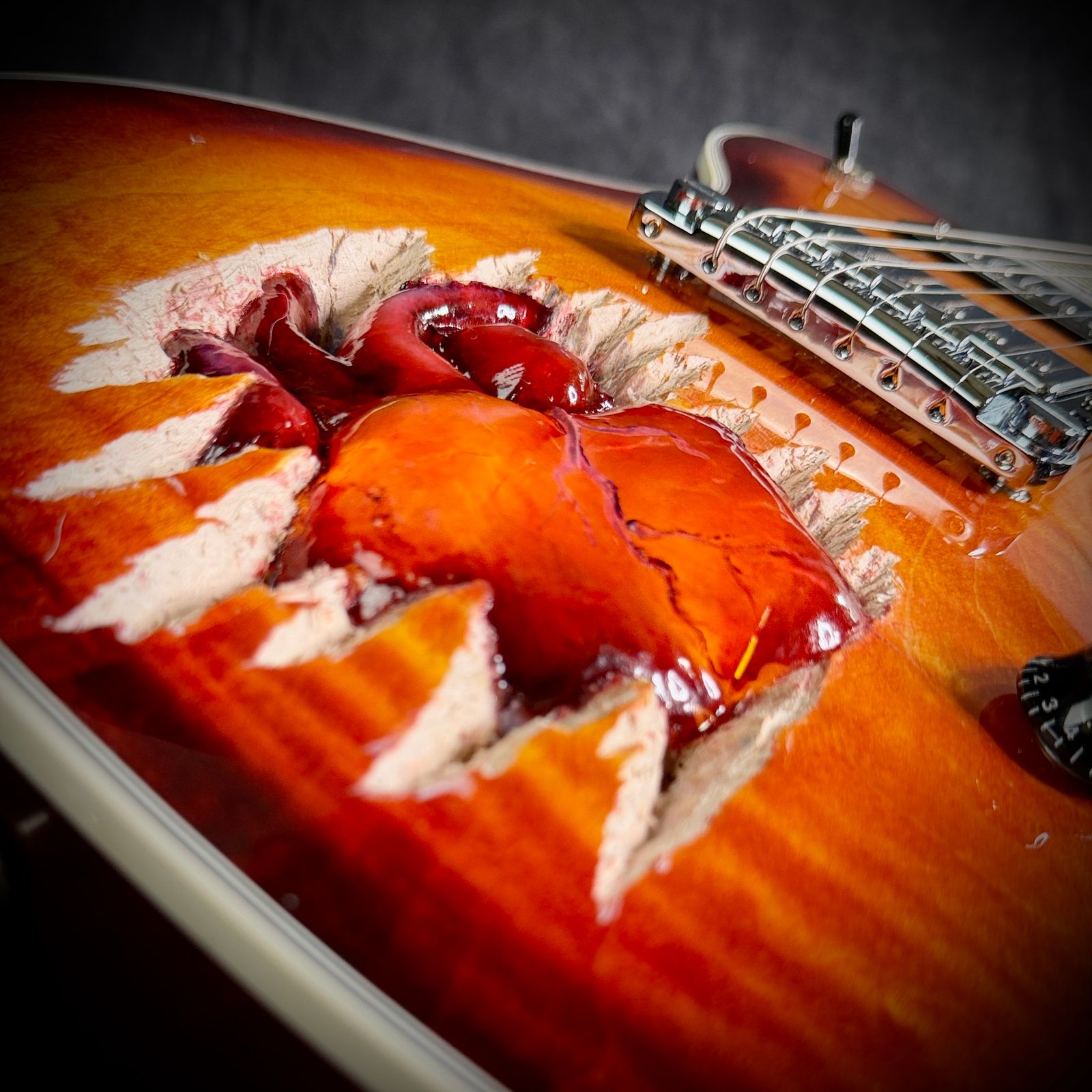

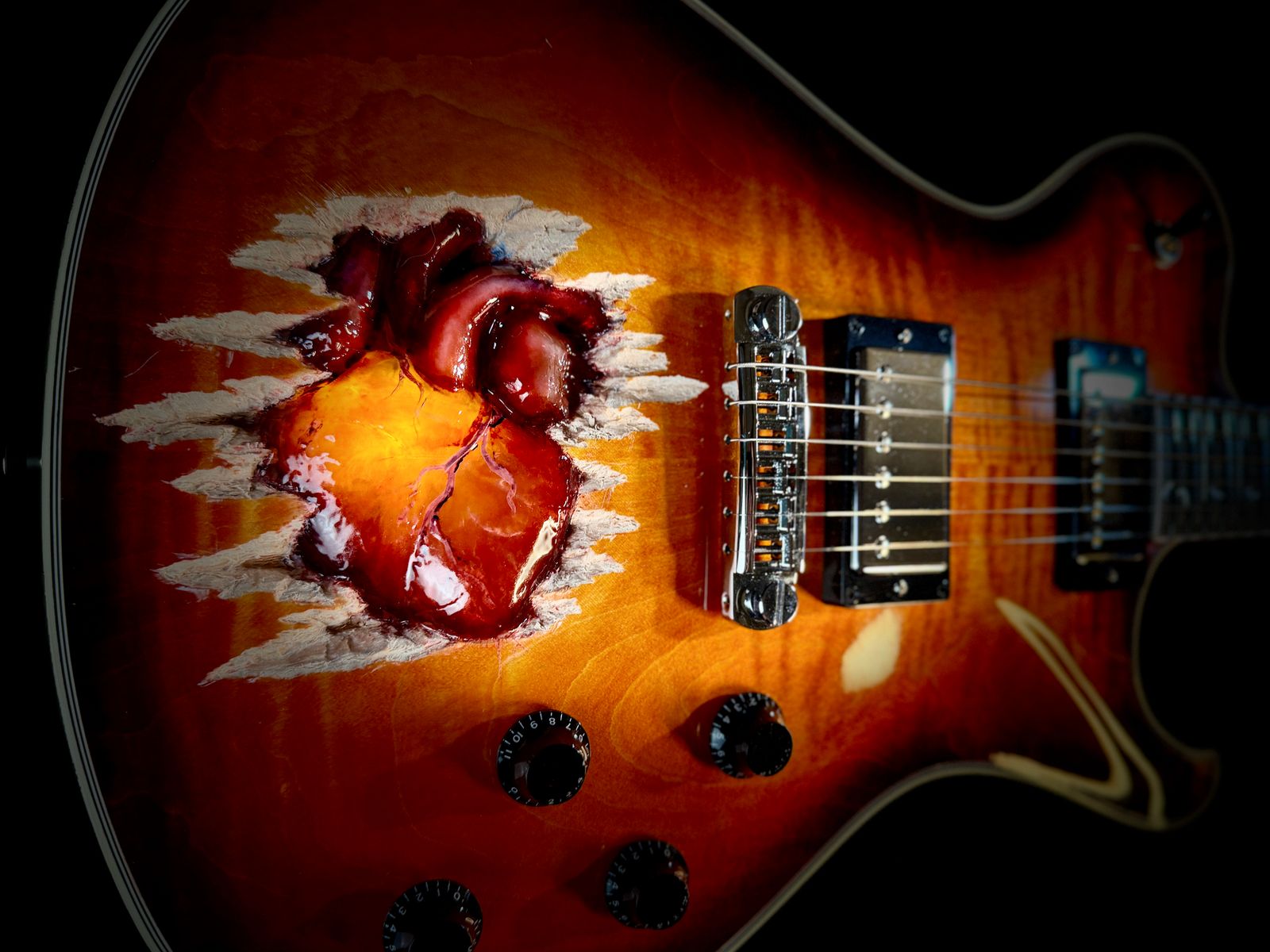

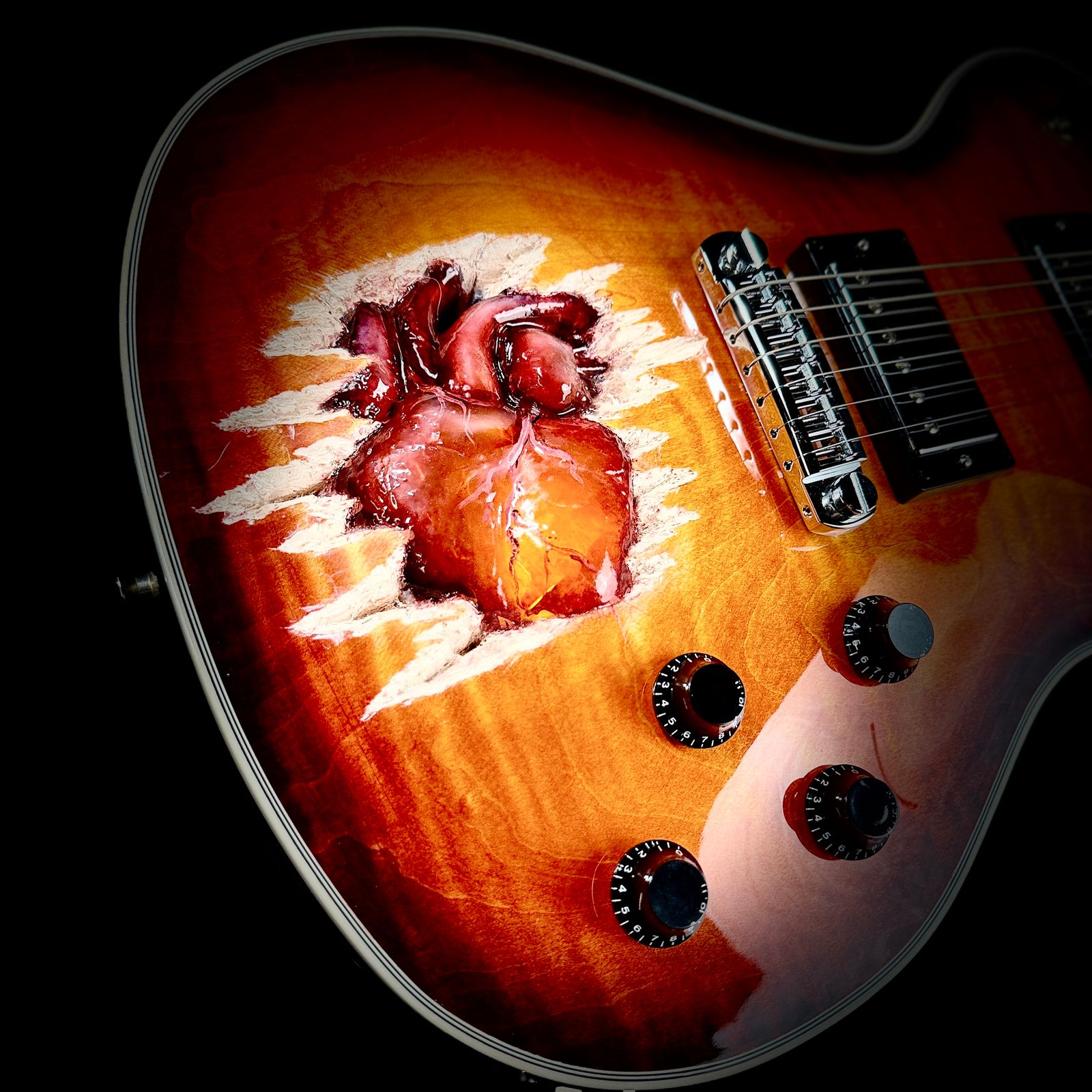

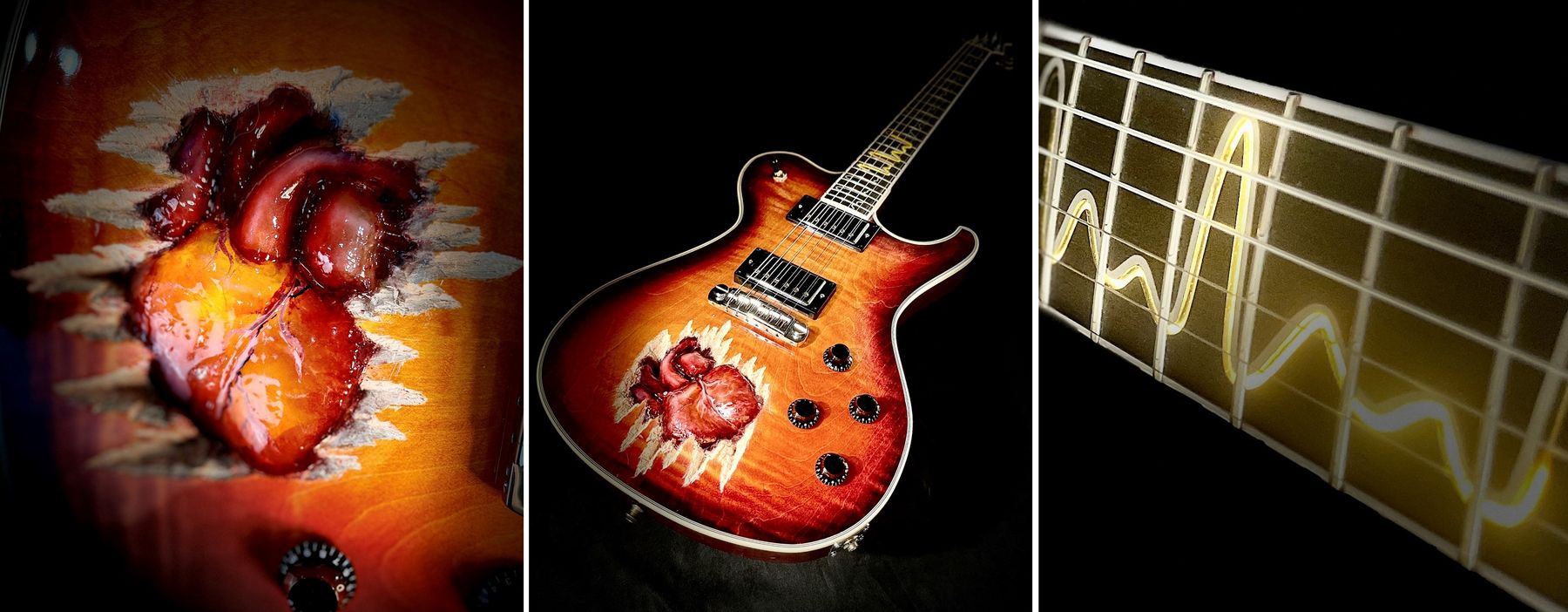

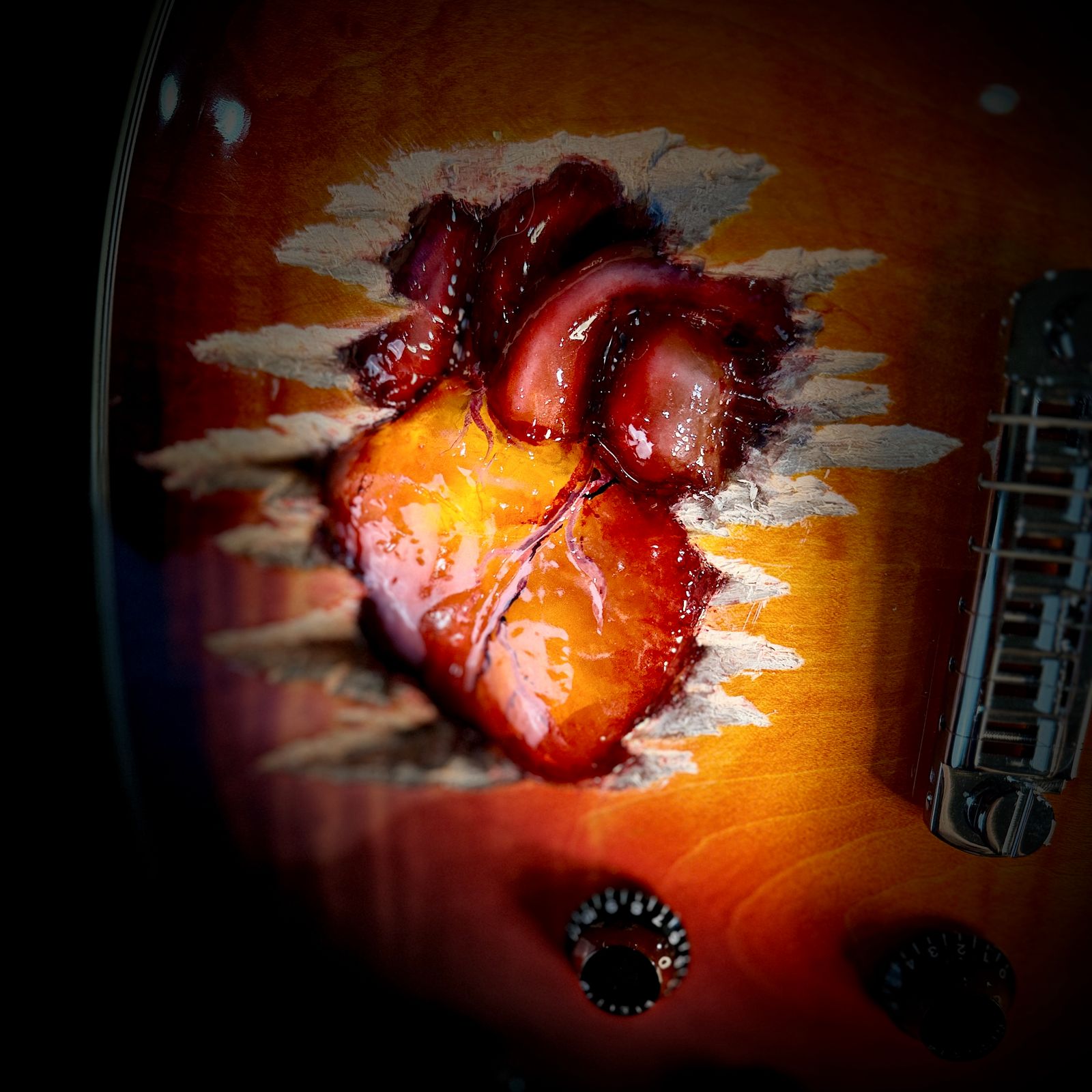

Realistic 3-dimensional beating heart carved into the guitar top with embedded lights that pulse to a natural heart rhythm. The fretboard contains integrated lights that follow the EKG inlays and pulse along with the heart rhythm. A Push-Pull knob turns on the heartbeat electronics and adjust the heartbeat frequency. A second knob can select one of several patterns of the heartbeat and fretboard EKG. See the social media pages for visual examples.

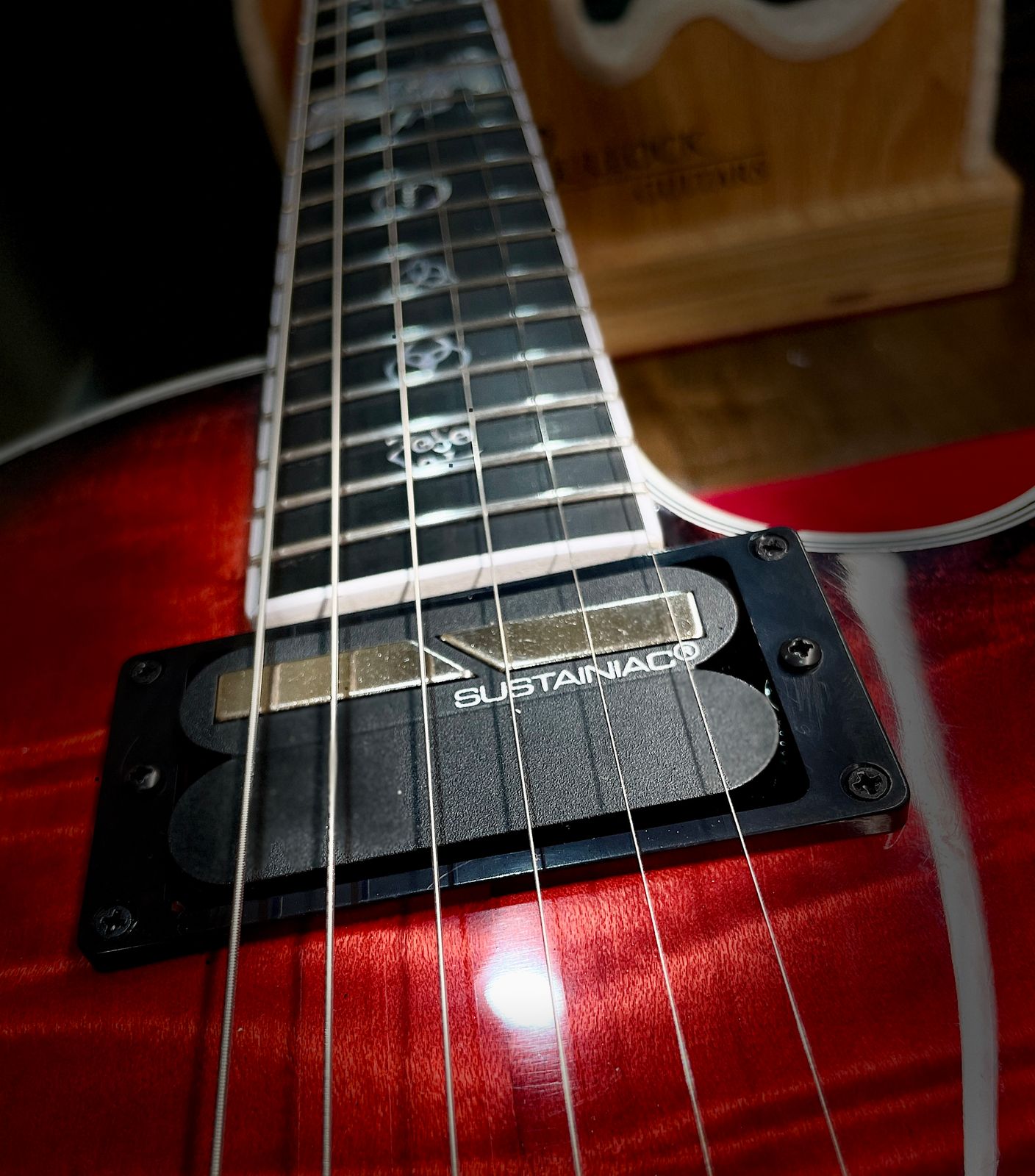

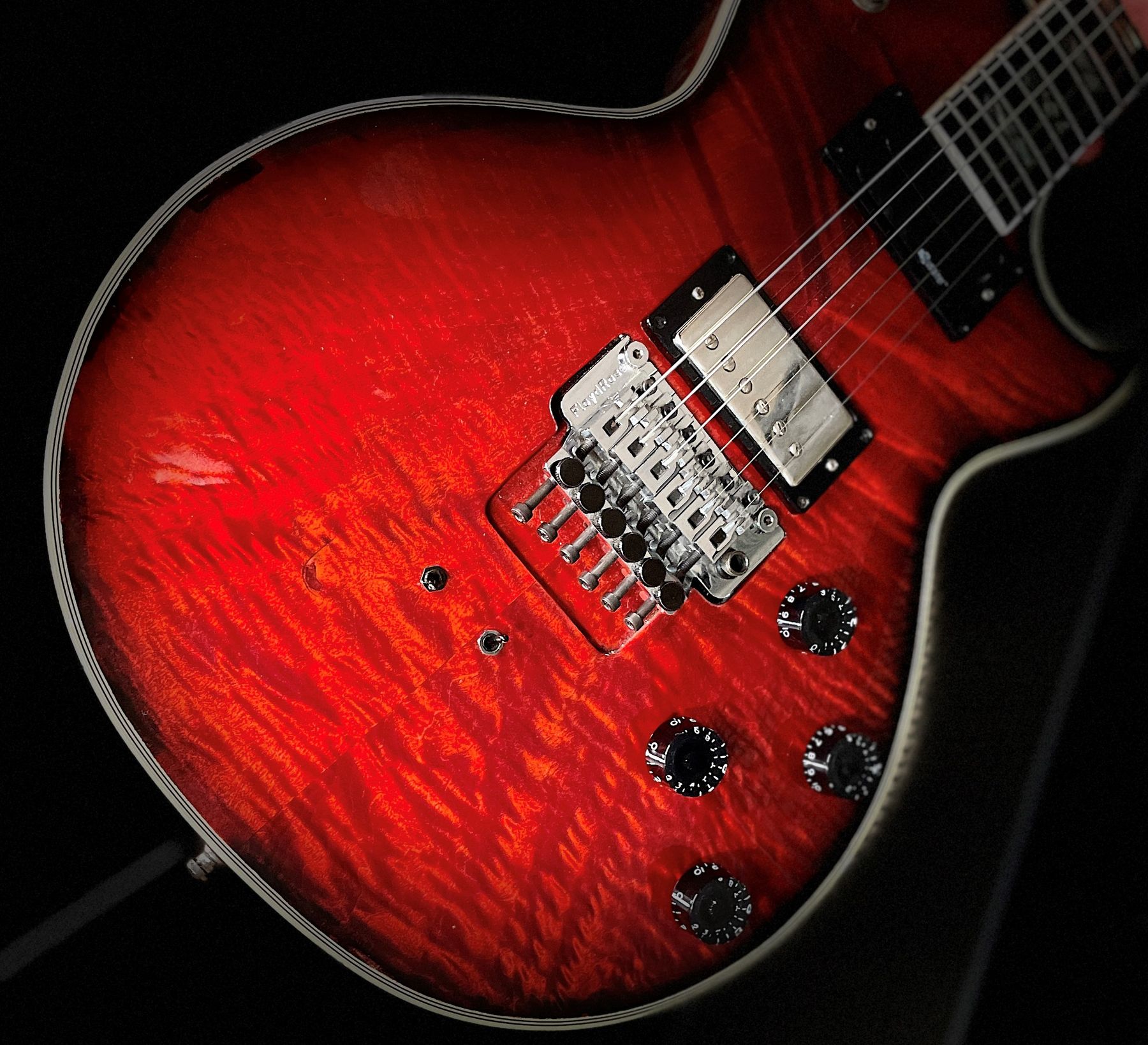

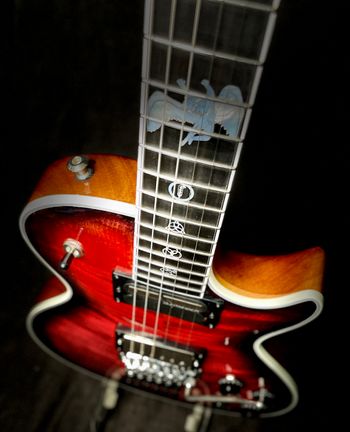

Red Zeppelin

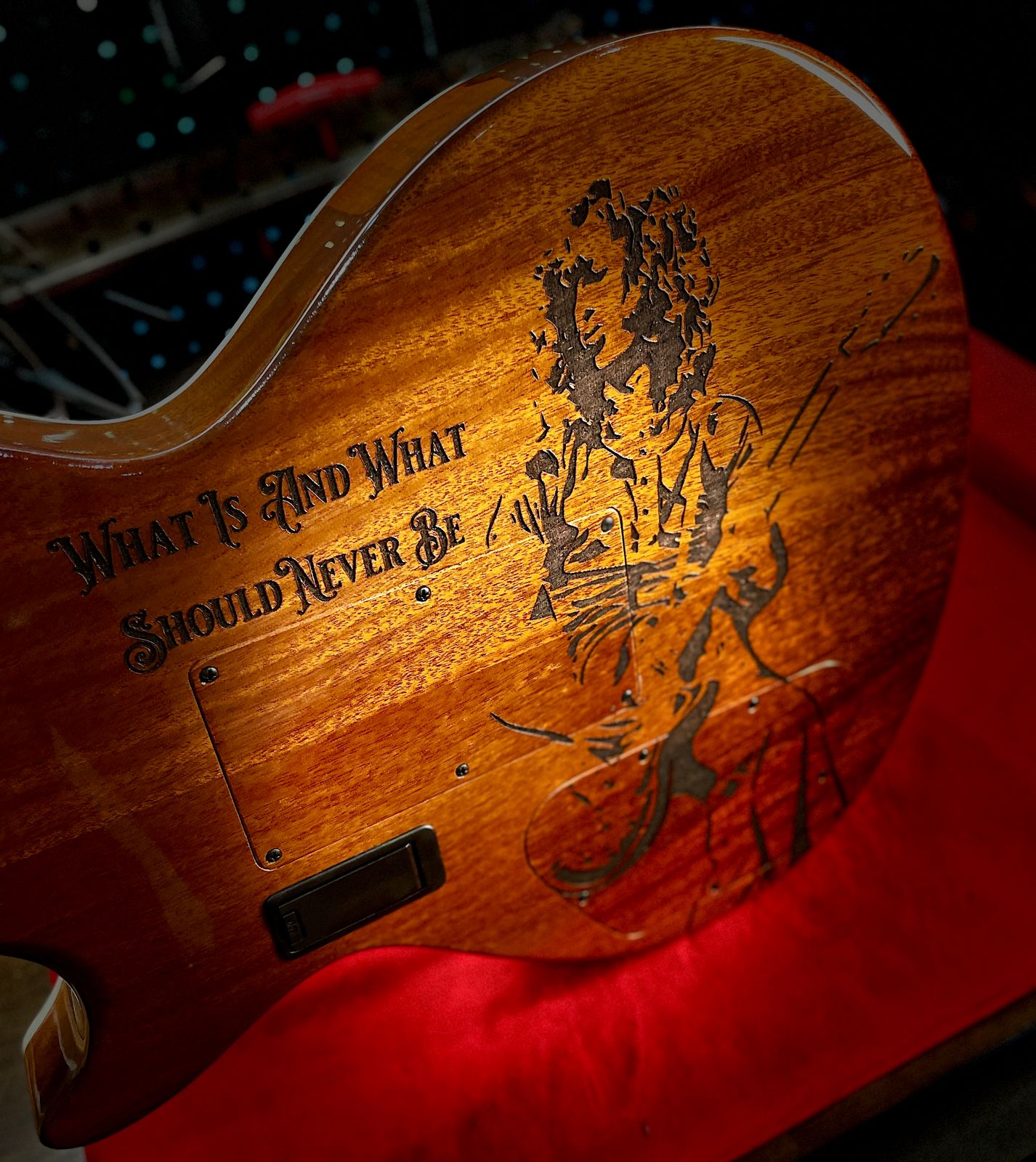

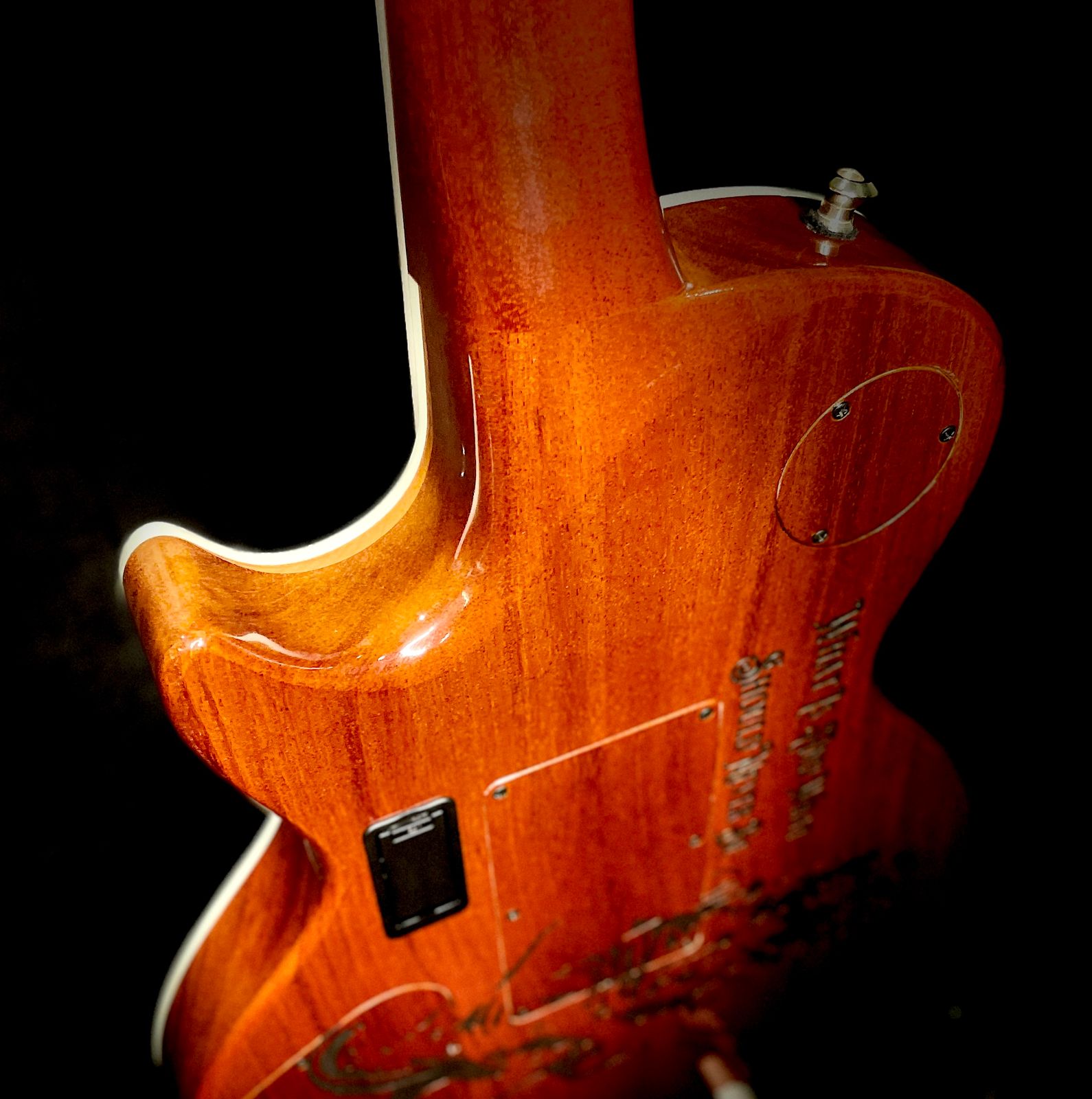

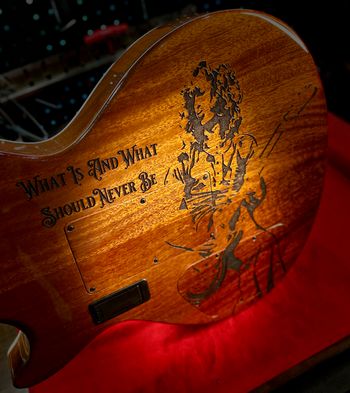

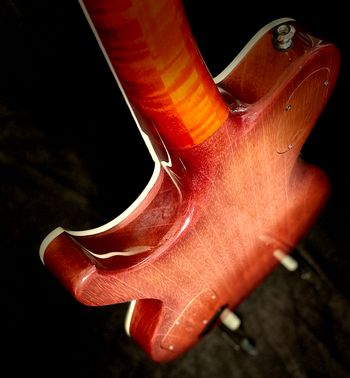

BODY: Mahogany with Jimmy Page Laser Etching on Back
TOP: Highly Figured Flame Maple
NECK: Mahogany

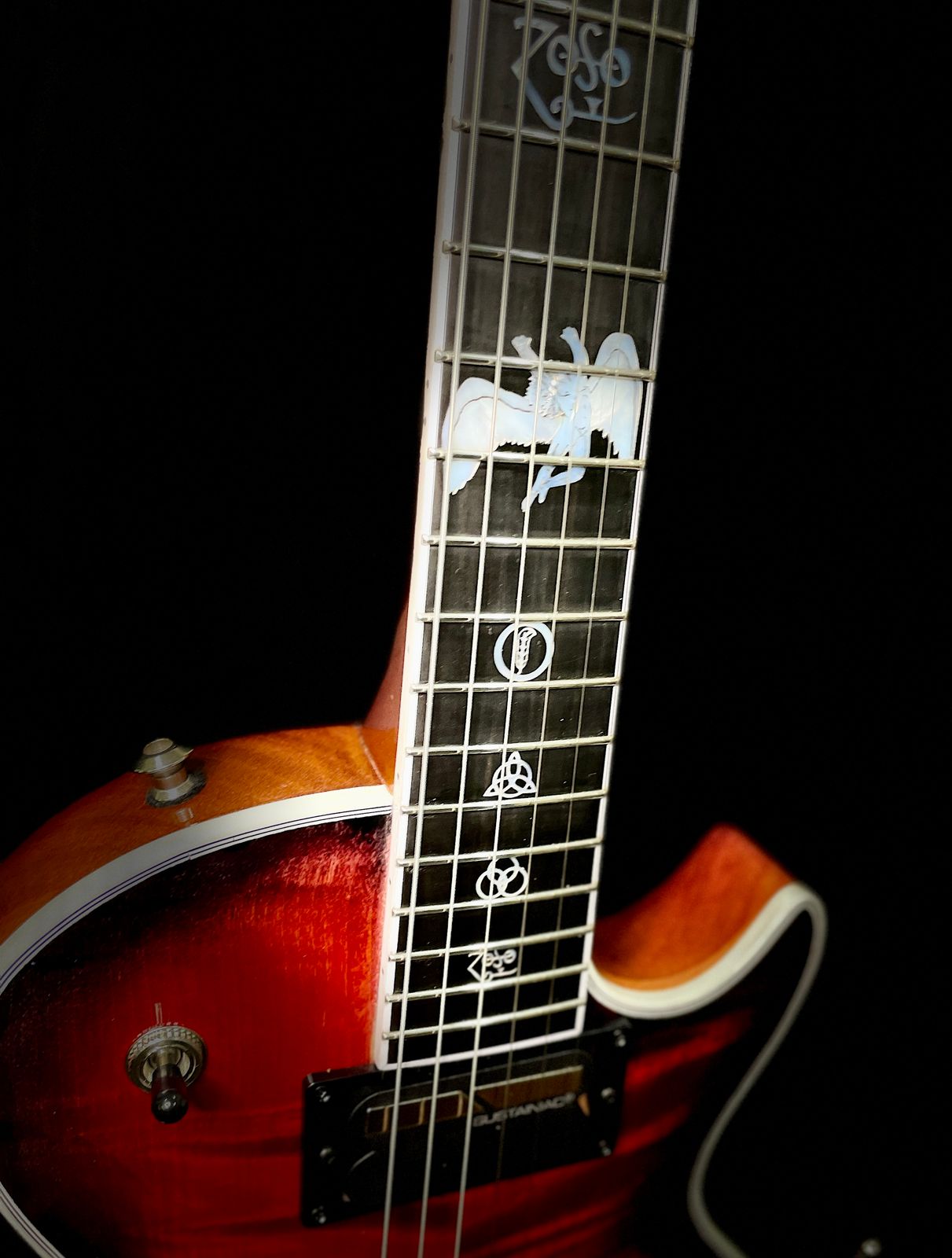

FRETBOARD: Ebony with Zeppelin Inspired Inlays
SCALE: 25”
NUT WIDTH: 1-11/16”
FRETBOARD RADIUS: 12”
FRETS: 24 Medium Stainless Steel Jescar

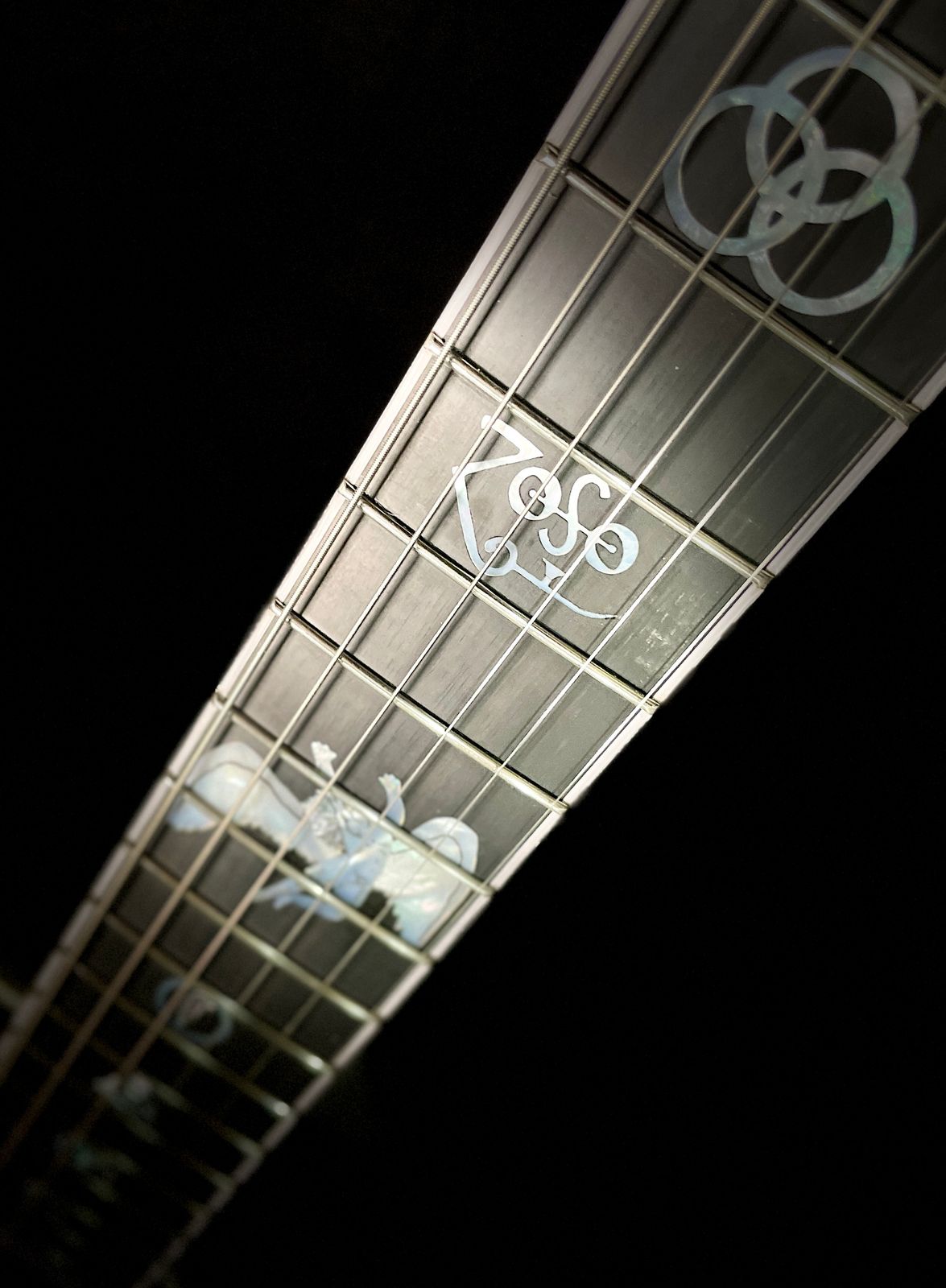

INLAY: Led Zeppelin Symbols
BRIDGE: Original Floyd Rose
PICKUPS: Seymore Duncan SH-11 Bridge, Sustainiac Neck
SWITCH: 3-Way Toggle, Push/Pull Neck and Bridge Coil-Tap, Push/Pull and Rotate for Sustainiac On/Off and Mode Select
TUNERS: Gotoh 3x3
FINISH: Black Cherry Burst, Nitrocellulose Lacquer

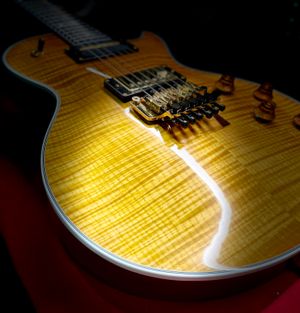

Christian
BODY: Mahogany
TOP: Highly Figured Straight Grain Flame Maple
NECK: Mahogany
FRETBOARD: Ebony with Mother of Pearl Split-Block Inlay
SCALE: 25”
NUT WIDTH: 1-5/8”
FRETBOARD RADIUS: 12”
FRETS: 24 Medium Stainless Steel Jescar
BRIDGE: Original Floyd Rose (Gold)
PICKUPS: Seymore Duncan SH-11 Bridge, Sustainiac Neck
SWITCH: 3-Way Toggle, Push/Pull Neck and Bridge Coil-Tap, Push/Pull and Rotate for Sustainiac On/Off and Mode Select
TUNERS: Gotoh 3x3 (Gold)
FINISH: Amber, Nitrocellulose Lacquer

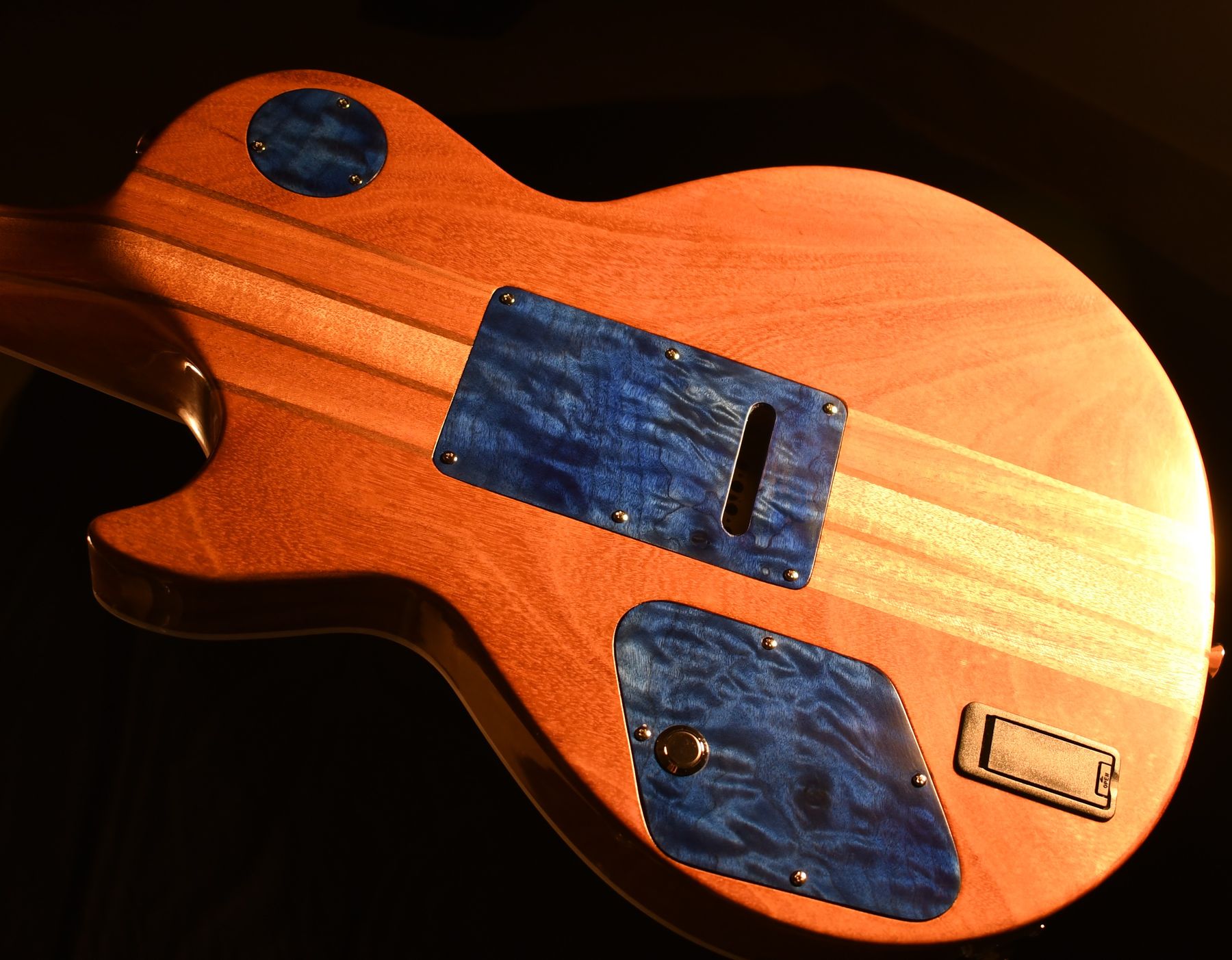

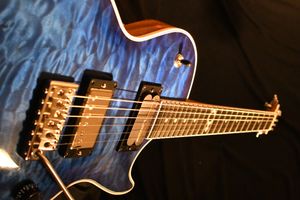

Ocean Lights
BODY/NECK: 5-Piece Mahogany and Walnut Neck-Thru, Mahogany Wings
HEAD: Ebony, White Binding, MoP Logo Inlay
TOP: Quilted Maple with White & Black Binding

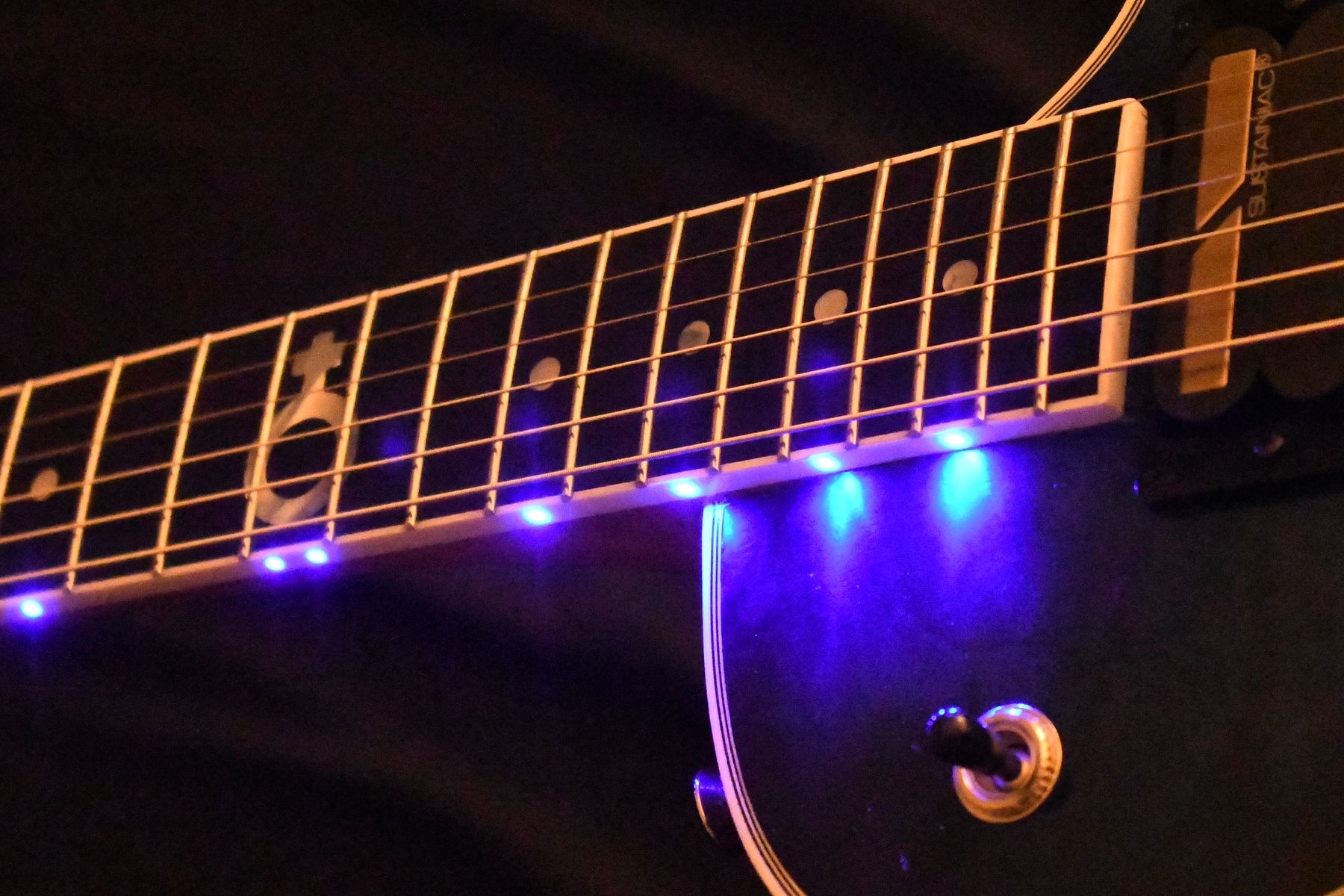

FRETBOARD: Ebony, White Binding, Blue LED Side Dots
SCALE: 25”
NUT WIDTH: 1-5/8”
FRETBOARD RADIUS: 12”
FRETS: 22 Medium Stainless Steel Jescar
INLAY: MoP Female Symbol, MoP Dot Markers, MoP Truss Cover Initials
BRIDGE: John Mann Vibrato System
PICKUPS: Seymour Duncan SH-11, Sustainiac System
SWITCH: 3-Way Toggle
CONTROLS: 2 Volume, 2 Tone (push/pull on tone for single-coil mode, toggle selectors for sustainiac control). Rear selector to turn LEDs on/off.
TUNERS: Schaller Locking 3x3
FINISH: Transparent Blue with Edge Shading, Nitrocellulose Lacquer

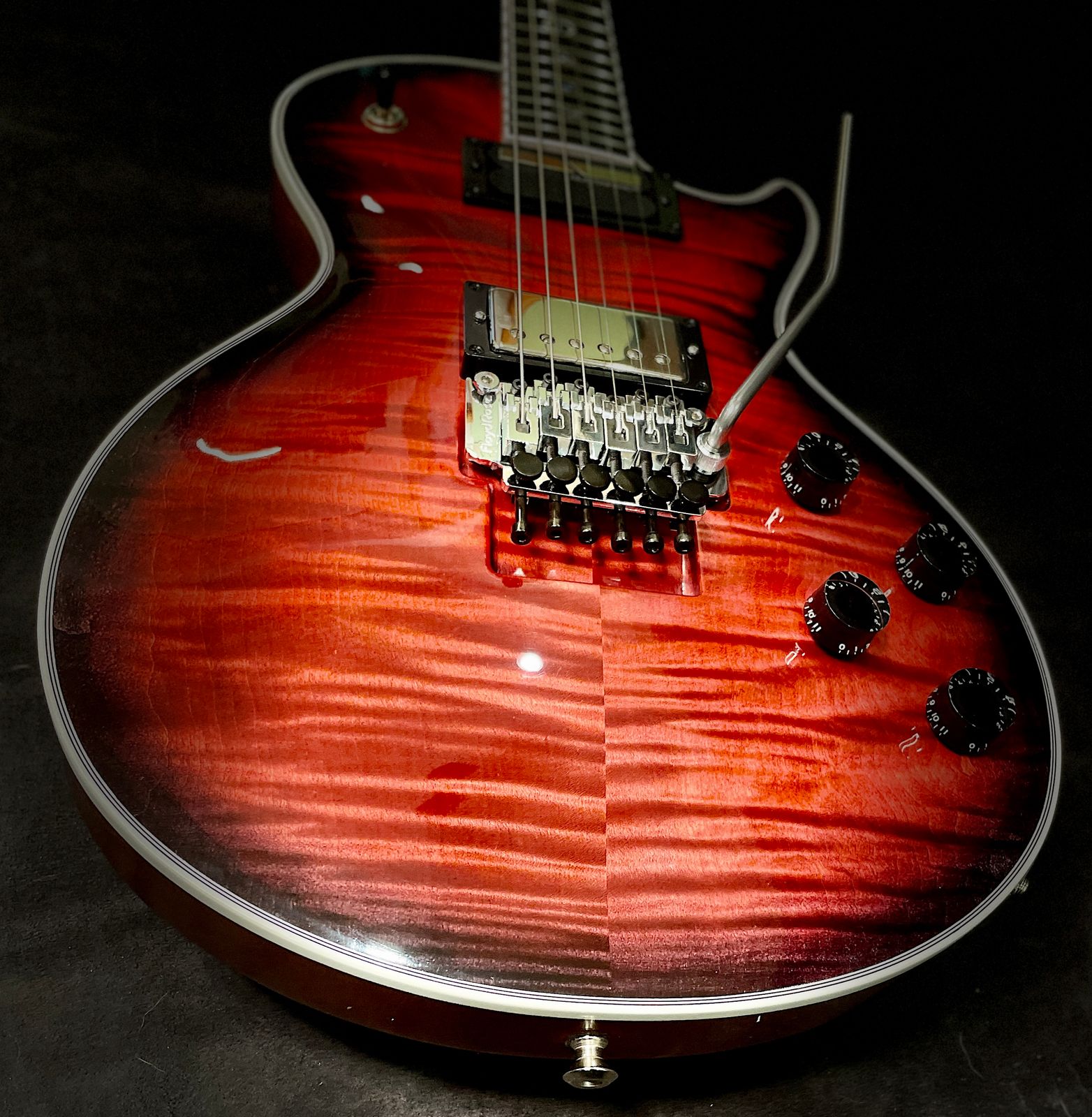

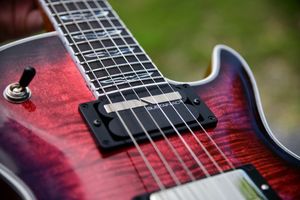

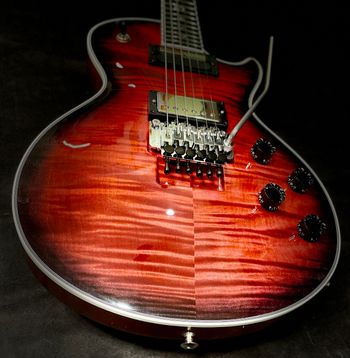

Red Baron
BODY: Mahogany
TOP: Figured Flame Maple
NECK: Mahogany
FRETBOARD: Ebony
SCALE: 25”
NUT WIDTH: 1.6875”
FRETBOARD RADIUS: 12”
FRETS: 24 Medium Stainless Steel Jescar
INLAY: Airplanes & Pilot Wings
BRIDGE: Original Floyd Rose
PICKUPS: Seymore Duncan SH-11 Bridge, Sustainiac Neck
SWITCH: 3-Way Toggle, Sustainiac On/Off & Mode
TUNERS: Schaller 3x3
FINISH: Black Cherry Burst, Nitrocellulose Lacquer
